Cold Heat Resistant Anti Corrosion 1.78mm SIL Silicone O Ring
Cold Heat Resistant Anti Corrosion 1.78mm SIL Silicone O Ring
Cold Heat Resistant Anti Corrosion 1.78mm SIL Silicone O Ring
Cold Heat Resistant Anti Corrosion 1.78mm SIL Silicone O Ring
Specifications
Brand Name :
ZIQUN
Model Number :
SIL Silicone Rubber o Ring seal
Certification :
ISO9001, ROHS
Place of Origin :
guangzhou,china
MOQ :
100PCS
Price :
Negotiable
Payment Terms :
Western Union, MoneyGram, T/T, D/P, D/A, L/C
Supply Ability :
100PCS/7Days
Delivery Time :
15-40Work days
Packaging Details :
The default is ZIQUN brand packaging, if you have special packaging needs, please contact our company, we will provide you with the best service.
Product Name :
SIL Silicone rubber o ring
Material :
SIL Silicone rubber
Item :
Rubber gasket
Oring Types :
Customized oring
Standard :
Oring As The Customer's Requirement
Feature property :
Non-toxic; acid and alkaline resistant;shock absorption, etc.
Feature :
Oil resistance, durable,dust-proof
Technology :
Extrusion Molding
Name :
Small Rubber O-Ring/White Silicone Seal Ring/Small Oring
Description

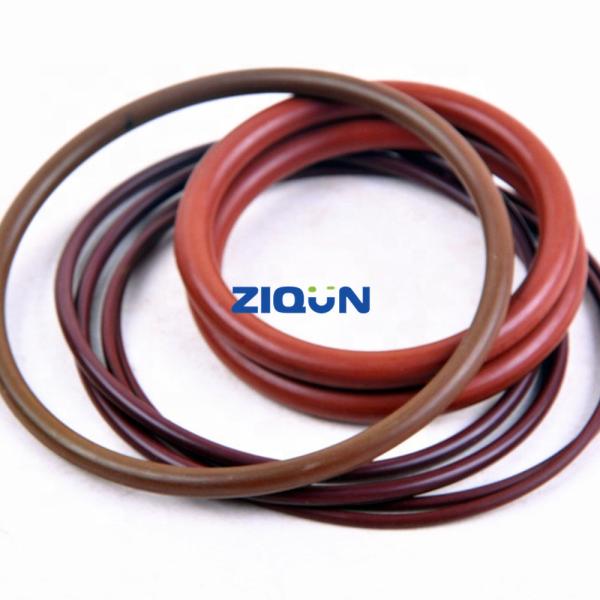

Cold Heat Resistant Anti Corrosion 1.78mm SIL Silicone O Ring

SIL Silicone Rubber o Ring seal Resistance to cold and heat Anti-corrosion insulation High toughness O rings

(Silicone rubber) The main chain of silica gel is formed by combining silicon (-si-o-si). It has excellent heat resistance, cold resistance, ozone resistance and atmospheric aging resistance. Has good electrical insulation properties. The tensile strength is worse than general rubber and it has no oil resistance.

·After formulating, the tensile strength can reach 1500PSI and the tear resistance can reach 88LBS

·Good elasticity and good compression distortion

·Good resistance to neutral solvents

·Excellent heat resistance

·Excellent cold resistance

·Excellent resistance to ozone and oxide erosion

·Excellent electrical insulation performance

·Insulation, good heat dissipation

· Seals or rubber parts used in the household appliance industry, such as electric kettles, electric irons, and microwave ovens.
· Seals or rubber parts in the electronics industry, such as mobile phone keys, shock absorbers in DVDs, and seals in cable joints.

· Seals on all kinds of articles that are in contact with the human body, such as kettles, drinking fountains, etc.

The Relations of O Ring between Hardness and Working Pressure KG/CM2(mm)
Specification
Hardness
35
70
105
140
175
210
350
1.78mm
70
0.15
0.10
0.05
80
0.20
0.15
0.10
0.05
0.03
90
0.25
0.20
0.13
0.10
0.08
0.05
0.03
2.62mm
70
0.18
0.13
0.08
80
0.25
0.18
0.13
0.08
0.04
90
0.30
0.25
0.18
0.13
0.10
0.08
0.04
3.53mm
70
0.20
0.15
0.10
80
0.30
0.20
0.15
0.10
0.05
90
0.40
0.30
0.20
0.15
0.13
0.10
0.05
5.34mm
70
0.25
0.18
0.13
80
0.35
0.25
0.18
0.13
0.06
90
0.45
0.35
0.25
0.18
0.15
0.13
0.06
7.00mm
70
0.30
0.20
0.15
80
0.40
0.30
0.20
0.15
0.07
90
0.50
0.40
0.30
0.20
0.18
0.15
0.07
CS Comparison Table
Standard/CS(mm)
O Ring Size Reference
Mould
C92
1.8/2.65/3.55/5.3/7.0
Complete
AS568
1.78/2.62/3.53/5.33/6.99
Complete
JIS2401
P:1.9/2.4/3.5/5.7/8.4
G:3.1/5.7
Complete
R
1.9/2.7/3.6/5.33/6.99
Complete
DIN3771
1.8/2.65/3.55/5.3/7.0
Complete
BS4518
1.6/2.4/3.0/5.7/8.4
Complete

Material

silicone nbr hnbr

Size

oring as customed sizes.

The biggest diameter we can make 1800mm.

Color

oring As client request or Pantone number

Tolerance

oring According to your request

Temperature

Common: -20~100 degrees;
NBR(-40~120°C),SILICONE(-50~250°C)

Special features

/working environment

Non-toxic; oil-resistant; heat resistant; abrasion-resistant; aging resistant; insulation;

acid and alkaline resistant; airtight; shock absorption, etc.

Certificates

ISO9001:2008, FDA, WRAS,REACH

Port

shenzhen or huangpu guangzhou

Delivery Time

15-45 days after confirmation of the sample or according to

customers’ order quantity normally

Supply Ability

30000 Pieces per week

Customer groups

/Application fields

Filling Machinery, Food Machinery, Oil exploitation,

Sanitary plumbing,Medical Machinery, Textile machinery, Mining machinery,

Exercise equipment etc.

Application

seal gas,water,oil.

Cold Heat Resistant Anti Corrosion 1.78mm SIL Silicone O Ring

Cold Heat Resistant Anti Corrosion 1.78mm SIL Silicone O Ring

Cold Heat Resistant Anti Corrosion 1.78mm SIL Silicone O Ring

Standard or Custom Silicone Rubber O rings
Nitrile rubber is the standard for most general applications.
Excellent resistance to petroleum based lubricants, hydraulic oils, gasoline, fuels and L.P. gases.
Temperature range -58 F to 248 F with intermittent service to 600 F.
Color: Black,Brown,White,Red
Durometer hardness 70

1 - The material selection of o ring

Material: NBR, FKM, EPDM, VMQ, FFKM, FFKM, CR etc.
2 - The hardness selection of o ring
The hardness of o ring is related to the pressure. The normal hardness is 70 shore a and the anti pressure property is 10mpa. 80 shore a is 15mpa. 90 shore a is 25mpa. Other hardness are also available.
3 - The size selection of o ring
Measure the ID and C/S and inform us so we can offer the price to you.
