Hardness HRC50 Wellhead Valves Positive Choke Valve For High Pressure Drilling
Hardness HRC50 Wellhead Valves Positive Choke Valve For High Pressure Drilling
Specifications
Brand Name :
Foowell
Certification :
API 6A , ISO 10423
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
Negotiation
Packaging Details :
Negotiation
Delivery Time :
Negotiation
Structure :
Choke Valve
Material :
AA,BB,CC,DD,EE,FF,HH
Size :
2-1/16”～7-1/16”
Pressure Range :
2000~10000 PSI
Working Temperature :
L~U (-46℃～+121℃)
Product Specification Level :
PSL 1~4
Performance Requirements :
PR1~2
Description

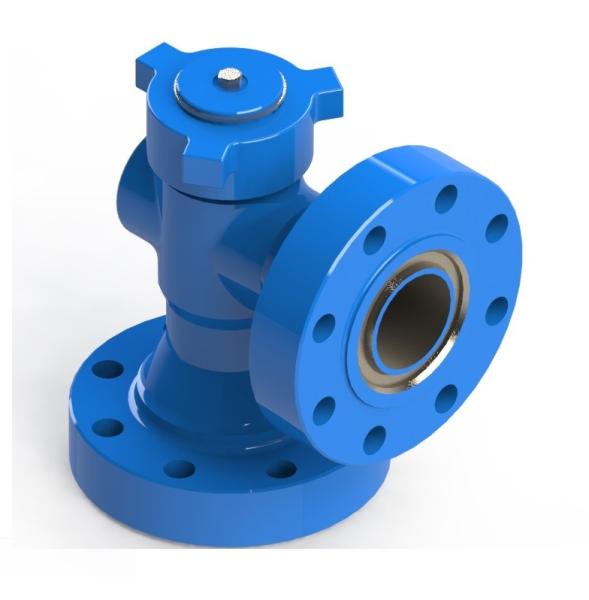

Wellhead Positive Choke Valve Throttle High Pressure Drilling

Product Overview :

Foowell Positive Choke Valve is suitable for high pressure drilling,well testing and production accompanied with sour gas or / and sand, our positive choke valve is designed and manufactured in accordance with API 6A standards .It is easy for operation and simple to maintain, reasonable price and low cost .

Design Features:

Carbide alloy is embedded into valve seat and element, make it more abrasion resistance;

Small adjustment torque and sensitive action;

Spray weld Ni60 in valve seat and stem contact surface,Hardness more than HRC50;

Technical Specification :

Design and Manufacturing: API 6A, ISO 10423

Flange Connection Dimension:API 6A, ISO 10423

Test and Inspection:API 6A, ISO 10423

Fire inspection : API 6FA

FAQ :

Q1. Do you have After-sales service ?

A1. Generally, the warranty period is 18 months after shipment or 12 months after commissioning, Whichever occurs first! While the customer made products could reach 30 years life span and guarantee.

Q2. Do you have OEM service?

A2. Yes,Variety products size ,quality and quantity can be customized according to your need.

Q3. How to proceed order in normal situation?

A3. General steps as bellow:

Firstly let us know your requirements or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms the design and places deposit for formal order.

Fourthly We arrange the production.

Q4. Which End User you have served?

A4. Such as BP, Shell, Total, PDO, Petronas,ADCO, Gazprom, CNPC, Sinopec, CNOOC, Samsung C & T, Samsung Engineer, Amec, SWCC, Sabic, Lukoil and so on.
