Bolted Bonnet Fully Welded Ball Valve Spherical Type Trunnion Ball Valve
Bolted Bonnet Fully Welded Ball Valve Spherical Type Trunnion Ball Valve
Specifications
Brand Name :
Foowell
Certification :
API 6D,ISO 14313,ISO 17292
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
Negotiation
Structure :
Ball Valve
Material :
Stainless Steel,Alloy Steel etc.
Nominal Diameter :
2"~ 56"
Pressure range :
Class 150~1500 Lb
Working temperature :
-101℃~+280℃
Valve End Connection :
BW
Operation :
Manual,Actuated
Packaging Details :
Negotiation
Delivery Time :
Negotiation
Description

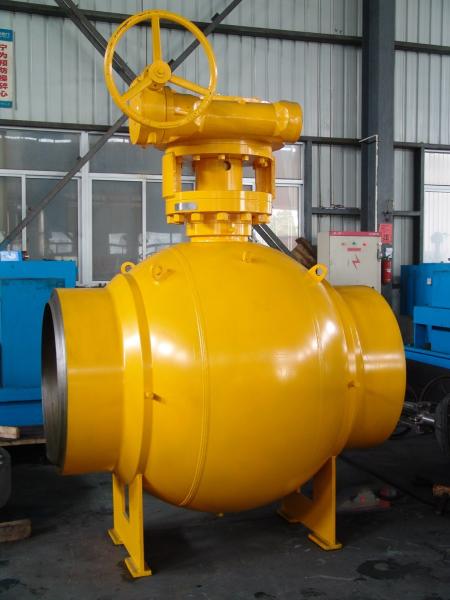

Fully Welded Trunnion Ball Valve Spherical Type

Product Overview :

Foowell Fully Welded Trunnion Ball Valve Spherical Type whose closing member (ball) is driven by the stem and rotates around the axis of the ball valve. In the pipeline is mainly used to cut off, distribution and change the flow direction of the medium, it only needs to rotate 90 degrees of operation and small torque can close tightly .

Design Features :

Bolted bonnet,side entry ,Trunnion mounted;

Fire-safe .Anti static and anti -blowout stem design;

Self -relieving seat effect function;

Seat function DBB,DIB-1,DIB-2;

Emergency injection;

Technical Specification:

Design Standard:API6D,ISO 14313

Face to Face Dimension :ASME B16.10

Butt Weld Ends :ASME B16.25

Test & Inspection Standard:API 598,API 6D

FAQ :

Q1. Do you have After-sales service ?

A1. Of course! Generally, the guarantee is 18 months after shipment or 12 months after commissioning, Whichever occurs first! While the customer made products could reach 30 years life span and guarantee.

Q2. Do you have OEM service?

A2. Yes,Variety products size ,quality and quantity can be customized according to your need.

Q3. How to proceed order in normal situation?

A3. General steps as bellow:

Firstly let us know your requirements or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms the design and places deposit for formal order.

Fourthly We arrange the production.

Q4. Which End User you have served?

A4. Such as BP, Shell, Total, PDO, Petronas,ADCO, Gazprom, CNPC, Sinopec, CNOOC, Samsung C & T, Samsung Engineer, Amec, SWCC, Sabic, Lukoil and so on.
