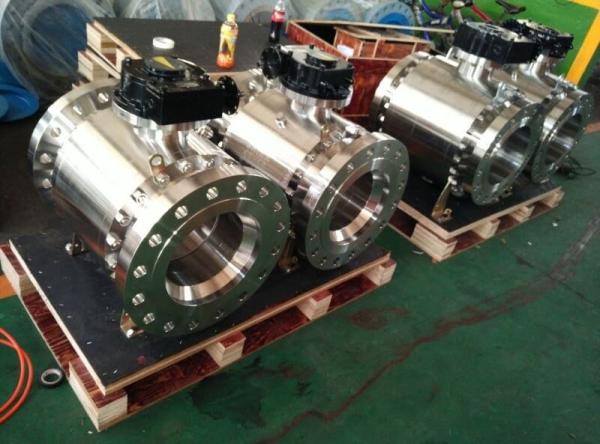

Trunnion Mounted Side Entry Ball Valve Anti Static And Anti Blowout Stem

Product Overview:

Foowell Side Entry Trunnion Ball Valve with two floating seats which are movable under the pressure of medium. Under the bottom of seats, seat pre-loading springs are positioned to ensure two floating seats can attach the ball’s surface tightly, other more, pressure of medium also can push seats to attach ball tightly to ensure sealing more reliable.

Design Features :

Simple structure with good sealing performance and small torque;

Full bore and reduced bore design with the minimum flow resistance;

Emergency sealant injection;

Cavity pressure self relief;

Independent ball and stem;

Low emission packing;

Fire safe, anti-static and anti-blowout stem design;

Valve seat function DBB, DIB-1, DIB-2;

Optional extended bonnet.

Technical Specification :

Design and Manufacturing: API 6D

Flange Ends Connection: ASME B16.5,ASME B16.47

Buttwelding Ends: ASME B16.25

Face to Face Dimension: ASME B16.10

Test&Inspection:API 598

FAQ :

Q1. Do you have After-sales service ?

A1. Of course! Generally, the guarantee is 18 months after shipment or 12 months after commissioning, Whichever occurs first! While the customer made products could reach 30 years life span and guarantee.

Q2. Do you have OEM service?

A2. Yes,Variety products size ,quality and quantity can be customized according to your need.

Q3. How to proceed order in normal situation?

A3. General steps as bellow:

Firstly let us know your requirements or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms the design and places deposit for formal order.

Fourthly We arrange the production.

Q4. Which End User you have served?

A4. Such as BP, Shell, Total, PDO, Petronas,ADCO, Gazprom, CNPC, Sinopec, CNOOC, Samsung C & T, Samsung Engineer, Amec, SWCC, Sabic, Lukoil and so on.
