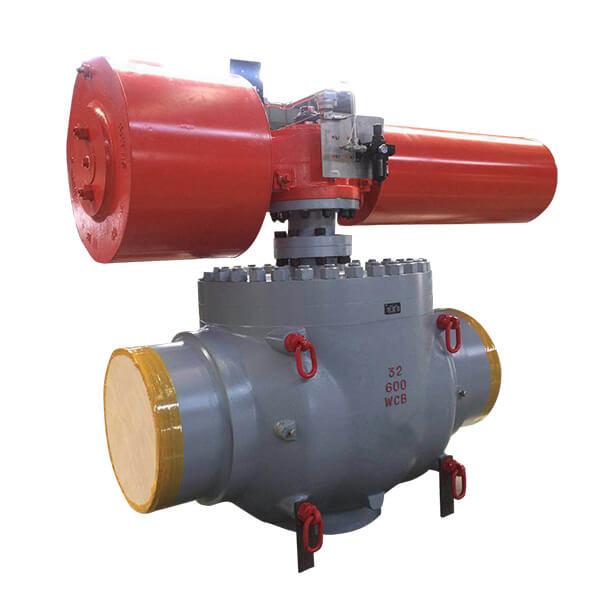

API 6D Casting Trunnion Top Entry Ball Valve Manual / Actuated Operation
API 6D Casting Trunnion Top Entry Ball Valve Manual / Actuated Operation
Specifications
Brand Name :
Foowell
Certification :
API 6D, API 6D, ASME B16.34
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Structure :
Ball Valve
Material :
Stainless Steel,Alloy Steel etc.
Nominal Diameter :
2"～60"
Pressure Range :
Class150～2500
Working Temperature :
-101℃～+280℃
Valve End Connection :
RF, RTJ,BW
Operation :
Manual,Actuated
Payment Terms :
Negotiation
Packaging Details :
Negotiation
Delivery Time :
Negotiation
Description

API Cast Trunnion Top Entry Ball Valve Maintenance on Line

Product Overview:

Foowell Cast Trunnion Top Entry Ball Valve has integral body design mounted pivot support.Ensure the effective sealing sealant entrant design under low pressure, can be used in emergency sealant, valve stem or valve seat sealing with unique valve seat retractable technology.This kind of valve are realize maintenance on line .

Design Features :

Self-Relieving Seat effect function;

Reliable sealing effect and Long Service life;

Compact and Simple structure ;

Good flow Adjusting Ability;

Fire-safe and Anti-static design ;

Technical Specification :

Design and Manufacturing: API 6D, API 6D, ASME B16.34

Flange Connection Dimension:ASME B16.5,ASME B16.47

Butt Weld Ends : ASME B16.25

Face to Face Dimension: ASME B16.10

Test and Inspection:API 598

FAQ :

Q1. Do you have After-sales service ?

A1. Of course! Generally, the guarantee is 18 months after shipment or 12 months after commissioning, Whichever occurs first! While the customer made products could reach 30 years life span and guarantee.

Q2. Do you have OEM service?

A2. Yes,Variety products size ,quality and quantity can be customized according to your need.

Q3. How to proceed order in normal situation?

A3. General steps as bellow:

Firstly let us know your requirements or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms the design and places deposit for formal order.

Fourthly We arrange the production.

Q4. Which End User you have served?

A4. Such as BP, Shell, Total, PDO, Petronas,ADCO, Gazprom, CNPC, Sinopec, CNOOC, Samsung C & T, Samsung Engineer, Amec, SWCC, Sabic, Lukoil and so on.
