GBU808 GBU 605 GBU606 GBU405 Bridge Rectifier 6A GBU1510 GBU1508
GBU808 GBU 605 GBU606 GBU405 Bridge Rectifier 6A GBU1510 GBU1508
GBU808 GBU 605 GBU606 GBU405 Bridge Rectifier 6A GBU1510 GBU1508
GBU808 GBU 605 GBU606 GBU405 Bridge Rectifier 6A GBU1510 GBU1508
Specifications
Brand Name :
trusTec
Model Number :
GBU606
Certification :
ROHS
Place of Origin :
China
MOQ :
1K PCS
Price :
Negotiable (EXW/FOB/CNF)
Payment Terms :
T/T
Supply Ability :
800KK PCS per month
Delivery Time :
10 work days fresh products
Packaging Details :
400 PCS per box, 2.4K PCS per carton.
Type :
Bridge Rectifier
Current :
6A
Peak repetitive reverse voltage :
600V
Ifsm :
175A
Operating junction temperature :
-55 to +150℃
Package :
GBU
Description
Silicon Bridge Rectifier Diode GBU405 GBU606 GBU605 GBU808 GBU1510 GBU1508
GBU SILICON BRIDGE RECTIFIERS
Reverse Voltage - 50 to 1000 Volts Forward Current - 2 to 35 Ampere
FEATURES
The plastic package carries Underwriters Laboratory
Flammability Classification 94V-0
Ideal for printed circuit boards
Low reverse leakage
High forward surge current capability
High temperature soldering guaranteed:
260 C/10 seconds,0.375”(9.5mm) lead length,
5 lbs. (2.3kg) tension
This series is UL recognized component
Glass passivated chip junction
MECHANICAL DATA
Case: Molded plastic body
Terminals: Plated leads solderable per MIL-STD-750,
Method 2026
Polarity: Polarity symbols marked on case
Mounting Position: Any
Weight:0.15 ounce, 4 grams

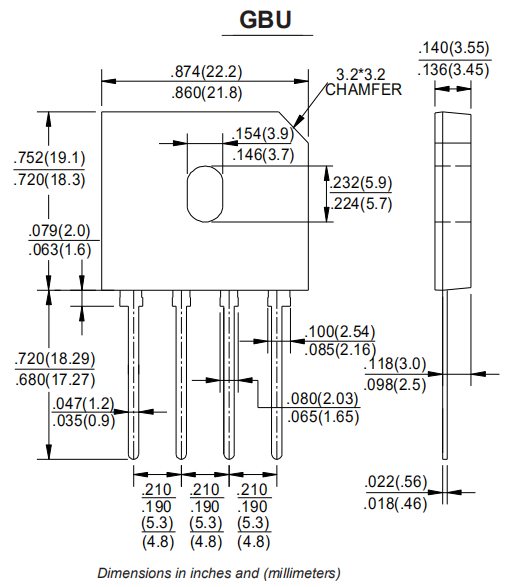

DIMENSION

GBU808 GBU 605 GBU606 GBU405 Bridge Rectifier 6A GBU1510 GBU1508

DATASHEET

Type Forward current Reverse voltage Forward voltage Reverse current Forward surge current
IAV VRRM VF @IF IR IFSM
A V V A uA A
GBU2005/GBU2A 2 50 1.1 2 5 60
GBU201/GBU2B 2 100 1.1 2 5 60
GBU202/GBU2D 2 200 1.1 2 5 60
GBU204/GBU2G 2 400 1.1 2 5 60
GBU206/GBU2J 2 600 1.1 2 5 60
GBU208/GBU2K 2 800 1.1 2 5 60
GBU210/GBU2M 2 1000 1.1 2 5 60
GBU4005/GBU4A 4 50 1.1 4 5 120
GBU401/GBU4B 4 100 1.1 4 5 120
GBU402/GBU4D 4 200 1.1 4 5 120
GBU404/GBU4G 4 400 1.1 4 5 120
GBU406/GBU4J 4 600 1.1 4 5 120
GBU408/GBU4K 4 800 1.1 4 5 120
GBU410/GBU4M 4 1000 1.1 4 5 120
GBU6005/GBU6A 6 50 1.1 6 5 175
GBU601/GBU6B 6 100 1.1 6 5 175
GBU602/GBU6D 6 200 1.1 6 5 175
GBU604/GBU6G 6 400 1.1 6 5 175
GBU606/GBU6J 6 600 1.1 6 5 175
GBU608/GBU6K 6 800 1.1 6 5 175
GBU610/GBU6M 6 1000 1.1 6 5 175
GBU8005/GBU8A 8 50 1.1 8 5 200
GBU801/GBU8B 8 100 1.1 8 5 200
GBU801/GBU8D 8 200 1.1 8 5 200
GBU801/GBU8G 8 400 1.1 8 5 200
GBU801/GBU8J 8 600 1.1 8 5 200
GBU801/GBU8K 8 800 1.1 8 5 200
GBU801/GBU8M 8 1000 1.1 8 5 200
GBU10005/GBU10A 10 50 1.1 5 10 250
GBU1001/GBU10B 10 100 1.1 5 10 250
GBU1002/GBU10D 10 200 1.1 5 10 250
GBU1004/GBU10G 10 400 1.1 5 10 250
GBU1006/GBU10J 10 600 1.1 5 10 250
GBU1008/GBU10K 10 800 1.1 5 10 250
GBU1010/GBU10M 10 1000 1.1 5 10 250
GBU15005/GBU15A 15 50 1.1 7.5 10 250
GBU1501/GBU15B 15 100 1.1 7.5 10 250
GBU1502/GBU15D 15 200 1.1 7.5 10 250
GBU1504/GBU15G 15 400 1.1 7.5 10 250
GBU1506/GBU15J 15 600 1.1 7.5 10 250
GBU1508/GBU15K 15 800 1.1 7.5 10 250
GBU1510/GBU15M 15 1000 1.1 7.5 10 250
GBU25005/GBU25A 25 50 1.1 12.5 10 350
GBU2501/GBU25B 25 100 1.1 12.5 10 350
GBU2502/GBU25D 25 200 1.1 12.5 10 350
GBU2504/GBU25G 25 400 1.1 12.5 10 350
GBU2506/GBU25J 25 600 1.1 12.5 10 350
GBU2508/GBU25K 25 800 1.1 12.5 10 350
GBU2510/GBU25M 25 1000 1.1 12.5 10 350
GBU35005/GBU35A 35 50 1.1 17.5 10 350
GBU3501/GBU35B 35 100 1.1 17.5 10 350
GBU3502/GBU35D 35 200 1.1 17.5 10 350
GBU3504/GBU35G 35 400 1.1 17.5 10 350
GBU3506/GBU35J 35 600 1.1 17.5 10 350
GBU3508/GBU35K 35 800 1.1 17.5 10 350
GBU3510/GBU35M 35 1000 1.1 17.5 10 350

ELECTRICAL CHARACTERISTICS

Ratings at 25 C ambient temperature unless otherwise specified.
Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.
SYMBOLS
 GBU6005 GBU601 GBU602 GBU604 GBU606 GBU608 GBU610
UNITS

GBU6A
GBU6B
GBU6D
GBU6G
GBU6J
GBU6K
GBU6M
Maximum repetitive peak reverse voltage
VRRM
 50 100 200 400 600 800 1000
Volts
Maximum RMS voltage
VRMS
 35 70 140 280 420 560 700
Volts
Maximum DC blocking voltage
VDC
 50 100 200 400 600 800 1000
Volts
Maximum average forward output rectified current
at TA=50 C(Note 2)
I(AV)

6
Amps
Peak forward surge current, 8.3ms single half sine-wave superimposed on rated load (JEDEC Method)
IFSM
 175
Amps
Rating for Fusing(t<8.3ms)
I²t
 120
A²s
Maximum instantaneous forward voltage drop per leg at 6.0A
VF
 1.1
Volts
Maximum DC reverse current TA=25℃
at rated DC blocking voltage TA=100℃
IR

5

500
uA
Typical Junction Capacitance (Note 1) CJ 80
pF
Typical Thermal Resistance (Note 2)
RθJA
 1.5 ℃/W
Operating temperature range
TJ
-55 to +150
 ℃
Storage temperature range
TSTG
-55 to +150
 ℃

NOTES:
1.Measured at 1.0 MHz and applied reverse voltage of 4.0 Volts.
2.Unit mounted on 75mm x 75mm x 1.6mm Cu Plate Heatsink
CHARACTERISTIC CURVES.
GBU808 GBU 605 GBU606 GBU405 Bridge Rectifier 6A GBU1510 GBU1508
GBU808 GBU 605 GBU606 GBU405 Bridge Rectifier 6A GBU1510 GBU1508
GBU808 GBU 605 GBU606 GBU405 Bridge Rectifier 6A GBU1510 GBU1508
GBU808 GBU 605 GBU606 GBU405 Bridge Rectifier 6A GBU1510 GBU1508
GBU808 GBU 605 GBU606 GBU405 Bridge Rectifier 6A GBU1510 GBU1508
GBU808 GBU 605 GBU606 GBU405 Bridge Rectifier 6A GBU1510 GBU1508
