15A 600V Ultra Fast Recovery Rectifier Diode MUR1560 Single Leg Tube Packing
15A 600V Ultra Fast Recovery Rectifier Diode MUR1560 Single Leg Tube Packing
15A 600V Ultra Fast Recovery Rectifier Diode MUR1560 Single Leg Tube Packing
15A 600V Ultra Fast Recovery Rectifier Diode MUR1560 Single Leg Tube Packing
15A 600V Ultra Fast Recovery Rectifier Diode MUR1560 Single Leg Tube Packing
15A 600V Ultra Fast Recovery Rectifier Diode MUR1560 Single Leg Tube Packing
15A 600V Ultra Fast Recovery Rectifier Diode MUR1560 Single Leg Tube Packing
15A 600V Ultra Fast Recovery Rectifier Diode MUR1560 Single Leg Tube Packing
15A 600V Ultra Fast Recovery Rectifier Diode MUR1560 Single Leg Tube Packing
15A 600V Ultra Fast Recovery Rectifier Diode MUR1560 Single Leg Tube Packing
Specifications
Brand Name :
trusTec
Model Number :
MUR1560
Certification :
ROHS
Place of Origin :
China
MOQ :
1K PCS
Price :
Negotiable (EXW/FOB/CNF)
Payment Terms :
T/T
Supply Ability :
800KK PCS per month
Delivery Time :
10 work days fresh products
Packaging Details :
50 PCS per tube, 1K PCS per box, 5K PCS per carton.
Material :
Silicon
Package :
TO-220AC
Trr :
35ns
Max. forward voltage :
0.98V
Max. forward current :
15A
Max. reverse voltage :
600V
Description

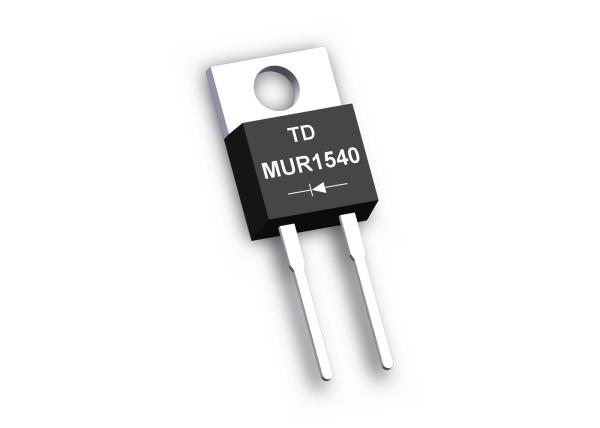

15A 600V Ultra Fast Recovery Rectifier Diode MUR1560 Single Leg Tube Packing

DIMENSIONS
15A 600V Ultra Fast Recovery Rectifier Diode MUR1560 Single Leg Tube Packing

Symbol

Test Conditions

 Maximum Ratings
MUR1520 MUR1540 MUR1560 Unit
IFRMS IFAVM

TVJ=TVJM

TC=115oC; rectangular, d=0.5

22

15

22

15

22

15


A
IFRM tp<10us; rep. rating, pulse width limited by TVJM 170 170 170

IFSM

 TVJ=45oC t=10ms (50Hz), sine t=8.3ms (60Hz), sine

250

270

230

250

210

230


A
TVJ=150 C t=10ms(50Hz), sine 190 170 150
t=8.3ms(60Hz), sine 210 190 170
TVJ=45oC t=10ms (50Hz), sine t=8.3ms (60Hz), sine 50 50 50
I2t 50 50 50 A2s
TVJ=150 C t=10ms(50Hz), sine 36 36 36
t=8.3ms(60Hz), sine 37 37 37
TVJ TVJM

-40...+150

150

oC
Tstg -40...+150
Ptot TC=25oC 80 W
Md Mounting torque 0.4...0.6 Nm
Weight 2 g

Symbol

Test Conditions

 Characteristic Values
MUR1520 MUR1540 MUR1560 Unit
IR TVJ=25oC; VR=VRRM TVJ=25oC; VR=0.8.VRRM TVJ=125oC; VR=0.8.VRRM

20

10

1.5

20

10

1.5

20

10

1.5

uA

uA

mA
VF

IF=16A; TVJ =150oC

TVJ=25oC

1.0

1.2

1.2

1.4

1.3

1.6

 V
VTO For power-loss calculations only 0.78 0.85 0.98 V
rT TVJ=TVJM 25.5 27.8 28.7 m
RthJC 2.5
RthCK 0.5 K/W
RthJA 60
trr IF=1A; -di/dt=50A/us; VR=30V; TVJ=25oC 35 ns
IRM VR=350V; IF=8A; -diF/dt=64A/us; L<_0.05uH; TVJ=100oC 2.8 A

FEATURES
International standard package JEDEC TO-220AC
Planar passivated chips
Very short recovery time
Extremely low switching losses
Low IRM-values
APPLICATIONS
Antiparallel diode for high frequency switching devices
Antisaturation diode
Snubber diode
Free wheeling diode in converters and motor control circuits
Rectifiers in switch mode power supplies (SMPS)
Inductive heating and melting
Uninterruptible power supplies (UPS)
Ultrasonic cleaners and welders
