MBR1045 MBR10100 MBR1060 Schottky Diode 10A 60V Fast Recovery Diode Schottky To 220
MBR1045 MBR10100 MBR1060 Schottky Diode 10A 60V Fast Recovery Diode Schottky To 220
MBR1045 MBR10100 MBR1060 Schottky Diode 10A 60V Fast Recovery Diode Schottky To 220
MBR1045 MBR10100 MBR1060 Schottky Diode 10A 60V Fast Recovery Diode Schottky To 220
MBR1045 MBR10100 MBR1060 Schottky Diode 10A 60V Fast Recovery Diode Schottky To 220
MBR1045 MBR10100 MBR1060 Schottky Diode 10A 60V Fast Recovery Diode Schottky To 220
MBR1045 MBR10100 MBR1060 Schottky Diode 10A 60V Fast Recovery Diode Schottky To 220
MBR1045 MBR10100 MBR1060 Schottky Diode 10A 60V Fast Recovery Diode Schottky To 220
Specifications
Brand Name :
trusTec
Model Number :
MBR1060
Certification :
ROHS
Place of Origin :
China
MOQ :
1K PCS
Price :
Negotiable (EXW/FOB/CNF)
Payment Terms :
T/T
Supply Ability :
800KK PCS per month
Delivery Time :
10 work days fresh products
Packaging Details :
50 PCS per tube, 1K PCS per box, 5K PCS per carton.
Max. reverse voltage :
60V
Max. forward current :
10A
Max. forward voltage :
0.8V
Package :
TO-220AC
Type :
Schottky Diode
Max. reverse current :
0.1mA
Description

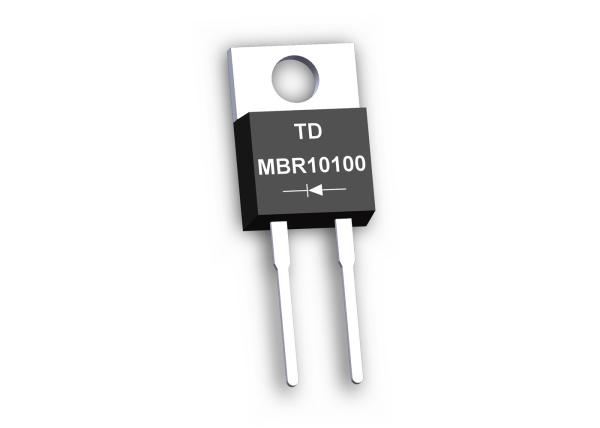

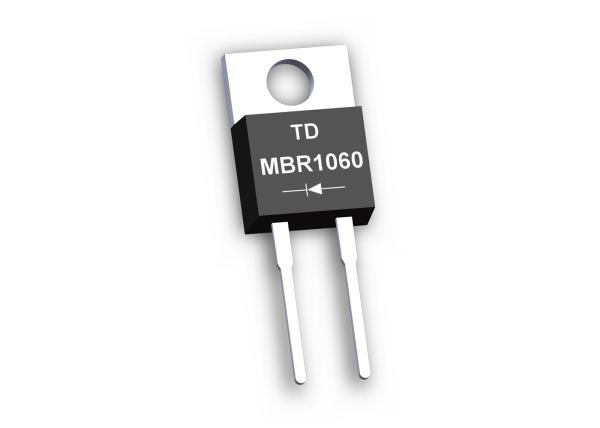

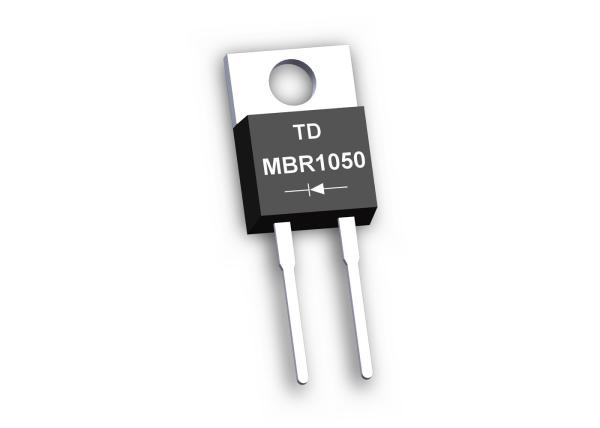

TO-220 Low Power Loss Schottky Barrier Rectifier Diode 10A MBR1045 MBR1060 MBR10100
MBR1020 THRU MBR10200
SCHOTTKY BARRIER RECTIFIERS
Reverse Voltage - 20 to 200 Volts Forward Current - 10 Ampere
MBR1045 MBR10100 MBR1060 Schottky Diode 10A 60V Fast Recovery Diode Schottky To 220

Product Features

Plastic material used carries Underwriters Laboratory Classifications 94V-0
Metal silicon junction, majority carrier conduction
Low power loss, high efficiency
High current capability, low forward voltage drop
High surge capability
For use in low voltage, high frequency inverters, free wheeling, and polarity protection applications
Guardring for overvoltage protection
High temperature soldering guaranteed: 260℃/10 seconds,0.25”(6.35mm)from case
Mechanical Data
Case: JEDEC TO-220AC molded plastic
Terminals: Leads, solderable per MIL-STD-750,
Method 2026
Polarity: As marked
Mounting Position: Any
Weight:0.08 ounce, 2.24 grams
MAXIMUM RATINGS
Ratings at 25 C ambient temperature unless otherwise specified.
Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.
SYMBOLS
MBR
1020

MBR

1030

MBR

1040

MBR

1050

MBR

1060

MBR

1070

MBR

1080

MBR

1090

MBR

10100

MBR

10150

MBR

10200

 UNITS
Maximum repetitive peak reverse voltage VRRM 20 30 40 50 60 70 80 90 100 150 200 VOLTS
Maximum RMS voltage VRMS 14 21 28 35 42 49 56 63 70 105 140 VOLTS
Maximum DC blocking voltage VDC 20 30 40 50 60 70 80 90 100 150 200 VOLTS
Maximum average forward rectified current 0.375”(9.5mm) lead length(see fig.1) I(AV) 10.0 Amps
Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method)

IFSM

 150.0

Amps
Maximum instantaneous forward voltage at 5.0A VF 0.65 0.75 0.85 0.95 Volts

Maximum DC reverse current TA=25℃

at rated DC blocking voltage TA=100℃

 IR 0.2 1 mA
15 20
Typical junction capacitance (NOTE 1) CJ 550 450 pF
Typical thermal resistance (NOTE 2) RθJC 2 ℃/W
Operating junction temperature range TJ, -65 to +150 ℃
Storage temperature range TSTG -65 to +150 ℃

Note:1.Measured at 1MHz and applied reverse voltage of 4.0V D.C.
2.Thermal resistance from junction to case.

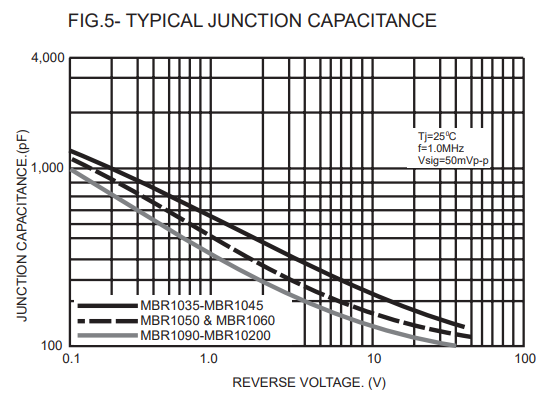

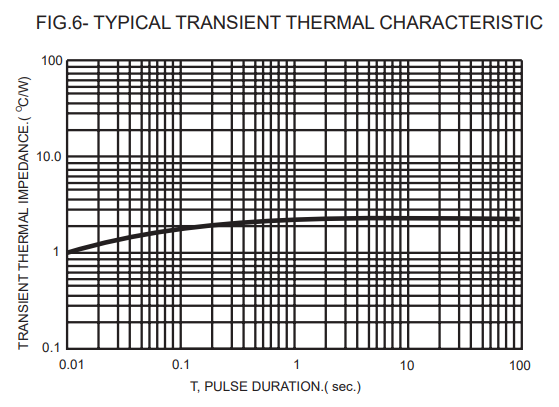

CHARACTERISTIC CURVES
MBR1045 MBR10100 MBR1060 Schottky Diode 10A 60V Fast Recovery Diode Schottky To 220
MBR1045 MBR10100 MBR1060 Schottky Diode 10A 60V Fast Recovery Diode Schottky To 220
MBR1045 MBR10100 MBR1060 Schottky Diode 10A 60V Fast Recovery Diode Schottky To 220
MBR1045 MBR10100 MBR1060 Schottky Diode 10A 60V Fast Recovery Diode Schottky To 220
MBR1045 MBR10100 MBR1060 Schottky Diode 10A 60V Fast Recovery Diode Schottky To 220
MBR1045 MBR10100 MBR1060 Schottky Diode 10A 60V Fast Recovery Diode Schottky To 220
