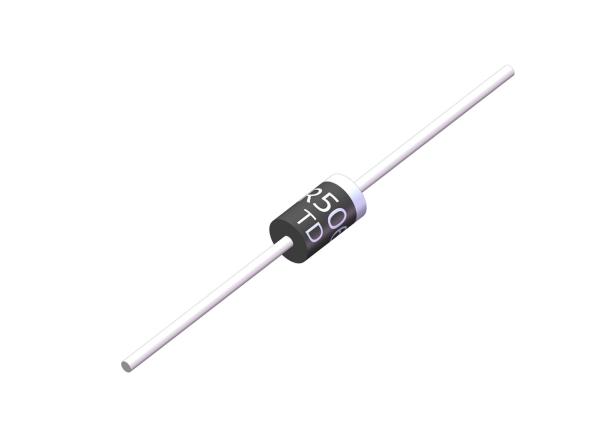

5A 100V Schottky Barrier Diode SR520 SR540 SR560 SR506 SR5100 SR510 SR5010 SR5150 SR5200
5A 100V Schottky Barrier Diode SR520 SR540 SR560 SR506 SR5100 SR510 SR5010 SR5150 SR5200
5A 100V Schottky Barrier Diode SR520 SR540 SR560 SR506 SR5100 SR510 SR5010 SR5150 SR5200
5A 100V Schottky Barrier Diode SR520 SR540 SR560 SR506 SR5100 SR510 SR5010 SR5150 SR5200
5A 100V Schottky Barrier Diode SR520 SR540 SR560 SR506 SR5100 SR510 SR5010 SR5150 SR5200
5A 100V Schottky Barrier Diode SR520 SR540 SR560 SR506 SR5100 SR510 SR5010 SR5150 SR5200
5A 100V Schottky Barrier Diode SR520 SR540 SR560 SR506 SR5100 SR510 SR5010 SR5150 SR5200
5A 100V Schottky Barrier Diode SR520 SR540 SR560 SR506 SR5100 SR510 SR5010 SR5150 SR5200
5A 100V Schottky Barrier Diode SR520 SR540 SR560 SR506 SR5100 SR510 SR5010 SR5150 SR5200
5A 100V Schottky Barrier Diode SR520 SR540 SR560 SR506 SR5100 SR510 SR5010 SR5150 SR5200
Specifications
Brand Name :
trusTec
Model Number :
SR5100
Certification :
ROHS
Place of Origin :
China
MOQ :
1K PCS
Price :
Negotiable (EXW/FOB/CNF)
Payment Terms :
T/T
Supply Ability :
800KK PCS per month
Delivery Time :
10 work days fresh products
Packaging Details :
1K PCS per tape & box, 10K PCS per carton.
Type :
Schottky Diode
Package type :
Through Hole
Package :
DO-27
Max. forward current :
5A
Max. reverse voltage :
100V
Max. forward voltage :
0.85V
Max. reverse current :
0.5mA
Ifsm :
150A
Description
Schottky Barrier Rectifier Diode SR520 SR540 SR560 SR506 SR5100 SR510 SR5010 SR5150 SR5200
SR520 THRU SR5200
SCHOTTKY BARRIER RECTIFIERS
Reverse Voltage - 50 to 1000 Volts Forward Current - 5 Ampere
MECHANICAL DATA
Case: JEDEC DO-201AD molded plastic body
Terminals: Plated axial leads, solderable per MIL-STD-750,
Method 2026
Polarity: Color band denotes cathode end
Mounting Position: Any
Weight:0.04 ounce, 1.10 grams

Product Drawing

5A 100V Schottky Barrier Diode SR520 SR540 SR560 SR506 SR5100 SR510 SR5010 SR5150 SR5200

MAXIMUM RATINGS
Ratings at 25 C ambient temperature unless otherwise specified.
Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.
SYMBOLS SB 520 SB 530 SB 540 SB 550 SB 560 SB 570 SB 580 SB 590 SB 5100 SB 5150 SB 5200 UNITS
Maximum repetitive peak reverse voltage VRRM 20 30 40 50 60 70 80 90 100 150 200 VOLTS
Maximum RMS voltage VRMS 14 21 28 35 42 49 56 63 70 105 140 VOLTS
Maximum DC blocking voltage VDC 20 30 40 50 60 70 80 90 100 150 200 VOLTS
Maximum average forward rectified current 0.375”(9.5mm) lead length(see fig.1) I(AV) 5.0 Amps
Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method)

IFSM

 150.0

Amps
Maximum instantaneous forward voltage at 5.0A VF 0.55 0.70 0.85 0.95 Volts

Maximum DC reverse current TA=25℃

at rated DC blocking voltage TA=100℃

 IR 0.5 0.2 mA
20.0 10.0 2.0
Typical junction capacitance (NOTE 1) CJ 500 400 pF
Typical thermal resistance (NOTE 2) RqJA 25.0 ℃/W
Operating junction temperature range TJ, -65 to +150 ℃
Storage temperature range TSTG -65 to +150 ℃

Note:1.Measured at 1MHz and applied reverse voltage of 4.0V D.C.
2.Thermal resistance from junction to ambient at 0.375”(9.5mm)lead length,P.C.B. mounted

FEATURES
The plastic package carries Underwriters Laboratory
Flammability Classification 94V-0
Metal silicon junction,majority carrier conduction
Low power loss,high efficiency
High forward surge current capability
High temperature soldering guaranteed:
260 C/10 seconds,0.375”(9.5mm) lead length,
5 lbs. (2.3kg) tension
Characteristic Curves
5A 100V Schottky Barrier Diode SR520 SR540 SR560 SR506 SR5100 SR510 SR5010 SR5150 SR5200
5A 100V Schottky Barrier Diode SR520 SR540 SR560 SR506 SR5100 SR510 SR5010 SR5150 SR5200
5A 100V Schottky Barrier Diode SR520 SR540 SR560 SR506 SR5100 SR510 SR5010 SR5150 SR5200
5A 100V Schottky Barrier Diode SR520 SR540 SR560 SR506 SR5100 SR510 SR5010 SR5150 SR5200
5A 100V Schottky Barrier Diode SR520 SR540 SR560 SR506 SR5100 SR510 SR5010 SR5150 SR5200
5A 100V Schottky Barrier Diode SR520 SR540 SR560 SR506 SR5100 SR510 SR5010 SR5150 SR5200
