Specifications
Brand Name :
trusTec
Model Number :
RS2M
Certification :
ROHS
Place of Origin :
China
MOQ :
3K PCS
Price :
Negotiable (EXW/FOB/CNF)
Payment Terms :
T/T
Supply Ability :
800KK PCS per month
Delivery Time :
10 work days fresh products
Packaging Details :
3K PCS per tape & reel, 48K PCS per carton.
Type :
SMD Fast Recovery Diode
Package Type :
Surface Mount
Max. Reverse Voltage :
1000V
Max. Forward Current :
2A
Max. Reverse Recovery Time :
500ns
Forward Surge Current :
50A
Package :
SMB
Application :
high frequency rectifier
Description
Surface Mount Fast Recovery Rectifier Diode RS2M 2A 1000V SMB DO-214AA Package
RS2A THRU RS2M
SURFACE MOUNT FAST RECOVERY RECTIFIER
Reverse Voltage - 50 to 1000 Volts Forward Current - 2.0 Amperes

Type Io VRRM IFSM VF IR Trr Package Outline
(A) (V) (A) (V) IF(A) (uA) VR(V) (ns)
RS1A 1 50 30 1.3 1 5 50 150 SMA
RS1B 1 100 30 1.3 1 5 100 150 SMA
RS1D 1 200 30 1.3 1 5 200 150 SMA
RS1G 1 400 30 1.3 1 5 400 150 SMA
RS1J 1 600 30 1.3 1 5 600 250 SMA
RS1K 1 800 30 1.3 1 5 800 500 SMA
RS1M 1 1000 30 1.3 1 5 1000 500 SMA
RS2A 2 50 60 1.3 2 5 50 150 SMB
RS2B 2 100 60 1.3 2 5 100 150 SMB
RS2D 2 200 60 1.3 2 5 200 150 SMB
RS2G 2 400 60 1.3 2 5 400 150 SMB
RS2J 2 600 60 1.3 2 5 600 250 SMB
RS2K 2 800 60 1.3 2 5 800 500 SMB
RS2M 2 1000 60 1.3 2 5 1000 500 SMB
RS3A 3 50 90 1.3 3 5 50 150 SMC
RS3B 3 100 90 1.3 3 5 100 150 SMC
RS3D 3 200 90 1.3 3 5 200 150 SMC
RS3G 3 400 90 1.3 3 5 400 150 SMC
RS3J 3 600 90 1.3 3 5 600 250 SMC
RS3K 3 800 90 1.3 3 5 800 500 SMC
RS3M 3 1000 90 1.3 3 5 1000 500 SMC

1000V 2A Rs2m Smd Fast Recovery Diode Diode SMB DO 214AA Package

Mechanical Characteristics

Case: JEDEC DO-214AA molded plastic body
Terminals: Solder plated , solderable per MIL-STD-750,
Method 2026
Polarity: Color band denotes cathode end
Mounting Position: Any
Weight:0.005 ounce, 0.138 grams

Features

The plastic package carries Underwriters Laboratory
Flammability Classification 94V-0
For surface mounted applications
Fast switching for high efficiency
Low reverse leakage
Built-in strain relief,ideal for automated placement
High forward surge current capability
High temperature soldering guaranteed:
260 C/10 seconds at terminals
Electrical Characteristics
Ratings at 25 C ambient temperature unless otherwise specified.
Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.

SYMBOLS RS2A RS2B RS2D RS2G RS2J RS2K RS2M UNITS
Maximum repetitive peak reverse voltage
VRRM
 50 100 200 400 600 800 1000
VOLTS
Maximum RMS voltage
VRMS
 35 70 140 280 420 560 700
VOLTS
Maximum DC blocking voltage
VDC
 50 100 200 400 600 800 1000
VOLTS
Maximum average forward rectified current at TL=90 C
I(AV)
 2
Amps
Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method)
IFSM
 50
Amps
Maximum instantaneous forward voltage at 2.0A
VF
 1.3 VOLTS
Maximum DC reverse current TA=25
at rated DC blocking voltage TA=100℃
IR

5.0

50.0
µA
Maximum reverse recovery time (NOTE 1)
trr
 150 250 500
ns
Typical junction capacitance (NOTE 2)
CJ
 50.0
pF
Typical thermal resistance (NOTE 23)
RθJA
 20.0 ℃/W
Operating junction and storage temperature range
TJ,TSTG
 -65 to +150 ℃
Note:1.Reverse recovery condition IF=0.5A,IR=1.0A,Irr=0.25A
2.Measured at 1MHz and applied reverse voltage of 4.0V D.C.
3.P.C.B. mounted with 0.2x0.2”(5.0x5.0mm) copper pad areas

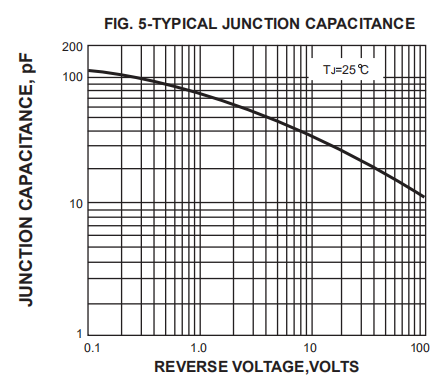

Characteristic Curves

1000V 2A Rs2m Smd Fast Recovery Diode Diode SMB DO 214AA Package

1000V 2A Rs2m Smd Fast Recovery Diode Diode SMB DO 214AA Package

1000V 2A Rs2m Smd Fast Recovery Diode Diode SMB DO 214AA Package

1000V 2A Rs2m Smd Fast Recovery Diode Diode SMB DO 214AA Package

1000V 2A Rs2m Smd Fast Recovery Diode Diode SMB DO 214AA Package

1000V 2A Rs2m Smd Fast Recovery Diode Diode SMB DO 214AA Package
