HER501 THRU HER508 High Efficiency Rectifier Diode 5A 400v 600v DO 201AD
HER501 THRU HER508 High Efficiency Rectifier Diode 5A 400v 600v DO 201AD
HER501 THRU HER508 High Efficiency Rectifier Diode 5A 400v 600v DO 201AD
HER501 THRU HER508 High Efficiency Rectifier Diode 5A 400v 600v DO 201AD
HER501 THRU HER508 High Efficiency Rectifier Diode 5A 400v 600v DO 201AD
HER501 THRU HER508 High Efficiency Rectifier Diode 5A 400v 600v DO 201AD
HER501 THRU HER508 High Efficiency Rectifier Diode 5A 400v 600v DO 201AD
HER501 THRU HER508 High Efficiency Rectifier Diode 5A 400v 600v DO 201AD
Specifications
Brand Name :
trusTec
Model Number :
HER508
Certification :
ROHS
Place of Origin :
China
MOQ :
1K PCS
Price :
Negotiable (EXW/FOB/CNF)
Payment Terms :
T/T
Supply Ability :
800KK PCS per month
Delivery Time :
10 work days fresh products
Packaging Details :
1K PCS per tape & box, 10K PCS per carton.
Operating temperature :
-55°C ~ 150°C
Material :
Silicon
Trr :
70ns
Package :
DO-27
Max. reverse voltage :
1000V
Max. forward current :
5A
Max. forward voltage :
1.7V
Max. reverse current :
10uA
Description
5 Ampere 50V to 1000V DO-201AD High Efficiency Rectifier Diode HER501 THRU HER508
HER501 THRU HER508
HIGH EFFICIENCY RECTIFIERS
Reverse Voltage - 50 to 1000 Volts Forward Current - 5.0 Ampere

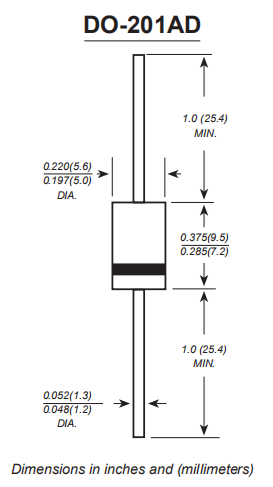

Product Size

HER501 THRU HER508 High Efficiency Rectifier Diode 5A 400v 600v DO 201AD


Technical Parameters

Type Current Package
1H1 THRU 1H8 1A R-1
HER101S THRU HER108S 1A A-405
HER101 THRU HER108 1A DO-41
HER151 ​ THRU HER158 1.5A DO-15
HER201 ​ THRU HER208
 2A
DO-15
HER251 ​ THRU HER258 2.5A R-3
HER301 ​ THRU HER308
 3A DO-27
HER501 ​ THRU HER508 5A DO-27
HER601 ​ THRU HER608
 6A R-6

MAXIMUM RATINGS
SYMBOLS
HER
501
HER
502
HER
503
HER
504
HER
505
HER
506
HER
507
HER
508
UNITS
Maximum repetitive peak reverse voltage
VRRM
 50 100 200 300 400 600 800 1000
VOLTS
Maximum RMS voltage
VRMS
 35 70 140 210 280 420 560 700
VOLTS
Maximum DC blocking voltage
VDC
 50 100 200 300 400 600 800 1000
VOLTS
Maximum average forward rectified current 0.375”(9.5mm) lead length at TA=75℃
I(AV)
 5.0
Amps
Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method)
IFSM
 170.0
Amps
Maximum instantaneous forward voltage at 6.0A
VF
 1.0 1.3 1.7
Volts
Maximum DC reverse current TA=25℃
at rated DC blocking voltage TA=100℃10
 IR

10.0

200

µA
Maximum reverse recovery time (NOTE 1)
trr
 50 70 ns
Typical junction capacitance (NOTE 2)
CJ
 15.0 12.0 pF
Typical thermal resistance (NOTE 3)
RθJA
 50.0 ℃/W
Operating junction and storage temperature range
TJ,TSTG
-65 to +150
 ℃

Ratings at 25 C ambient temperature unless otherwise specified.
Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%
Note:
1.Reverse recovery condition IF=0.5A,IR=1.0A,Irr=0.25A
2.Measured at 1MHz and applied reverse voltage of 4.0V D.C.
3.Thermal resistance from junction to ambient at 0.375” (9.5mm)lead length,P.C.B. mounted

Product Features

The plastic package carries Underwriters Laboratory Flammability Classification 94V-0
High speed switching for high efficiency
Low reverse leakage
High forward surge current capability
High temperature soldering guaranteed: 260 C/10 seconds,0.375”(9.5mm) lead length, 5 lbs. (2.3kg) tension
Mechanical Data
Case: DO-201AD molded plastic body
Terminals: Plated axial leads, solderable per MIL-STD-750, Method 2026
Polarity: Color band denotes cathode end
Mounting Position: Any
Weight:0.04 ounce, 1.10 grams
RATINGS AND CHARACTERISTIC CURVES
