ROHS Horizontal Touch Screen Kiosk Billing Machine 500cd/M2 Brightness
ROHS Horizontal Touch Screen Kiosk Billing Machine 500cd/M2 Brightness
Specifications
Brand Name :
TSINGHILL
Model Number :
TQ55
Certification :
CE ROHS FCC CCC ISO9001 CNAS
Place of Origin :
China
MOQ :
1 Unit
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100,000 Units per Month
Delivery Time :
5-30 days
Packaging Details :
Honeycomb Box
Panel Size :
55 inch
Panel Demensions :
1280*751*60mm
Display Size :
1207.6*678.4mm
Operating System :
Windows 7/Windows 10/Android
LCD Type :
Original UHD IPS LCD with grade A+
Tempered Glass :
Anti-glare
Resolution :
1366x768
Touch Type :
20 point Infrared touch (Capacitive optional)
Aspect Ratio :
16:9
Support Color :
16.7M
Pixel Pitch :
0.4845*0.4845mm
Contrast Ratio :
1500:1
Viewing Angle :
178°
Response Time :
< 6ms
Lifetime :
60000 Hours
Panel Bit (8 or 10) :
10 bits, 16.7M
Height :
1187mm
N.W. :
53kg
Description

55 Inch Floor Standing Bill Payment Kiosk With Touch Screen For Restaurant

Product Specifications:

Specifications
Model No. TQ55
Panel size 55“ TFT-LCD
Maximum resolution 1366x768
Display color 16.7M
Pixel Pitch(mm) 0.511(H)×0.511(V)
Brightness (nits) 500cd/m2
Contrast 1500:1
Visual angle 178°/178°
Response time 8ms
Horizontal frequency 50-70KHZ
Vertical frequency 56-75KHZ
Life(hrs) >60,000(hrs)
Touch Panel
Specification Infrared touch screen
Positioning
accuracy		 ±2mms
Transmittance ≥92%
Hardness 7H
Click manner double point, multipoint(optional)
Response time <=10ms
Output Resolution 4096X4096
Life time Single point of more than 60 million
Input and output
Composite video input 3(BNC×3)
YUV Input 1 (BNC×3)
S-video 1(BNC X2)
D-15 pin RGB input 1
HD 1
Composite video output 2(BNC×2)
L/R Audio input 1 (RCAx2)
L/R Audio output 1 (RCAx2)
USB2.0/Serial/SP2 input 2(for touch screen use)
Video
Color system PAL/NTSC/SECAM
Compatible HD input/DVI 480P,576P,720P,1080I,1080P
3D Comb filter Yes
Video reduction noise Yes
OSD display( screen menu display)
Menu language Chinese/English( multiple language option required)
Computer
Main chipset Intel G41+ICH7
Main board ONDA G41
System bus frequency 800/1066/1333 MHz
Graphics card Integrated IntelGMX 4500
Audio card Integrated AC97
Network card Integrated 10/100/1000M adaptive
Memory 2G DDRIII (max 4G)
Hard Disk 320G SATA
Operation system Windows 7
Power
Power supply AC100V~240V,50/60Hz
Maximum power consumption <=55W
Standby power consumption <=1W
Temperature
Working temperature 0°C~50°C
Storage temperature -10°C~60°C
Working humidity 20%~80%
Storage humidity 5%~95%
Appearance
Panel color/appearance White, black, customized
Panel material SPCC/Aluminum/Customized
Installation Wall-mounted(default), desktop
Certificate CE/FCC/3C/RoHS
Accessories Manual,remote control, data line1.5 M, power line 1.8 M

Product Parameters:

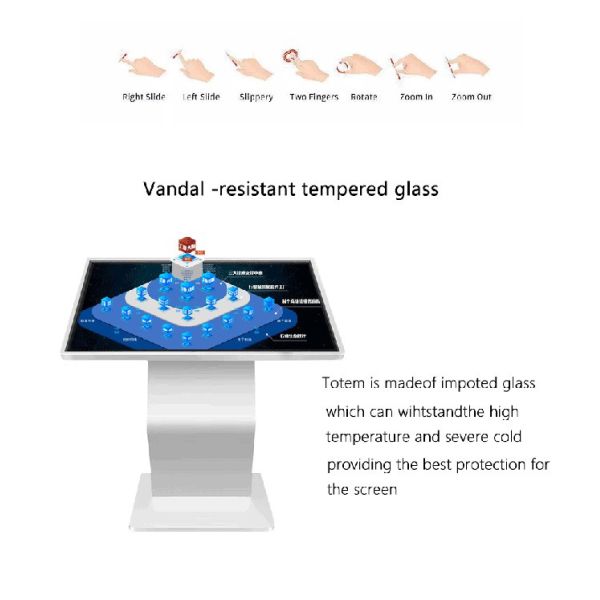

1. High quality explosion-proof glass, high light transmittance, anti-violent, scratch-resistant, dust-proof and waterproof.


2. Professional chip and processing technology to ensure high image quality.


3. Industrial high-performance LCD screen ensures high image clarity, high brightness and stability of use.


4. The shell is made of high-strength steel, which is thin, beautiful and strong, and has excellent protection performance.


5. The surface is fine-grained, smooth and even, with good anti-rust and wear-resisting functions.


6. A variety of signal interfaces, supporting a variety of signal input / output.


7. Adopt industrial industrial control board, Android system.

Product Details:

ROHS Horizontal Touch Screen Kiosk Billing Machine 500cd/M2 BrightnessROHS Horizontal Touch Screen Kiosk Billing Machine 500cd/M2 Brightness

FAQ:

Q: What services can we provide?
A: Accepted Delivery Terms: FOB, EXW.
Accepted Payment Currency: USD, CNY.
Accepted Payment Type: T/T, West Union, Paypal.
Language Spoken:English, Chinese.

Q: How long does the sample be prepare for?
A: Usually 5-9 working days for common spec and package, customization samples should to be negotiated.

Q: How long is the warranty time?
Standard warranty :12 month, can be extended.

Q: What is your after Service police?
A: With the advanced technology and Modern management, our products manufactured under the best quality control to ensure the quality and delivery time. We provide 24-7 service from the beginning, producing and after. All our best to assist customers to get the suitable product, reduce the costs, catch the business opportunity fast, and enlarge share together.

Q: How should I know what size interactive flat panel to buy?
A: 55’ is suitable for 8-10m² meeting room, with 6-8 people.

65’ is suitable for 8-15m² meeting room, with 8- 10 people.
75’ is suitable for 15-25m² meeting room, with 10-15 people.
86’ is suitable for 25-50m² meeting room, with 15-25 people.
98’ is suitable for 50-80m² meeting room, with 25-40 people.

Q: How can I get a sample?
A: Sure ,we support MOQ 1pc, you can buy 1 pc for test

Q: Do you have the products in stock?
A: Yes, every month.
