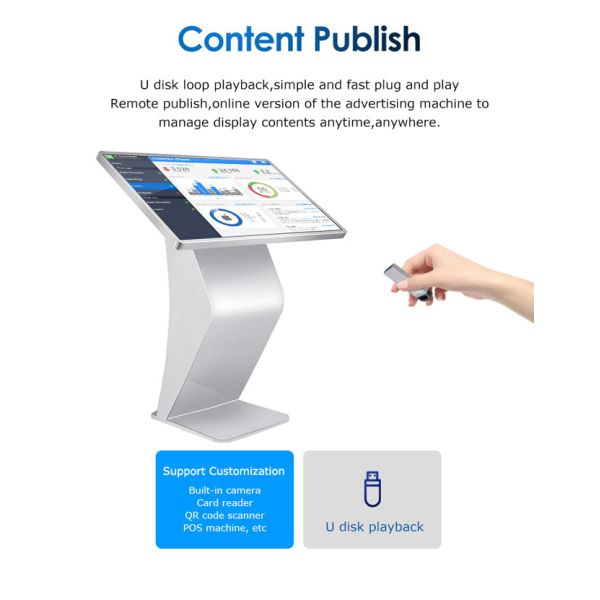

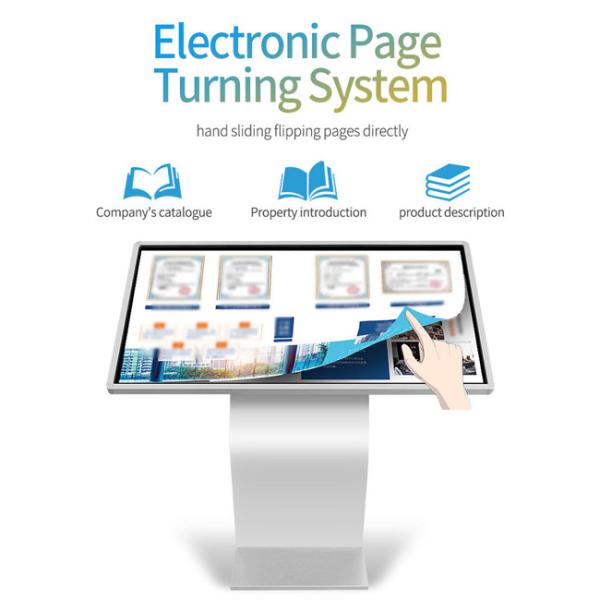

Indoor Horizontal Touch Screen Kiosk 49in Interactive Digital Screen
Indoor Horizontal Touch Screen Kiosk 49in Interactive Digital Screen
Specifications
Brand Name :
TSINGHILL
Model Number :
TQ49
Certification :
CE ROHS FCC CCC ISO9001 CNAS
Place of Origin :
China
MOQ :
1 Unit
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100,000 Units per Month
Delivery Time :
5-30 days
Packaging Details :
Honeycomb Box
Panel Size :
49 inch
Panel Demensions :
1147*674*75mm
Display Size :
1071.8*602mm
Operating System :
Windows 7/Windows 10/Android
LCD Type :
Original UHD IPS LCD with grade A+
Tempered Glass :
Anti-glare
Resolution :
1366x768
Touch Type :
20 point Infrared touch (Capacitive optional)
Aspect Ratio :
16:9
Support Color :
16.7M
Pixel Pitch :
0.4845*0.4845mm
Contrast Ratio :
1500:1
Viewing Angle :
178°
Response Time :
< 6ms
Lifetime :
60000 Hours
Panel Bit (8 or 10) :
10 bits, 16.7M
Height :
1176mm
N.W. :
48kg
Description

Wholesale Indoor 49 Inch Horizontal Touch Screen Kiosk Digital Interactive Signage

Product Specifications:

Specifications
Model No. TQ49
Panel size 49“ TFT-LCD
Maximum resolution 1366x768
Display color 16.7M
Pixel Pitch(mm) 0.511(H)×0.511(V)
Brightness (nits) 500cd/m2
Contrast 1500:1
Visual angle 178°/178°
Response time 8ms
Horizontal frequency 50-70KHZ
Vertical frequency 56-75KHZ
Life(hrs) >60,000(hrs)
Touch Panel
Specification Infrared touch screen
Positioning
accuracy		 ±2mms
Transmittance ≥92%
Hardness 7H
Click manner double point, multipoint(optional)
Response time <=10ms
Output Resolution 4096X4096
Life time Single point of more than 60 million
Input and output
Composite video input 3(BNC×3)
YUV Input 1 (BNC×3)
S-video 1(BNC X2)
D-15 pin RGB input 1
HD 1
Composite video output 2(BNC×2)
L/R Audio input 1 (RCAx2)
L/R Audio output 1 (RCAx2)
USB2.0/Serial/SP2 input 2(for touch screen use)
Video
Color system PAL/NTSC/SECAM
Compatible HD input/DVI 480P,576P,720P,1080I,1080P
3D Comb filter Yes
Video reduction noise Yes
OSD display( screen menu display)
Menu language Chinese/English( multiple language option required)
Computer
Main chipset Intel G41+ICH7
Main board ONDA G41
System bus frequency 800/1066/1333 MHz
Graphics card Integrated IntelGMX 4500
Audio card Integrated AC97
Network card Integrated 10/100/1000M adaptive
Memory 2G DDRIII (max 4G)
Hard Disk 320G SATA
Operation system Windows 7
Power
Power supply AC100V~240V,50/60Hz
Maximum power consumption <=55W
Standby power consumption <=1W
Temperature
Working temperature 0°C~50°C
Storage temperature -10°C~60°C
Working humidity 20%~80%
Storage humidity 5%~95%
Appearance
Panel color/appearance White, black, customized
Panel material SPCC/Aluminum/Customized
Installation Wall-mounted(default), desktop
Certificate CE/FCC/3C/RoHS
Accessories Manual,remote control, data line1.5 M, power line 1.8 M

Product Parameters:

Infrared Multi 10 Point Touch Screen

(Original A+ Panel: Samsung/ LG/ AUO/ ChiMei)

Built-in HIFI Speakers

Built-in Bluetooth,WIFI, RJ45 Network

Operating System: Android/ Windows

Features: Tempered Glass/ Aluminium Alloy Frame

System: Linux/ Android/ Windows (Optional)

Support 16/7 Operation/ Auto Display

Supports Media Publishing System

FHD Resolution: 4mm anti-explosion tempered glass.

The whole perspective of 178°(Min).

USB VGV HDMI Inputs/Outputs

Stand could be customized!

Applications: Supermarket/ Retail/ Store/ Airport/ Hotel/ Showroom/ Bank/ Hospital/ Museum

Product Details:

Indoor Horizontal Touch Screen Kiosk 49in Interactive Digital ScreenIndoor Horizontal Touch Screen Kiosk 49in Interactive Digital Screen

FAQ:

Q: Could you provide OEM&ODM service of touch screen?

A: Of course , including software, packaging, product logo, etc.,consult customer service for more details.

Q: What is the warranty period of touch screen?

A: Normally it is 1 year, we have a professional after-sales service team, specific details can consult customer service.

Q: How do you guarantee the quality of your touch screen?

A: Our products comply with ISO9001 quality system and CE/FCC/ROHS standards. All our products pass strict QC inspection in the production process. In particular, export products need to complete 72-hour aging test to ensure no problems before shipment.

Q: How do you arrange transportation for touch screen?

A: If small sample orders suggest express delivery (7-10days) or air freight (10-15 days), if bulk production advise by sea more favorable , please consult customer service for more details!

Q: What services can we provide?
A: Accepted Delivery Terms: FOB, EXW.
Accepted Payment Currency: USD, CNY.
Accepted Payment Type: T/T, West Union, Paypal.
Language Spoken:English, Chinese.

Q: How long does the sample be prepare for?
A: Usually 5-9 working days for common spec and package, customization samples should to be negotiated.

Q: How long is the warranty time?
Standard warranty :12 month, can be extended.
