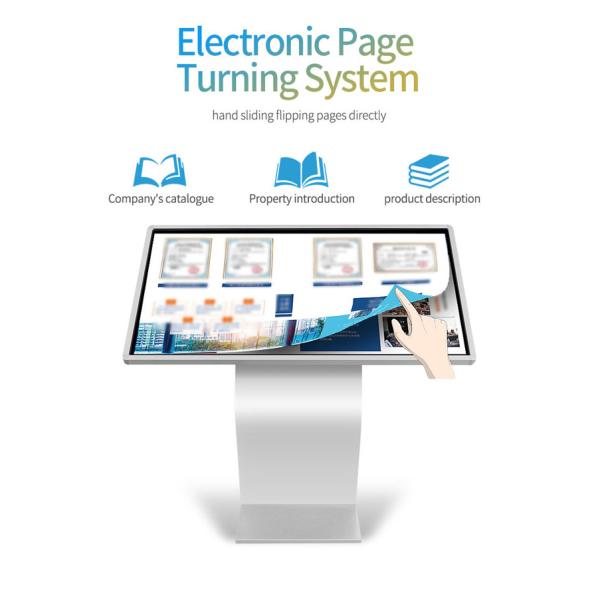

OEM Horizontal Touch Screen Kiosk 43 Inch Interactive Signage Display
OEM Horizontal Touch Screen Kiosk 43 Inch Interactive Signage Display
Specifications
Brand Name :
TSINGHILL
Model Number :
TQ43
Certification :
CE ROHS FCC CCC ISO9001 CNAS
Place of Origin :
China
MOQ :
1 Unit
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100,000 Units per Month
Delivery Time :
5-30 days
Packaging Details :
Honeycomb Box
Panel Size :
43 inch
Panel Demensions :
1003*592*60mm
Display Size :
928.2*521.3mm
Operating System :
Windows 7/Windows 10/Android
LCD Type :
Original UHD IPS LCD with grade A+
Tempered Glass :
Anti-glare
Resolution :
1366x768
Touch Type :
20 point Infrared touch (Capacitive optional)
Aspect Ratio :
16:9
Support Color :
16.7M
Pixel Pitch :
0.4845*0.4845mm
Contrast Ratio :
1500:1
Viewing Angle :
178°
Response Time :
< 6ms
Lifetime :
60000 Hours
Panel Bit (8 or 10) :
10 bits, 16.7M
Height :
1142mm
N.W. :
41kg
Description

Wholesale Indoor 43 Inch Horizontal Touch Screen Kiosk Digital Interactive Signage

Product Specifications:

Specifications
Model No. TQ43
Panel size 43“ TFT-LCD
Maximum resolution 1366x768
Display color 16.7M
Pixel Pitch(mm) 0.511(H)×0.511(V)
Brightness (nits) 500cd/m2
Contrast 1500:1
Visual angle 178°/178°
Response time 8ms
Horizontal frequency 50-70KHZ
Vertical frequency 56-75KHZ
Life(hrs) >60,000(hrs)
Touch Panel
Specification Infrared touch screen
Positioning
accuracy		 ±2mms
Transmittance ≥92%
Hardness 7H
Click manner double point, multipoint(optional)
Response time <=10ms
Output Resolution 4096X4096
Life time Single point of more than 60 million
Input and output
Composite video input 3(BNC×3)
YUV Input 1 (BNC×3)
S-video 1(BNC X2)
D-15 pin RGB input 1
HD 1
Composite video output 2(BNC×2)
L/R Audio input 1 (RCAx2)
L/R Audio output 1 (RCAx2)
USB2.0/Serial/SP2 input 2(for touch screen use)
Video
Color system PAL/NTSC/SECAM
Compatible HD input/DVI 480P,576P,720P,1080I,1080P
3D Comb filter Yes
Video reduction noise Yes
OSD display( screen menu display)
Menu language Chinese/English( multiple language option required)
Computer
Main chipset Intel G41+ICH7
Main board ONDA G41
System bus frequency 800/1066/1333 MHz
Graphics card Integrated IntelGMX 4500
Audio card Integrated AC97
Network card Integrated 10/100/1000M adaptive
Memory 2G DDRIII (max 4G)
Hard Disk 320G SATA
Operation system Windows 7
Power
Power supply AC100V~240V,50/60Hz
Maximum power consumption <=55W
Standby power consumption <=1W
Temperature
Working temperature 0°C~50°C
Storage temperature -10°C~60°C
Working humidity 20%~80%
Storage humidity 5%~95%
Appearance
Panel color/appearance White, black, customized
Panel material SPCC/Aluminum/Customized
Installation Wall-mounted(default), desktop
Certificate CE/FCC/3C/RoHS
Accessories Manual,remote control, data line1.5 M, power line 1.8 M

The reason why choose us?

1 We have our own ERP of the main manufacturer for digital signage and LCD video wall with over 8 years experience of producing products.

2 We could provide OEM/ODM service for all kinds of customers. Our professional support team will provide service online 24 hours for customers.

3 We have a very strong quality control samples are always available for checking quality and can be dispatched to you very quickly.

4 Design ability: artworks/ Instruction manual/ product design according to customer's requirement.

5 We have our own ERP systems : Shorten lead times at low cost with responsive production planning.

6 Warranty (1-3 year)

Product Details:

OEM Horizontal Touch Screen Kiosk 43 Inch Interactive Signage DisplayOEM Horizontal Touch Screen Kiosk 43 Inch Interactive Signage Display

FAQ:

Q:Can you provide OEM service for the all in one interactive flat panel?
A: Yes,well supported.We can customize it according to your requests.

Q:Do you have stock?
A:We keep 3000-5000 units in Stock every single Month.

Q: Is your company a real manufacturer?
A: Our company is the professional manufacturer in Foshan, Guangdong province, you are the mostly welcomed to visit our factory anytime.

Q: How is the quality of the product?
A: Our products have been strictly tested high quality by QC before shipping to customers.And we do own brand selling in domestic
China market on line. Our brand is “TSINGHILL. So quality is the most important thing for us!

Q: Does the product only use for school?
A: Our products are widely used in hospital, school, office etc.

Q: How can I trust your product quality?
A: We have more than 10 years export experience. From material purchasing to product delivery, we have professional staff and
procedures to prevent potential quality risk. Our products have been approved by CE & ROHS, etc.

Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly.
