Revolutionize Your Agriculture with M4E-G500 Agricultural Drone 8-10min Flying Time
Revolutionize Your Agriculture with M4E-G500 Agricultural Drone 8-10min Flying Time
Revolutionize Your Agriculture with M4E-G500 Agricultural Drone 8-10min Flying Time
Revolutionize Your Agriculture with M4E-G500 Agricultural Drone 8-10min Flying Time
Revolutionize Your Agriculture with M4E-G500 Agricultural Drone 8-10min Flying Time
Revolutionize Your Agriculture with M4E-G500 Agricultural Drone 8-10min Flying Time
Revolutionize Your Agriculture with M4E-G500 Agricultural Drone 8-10min Flying Time
Revolutionize Your Agriculture with M4E-G500 Agricultural Drone 8-10min Flying Time
Revolutionize Your Agriculture with M4E-G500 Agricultural Drone 8-10min Flying Time
Revolutionize Your Agriculture with M4E-G500 Agricultural Drone 8-10min Flying Time
Revolutionize Your Agriculture with M4E-G500 Agricultural Drone 8-10min Flying Time
Revolutionize Your Agriculture with M4E-G500 Agricultural Drone 8-10min Flying Time
Specifications
Model NO. :
M4E-G500
Power Supply :
Electric
Technics :
Screen Printing
Material :
TPU
Type :
Knapsack
Product Name :
Drone Sprayer
Model :
M4e-G500
Sprayer Type :
Unmanned Aerial Vehicle (Uav)
Usage :
Agriculture
Video Outgoing Inspection :
Provided
Tank Volume :
50L
Empty Weight :
34.8kg
Full Payload Flying Time :
8-10min
Flying Height :
2000m
Flying Speed :
0-8m/S
Transport Package :
Box Package
Specification :
M4E-G500
Trademark :
TTA
Origin :
China
HS Code :
880022000
Supply Ability :
10000unit/Year
After-sales Service :
Engineers Available to Service Machinery Overseas,
Warranty :
1 Year
Installation :
Internal Threaded Connection
Liquid Contained :
Medicine, Disinfector
Spraying Shape :
Sector
Volume :
>500ml
Samples :
US$ 10999/Piece 1 Piece(Min.Order) | Request
Customization :
Available | Customized Request
MOQ :
1 unit
Price :
Negotiable
Packaging Details :
Box Package
Delivery Time :
https://ttadrone.en.made-in-china.com/
Payment Terms :
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Description
Agricultural Drone 50L Tank Volume 8-10min Full Ayload Flying Time Spraying Fertilize Plant Protection Machine Crop Spraying Agriculture Farm
Name of commodity Image Remarks

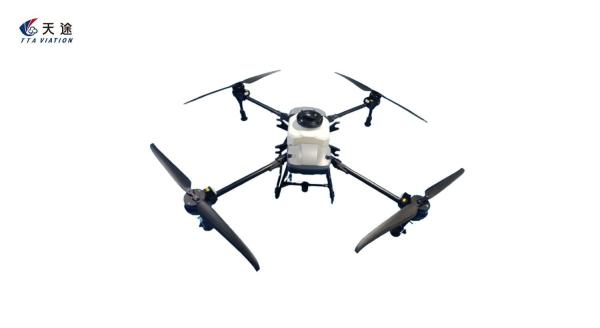

4 rotors UAV


Revolutionize Your Agriculture with M4E-G500 Agricultural Drone 8-10min Flying Time

fuselage, arms, motors, propellers, electronic speed controllers





Spraying equipment		 Revolutionize Your Agriculture with M4E-G500 Agricultural Drone 8-10min Flying Time


Micro pump / Flow meter / pesticide tank / nozzles/

APAR(Active Phased

Array Radar)		 Revolutionize Your Agriculture with M4E-G500 Agricultural Drone 8-10min Flying Time 360-degree obstacle avoidance radar
Water Pump Revolutionize Your Agriculture with M4E-G500 Agricultural Drone 8-10min Flying Time 2pcs



Package		 Revolutionize Your Agriculture with M4E-G500 Agricultural Drone 8-10min Flying Time


Carton Box





Remote controller		 Revolutionize Your Agriculture with M4E-G500 Agricultural Drone 8-10min Flying Time




5.5-inch HD high brightness display Single-axis FPV



Battery/2pcs included in package		 Revolutionize Your Agriculture with M4E-G500 Agricultural Drone 8-10min Flying Time 1pc battery/flight

2 pcs in one CTN:

37.5*30*37 cm (L*W*H) G.W:28Kg



18S Charger		 Revolutionize Your Agriculture with M4E-G500 Agricultural Drone 8-10min Flying Time Dual channels

37.5*32.5*31.5cm(L*W*H) G.W: 13Kg
Assemble tools 1 bag
Supply Ability

Supply Ability 500set/sets per Month

Packaging & Delivery

Packaging Details: Packed in professional aviation case
Port: Tianjin, Shanghai, ningbo, shenzhen

Revolutionize Your Agriculture with M4E-G500 Agricultural Drone 8-10min Flying Time
PRODUCTION DESCRIPTION
Mode 1:
Preset the working route on GCS ,find your crop field on Google Map, the route will automatically appear. The start point,the final
point and the working direction can all be set.

Mode 2:
Import Kml file directly ,
the route will automatically appear. The start point, the final point and the working direction can all be set.

Mode 3:
Quick scanning mode:
Operator only need to set A and B point and give the drone a
direction order then the drone will fly and spray
automatically. Easy to shorten or extend the AB point distance during flying to adapt irregular shape

Technical data

Model No. M4E-G500
Tank Volume 50L

Work Efficiency
14~40 hectare/ hours

Empty Weight
34.8KG

Standard Take Off Weight
98KG

Max Take Off Weight		 105KG(Within 1,000 meters above sea level)

RTK/GNSS Frequency		 RTK: GPS L1/L2, GLONASS

F1/F2,BeiDou B1/B2, Galileo E1/E5

Hover Accuracy		 Horizontal: ±10 cm
Vertical: ± 10 cm
Flying
Full payload Flying Time 8-10min
Max Flying Time <20min
Flying Speed 0-8m/s
Flying Height 2000m
Landing approach Vertical take-off and landing
Anti-wind <7m/s
Positioning GPS&RTK
Spraying
Spray droplet diameter 50-500μm
Quantity of Nozzles 4pcs
Recommend Spray Speed 6-8m/s
Spray Width 6-12M
Spray Height 2-4M above crop
Battery
Power Capacity 30000mAh-60.9V
Weight 13.2KG
Discharge Rate 5C
IP IP67

Revolutionize Your Agriculture with M4E-G500 Agricultural Drone 8-10min Flying Time

Main Features

Features of M6E-G300 Agricultural Drone UAV
Cloud service
RTK Accurate positioning
Flight log playback
Flow rate control
Multiple operation modes
Obstacle avoidance
Revolutionize Your Agriculture with M4E-G500 Agricultural Drone 8-10min Flying Time
Automatic spraying mode

Revolutionize Your Agriculture with M4E-G500 Agricultural Drone 8-10min Flying Time
RTK accurate positioning system Accuracy:
Horizontal: ± 1cm + 1ppm Vertical: ±2cm + 1ppm
Function:
Make sure the field can be fully covered.
To avoid damage neighbour crop and pollution.
One base station supports multiple drones work at same time.
Revolutionize Your Agriculture with M4E-G500 Agricultural Drone 8-10min Flying Time
Spraying system
Double water pumps generate bigger pressure , max 24L/min adjustable flow rate.
Auxiliary tank can prevent the reverse flow of water from spraying system to achieve more precise flow counting.
Obstacle avoidance sensor
Equip 360 degree omnidirectional obstacle avoidance radar makes the drone has the ability to automatically detect obstacles to avoid unexpected crash and lose.
The GCS presents the distance from the obstacles at the same time.


Revolutionize Your Agriculture with M4E-G500 Agricultural Drone 8-10min Flying Time

Terrain following module
To make the drone has the ability to work on undulating crop field and make the spraying work much easier.
Single-axis FPV camera
Controllable pitch Angle ± 45 ° , necessary for aircraft operation!
Real time video monitoring let you know detail information of drone and your crop situation !

Dual Pump, High Precision Flowmeter
Maximum flow rate of a single pump 14L/ min. The accuracy of double tube flowmeter is less than 5%
Precheck and After-check
You can review the detail performance of the drone by flight log playback function and also can view the flight route ! Which allow you to check your drone in details before flying and check the mission records after flight.

Details Images.
Revolutionize Your Agriculture with M4E-G500 Agricultural Drone 8-10min Flying TimeRevolutionize Your Agriculture with M4E-G500 Agricultural Drone 8-10min Flying Time
WHY CHOOSE US?
Revolutionize Your Agriculture with M4E-G500 Agricultural Drone 8-10min Flying Time
HOT SELLING PRODUCTS

COMPANY STRENGTH
Revolutionize Your Agriculture with M4E-G500 Agricultural Drone 8-10min Flying Time
EXHIBITION DISPLAY
Revolutionize Your Agriculture with M4E-G500 Agricultural Drone 8-10min Flying Time


FAQ

Q: 1.How to fly the drones?

A: There are operating manual and video to teach the operation. You can also come to our company for free training.


Q: 2.Are your drone waterproof?

A: Yes, the drone is waterproof.


Q: 3.Does your agriculture drone can set routes?

A: Yes, you can set routes and AB point on your computer and mobile phone through ground control station.


Q:4.What capacity drone do you have?

A:We have 5, 10 and 20kg payload.


Q:5.How many hectares can the drone can cover one day?

A:From 30-50 hectares, depends on the capacity.


Q:6.Can the drone spray the high trees?

A:Yes, we designed the fogger drone.


Q:7.Can the drone spray the fertilizers and seeds?

A:Yes. we designed the 20kg agriculture spreader drone.


Q:8.Does it have the FPV camera and light?

A:Yes.


Q: 9.Which flight controller do you use?

A: We have our own flight controller.
