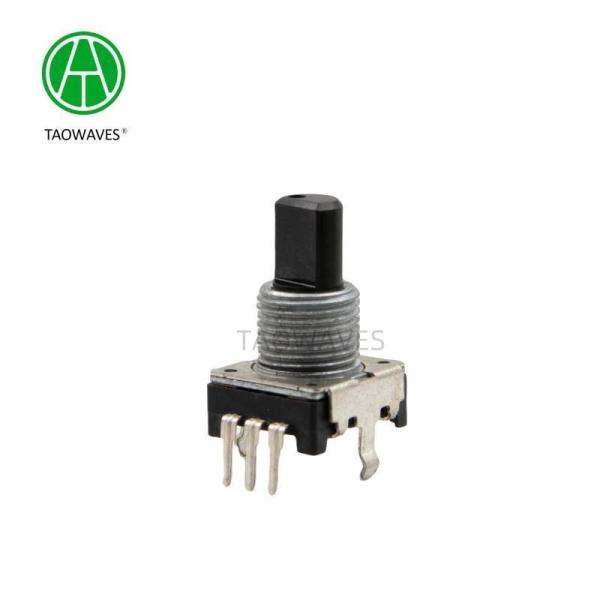

Incremental Ec12 Rotary Encoder 12mm For Auto Washing Machine Rotation Control
Incremental Ec12 Rotary Encoder 12mm For Auto Washing Machine Rotation Control
Incremental Ec12 Rotary Encoder 12mm For Auto Washing Machine Rotation Control
Incremental Ec12 Rotary Encoder 12mm For Auto Washing Machine Rotation Control
Incremental Ec12 Rotary Encoder 12mm For Auto Washing Machine Rotation Control
Incremental Ec12 Rotary Encoder 12mm For Auto Washing Machine Rotation Control
Incremental Ec12 Rotary Encoder 12mm For Auto Washing Machine Rotation Control
Incremental Ec12 Rotary Encoder 12mm For Auto Washing Machine Rotation Control
Incremental Ec12 Rotary Encoder 12mm For Auto Washing Machine Rotation Control
Incremental Ec12 Rotary Encoder 12mm For Auto Washing Machine Rotation Control
Incremental Ec12 Rotary Encoder 12mm For Auto Washing Machine Rotation Control
Incremental Ec12 Rotary Encoder 12mm For Auto Washing Machine Rotation Control
Specifications
Model NO. :
EC12C20V01
Package :
-
Installation Form :
Axle Sleeve Type
Brand :
Taowaves
Axonia :
-
Transport Package :
Carton
Specification :
12mm
Trademark :
TAOWAVES
Origin :
China
Type :
Rotary Encoder
Working Principle :
Incremental
Readout Mode :
Contact
Operating System :
Contact Brush Type
Signal Output :
Voltage Output
Axle Sleeve Type :
Empty Type
Customization :
Available | Customized Request
Description
12mm 3-Pin Encoder Switch with Plastic Handle Rotary Encoder Switch for Audio Devices
Incremental Ec12 Rotary Encoder 12mm For Auto Washing Machine Rotation Control
EC12 Series Product Specifications
1.Electrical Characteristics
Rated voltage:DC 5V
Resolution:12/24pulses/360°
Insulation resistance:100MΩ Min at DC 250V
Dielectric strength:1 minute at AC300V
Phase Difference:12≥6.7ms / 24≥3.4ms
2.Mechanical Characteristics
Total ratational angle:360°(Endless)
Detent torque:3~15mN.m.(30~150gf.cm)
Shaft wobble:0.7*L/30mm p-p Max(L: mounting height)
Push-Pull Strength of shaft8KG
3.Endurance Characteristics
Rotational life:30,000cycles
Operating temperature range:-30ºC to+80ºC
Storage temperature range:-40ºC to+85ºC

Our Factory
Incremental Ec12 Rotary Encoder 12mm For Auto Washing Machine Rotation ControlIncremental Ec12 Rotary Encoder 12mm For Auto Washing Machine Rotation ControlIncremental Ec12 Rotary Encoder 12mm For Auto Washing Machine Rotation ControlApplication:
Incremental Ec12 Rotary Encoder 12mm For Auto Washing Machine Rotation Control
Incremental Ec12 Rotary Encoder 12mm For Auto Washing Machine Rotation Control
FQA:
1.What are the advantages of your factory?
Our factory has mold manufacturing workshop, plastic injection molding workshop and lathe center. 80% of the raw materials are supplied by ourselves to ensure that the quality and delivery speed are higher than those of our peers.
2.Do you support customization?
Yes, customization is supported, we need you to provide drawings, usage and requirements.
3.What is your shipping port and the term of payment ?
Ex-work or FOB Shenzhen.
30% paid in advance, 70% balance before shipment by T/T.(First transaction requires 100% payment in advance.)
4.How long is your lead time?
It will take 3workdays for samples,7-15workdays for mass production.
5.Can I get samples from you?
Small amount of samples can be provided for free, but customers need to pay for air freight themselves.
6.What's your MOQ ?
Our MOQ is 2K. If it is a small batch order, the price needs to be increased appropriately.
