SC 12 Port Wall Mount Fiber Termination Box With ABS Plastic Housing
SC 12 Port Wall Mount Fiber Termination Box With ABS Plastic Housing
SC 12 Port Wall Mount Fiber Termination Box With ABS Plastic Housing
SC 12 Port Wall Mount Fiber Termination Box With ABS Plastic Housing
SC 12 Port Wall Mount Fiber Termination Box With ABS Plastic Housing
SC 12 Port Wall Mount Fiber Termination Box With ABS Plastic Housing
Specifications
Brand Name :
TTI
Model Number :
FTB-212
Certification :
ISO, SGS, ROHS
Place of Origin :
China
MOQ :
10 pcs
Price :
Negotiation
Payment Terms :
T/T, , PayPal
Supply Ability :
7000 pcs/Month
Delivery Time :
2-3 days
Packaging Details :
Box
Mode :
Wall mounted
Connector :
SC, LC
Material :
PC, ABS
Port :
2in, 12out
Application :
Indoor, Outdoor
Color :
Black, White, Grey
Description

SC 12 Port Optical Fiber Distribution Box with ABS Plastic Housing

Description:

Fiber optic terminal box is available for the distribution and terminal connection for various kinds of optical fiber system, especially suitable for mini-network terminal distribution, in which the optical cables, patch cores or pigtails are connected.

Features:

The box is made of SMC, and lifetime is more than 20 years.

It also can be used under -30°c.

Bi-layer structure design. The upper layer is for optical splitter, the other layer is for fiber splicing.

Easy to operate. Usually installed as wall mounted in the building or at the green belt.

It can accommodate 12 pcs SC-SC, or SC-FC adapters.

It can be designed to client requirements.

It meets YD/T988-2007 standards.

Application:

FTTH access network

CATV Networks
Telecommunication Networks
Data communications Networks

Operation conditions:


Temperatures:-40℃ -- 60℃
Humidity:93% at 40℃
Air Pressure:62kPa – 101kPa


Specification:

Type FDB-04 FDB-08 FDB-16 FDB-24 FDB-32 FDB-48
Size(mm) 210*140*40 205*215*55 260*320*90 295*335*115 350*340*120 350*340*120
Cable ports 4 8 16 24 32 48
Weight(kg) 0.35 0.75 1.4 2.1 3.5 5

Model TTI/FB-104C
Size(mm): L*W*H 210*140*20
Cable ports 2 inlet, 16 outlet
Max capacity of splice 16 Core(Single)
Net Weight (kg) 0.45
Outer carton weight (kg) 15.6
Package 20PCS/CTN

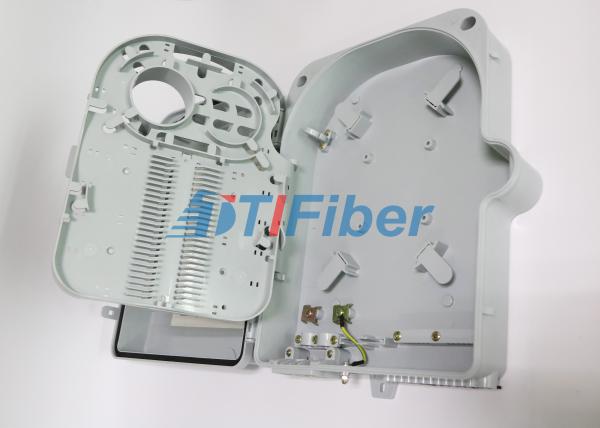

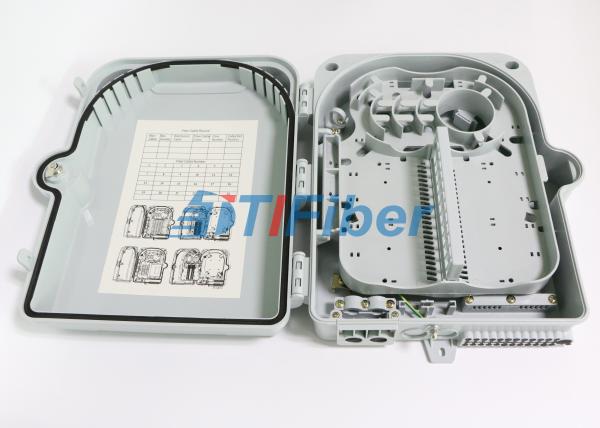

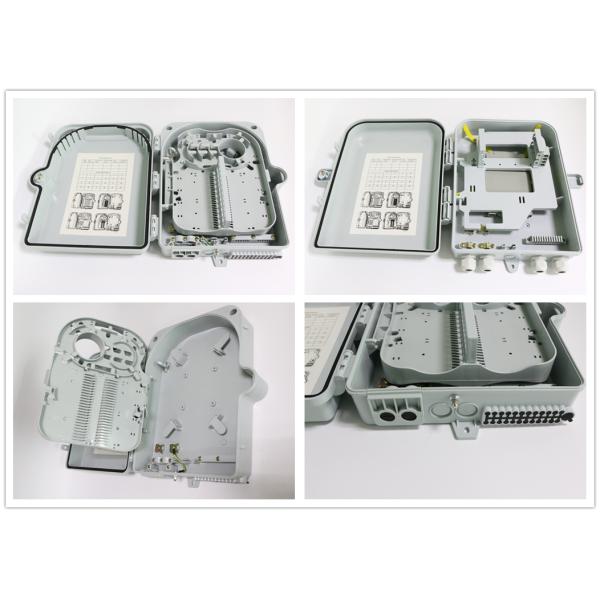

Product Picture:


SC 12 Port Wall Mount Fiber Termination Box With ABS Plastic Housing
