LC / UPC 48 Cores Fiber Optic Patch Panel With Stainless Steel , 2u Patch Panel
LC / UPC 48 Cores Fiber Optic Patch Panel With Stainless Steel , 2u Patch Panel
LC / UPC 48 Cores Fiber Optic Patch Panel With Stainless Steel , 2u Patch Panel
LC / UPC 48 Cores Fiber Optic Patch Panel With Stainless Steel , 2u Patch Panel
LC / UPC 48 Cores Fiber Optic Patch Panel With Stainless Steel , 2u Patch Panel
LC / UPC 48 Cores Fiber Optic Patch Panel With Stainless Steel , 2u Patch Panel
Specifications
Brand Name :
TTI
Model Number :
OTB-RS
Certification :
ISO, SGS, ROHS
Place of Origin :
China
MOQ :
10 pcs
Price :
Negotiation
Payment Terms :
T/T, , PayPal
Supply Ability :
5000 pcs/Month
Delivery Time :
2-3 days
Packaging Details :
Box
Structure :
19'' Rack Mounted
Model :
Fixed Type
Connector :
LC-DX
Material :
Cold Rolled Steel, AL
Color :
Black, White, Grey
Port :
48 port
Height :
2U
Thickness :
0.8mm,1.0mm, 1.2mm
Description

LC / UPC 48 cores Fiber Optic Patch Panel with Stainless Steel

Description:

19inch,1U (2U, 3U),Rack mounting type.

Made of Cold Rolled Steel, with excellent performance of mechanical durability, anti-erosion, aging resistance and dustproof,flame-retardant.

The panel is easy to be pulled and pushed.

FC / SC / LC type,SC duplex adapters are adopted.

Capacity for 12/24/48/72/96/144 core is available.

Feature:

Environment temperature:-25℃~+45℃
Relative humidity:≤85%(30℃)
Atmosphere pressure:70~106KPa
Insulated Resistance:≥2×10MΩ/500V(DC)
Intensity≤15KV(DC)/1minno spark-over and no flying arc
Fiber bending radium guaranteed more than 40mm:≥40mm
Material: Cold rolled steel
High quality finish,without sharp edges.
With changeable panel for duplex or simplex adapter,easily combination with your real application.

Adoptable adapter types: FC, SC,LC/Duplex.

Application:

Introducing and fixing cables in wiring room and equipment room

Splicing and protection of optical fibers

Storage, connection and management of patch cords and pigtails

Telecommunications and CATV

FTTH, LANs and WANs

Specification:

Fixed Type:

Type OTB-RF-1UA OTB-RF-2UA OTB-RF-1UB OTB-RF-1UB OTB-RF-1UC OTB-RF-2UC
Size(mm) 430*250*1U 430*250*1U 482*295*1U 320*240*100 350*340*120 350*340*120
Max capacity(core) 24 48 24 48 24 48
Weight(kg) 2.6 3.8 3 4 3 5

Slidable Type:

Type OTB-RS-1UA OTB-RS-2UA OTB-RS-1UB OTB-RS-2UB OTB-RS-1U-3MPO OTB-RW-1U
Size(mm) 430*300*1U 430*250*2U 482*217*1U 482*217*2U 482*296*1U 430*300*1U
Max capacity(core) 24 48 24 48 36 24
Weight(kg) 3.5 4.0 3.5 4.0 3.0 4.7

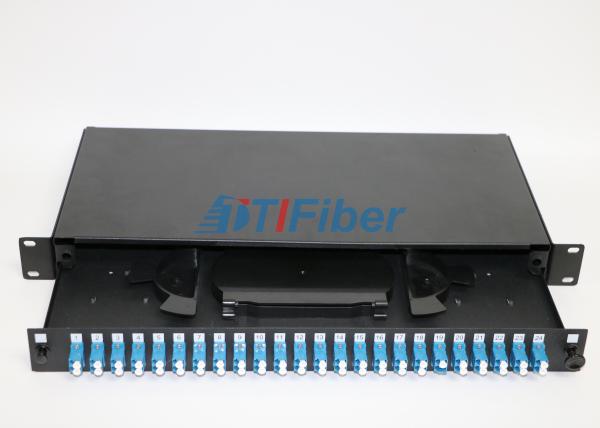

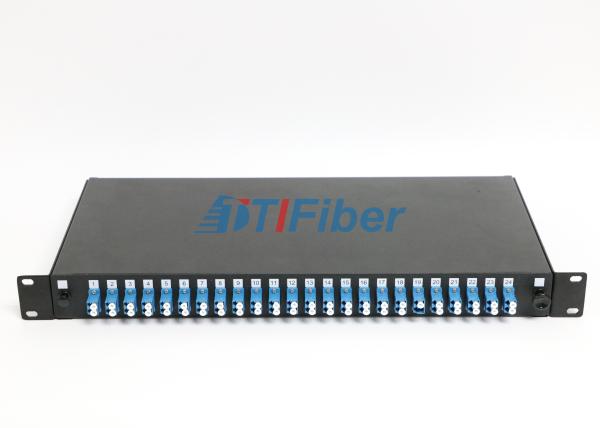

Product Picture:

LC / UPC 48 Cores Fiber Optic Patch Panel With Stainless Steel , 2u Patch Panel
