Fiber Optic Termination Box ODF Box For SC FC LC Fiber Adapters
Fiber Optic Termination Box ODF Box For SC FC LC Fiber Adapters
Fiber Optic Termination Box ODF Box For SC FC LC Fiber Adapters
Fiber Optic Termination Box ODF Box For SC FC LC Fiber Adapters
Fiber Optic Termination Box ODF Box For SC FC LC Fiber Adapters
Fiber Optic Termination Box ODF Box For SC FC LC Fiber Adapters
Specifications
Brand Name :
TTI
Model Number :
OTB-RS
Certification :
ISO, SGS, ROHS
Place of Origin :
China
MOQ :
10 pcs
Price :
Negotiation
Payment Terms :
T/T, , PayPal
Supply Ability :
5000 pcs/Month
Delivery Time :
2-3 days
Packaging Details :
Box
Structure :
19'' Rack Mounted
Model :
Fixed Type
Connector :
SC LC FC ST E2000 MPO
Material :
Cold Rolled Steel, AL
Color :
Black, White, Grey
Port :
6, 12, 24, 48, 72, 96, 144
Height :
1U, 2U, 3U, 4U, 8U
Thickness :
0.8mm,1.0mm, 1.2mm
Description

Fiber Optic Terminal Box ODF Box for SC FC LC Fiber Adapters

Description:

The removable front panels chassis is a 19 inch sliding panel in two parts: one sliding chassis and one front panel, which receives the optical adaptors.

The flexibility of its two piece construction allows you to maintain a stock of the chassis and then attach a suitable front panel as required.

The Panel Color is grey and black.

Feature:

Environment temperature:-25℃~+45℃
Fiber bending radium guaranteed more than 40mm:≥40mm
Material: Cold rolled steel
High quality finish,without sharp edges.
With changeable panel for duplex or simplex adapter,easily combination with your real application.

Adoptable adapter types: FC, SC,LC/Duplex.

Application:

The product( 96 core fiber optic termination box) can be used on the terminal of the optical cables,different types and structures,the diameter of which are within 20mm tray.

Specification:

Fixed Type:

Type OTB-RF-1UA OTB-RF-2UA OTB-RF-1UB OTB-RF-1UB OTB-RF-1UC OTB-RF-2UC
Size(mm) 430*250*1U 430*250*1U 482*295*1U 320*240*100 350*340*120 350*340*120
Max capacity(core) 24 48 24 48 24 48
Weight(kg) 2.6 3.8 3 4 3 5

Slidable Type:

Type OTB-RS-1UA OTB-RS-2UA OTB-RS-1UB OTB-RS-2UB OTB-RS-1U-3MPO OTB-RW-1U
Size(mm) 430*300*1U 430*250*2U 482*217*1U 482*217*2U 482*296*1U 430*300*1U
Max capacity(core) 24 48 24 48 36 24
Weight(kg) 3.5 4.0 3.5 4.0 3.0 4.7

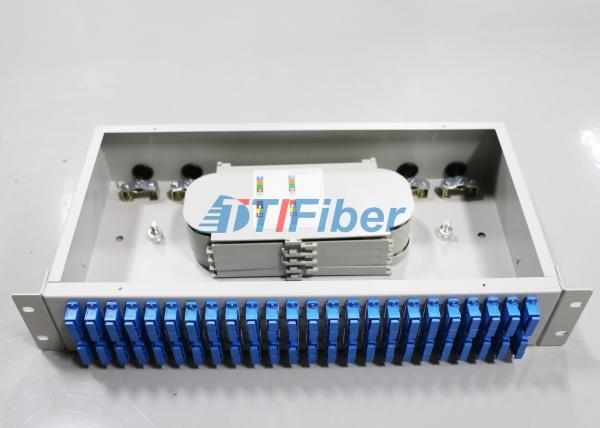

Product Picture:

Fiber Optic Termination Box ODF Box For SC FC LC Fiber Adapters
