1x16 PLC Optical Fiber Splitter For Rack Mounted Fiber Terminal Box
1x16 PLC Optical Fiber Splitter For Rack Mounted Fiber Terminal Box
1x16 PLC Optical Fiber Splitter For Rack Mounted Fiber Terminal Box
1x16 PLC Optical Fiber Splitter For Rack Mounted Fiber Terminal Box
Specifications
Brand Name :
TTI
Model Number :
PLC-box
Certification :
ISO, SGS, ROHS
Place of Origin :
China
MOQ :
10 pcs
Price :
Negotiation
Payment Terms :
T/T, , PayPal
Supply Ability :
8000 pcs/day
Delivery Time :
2-3 days
Packaging Details :
PE bag
Connector Type :
SC,FC,LC,ST
Ferrule End-face :
PC, UPC,APC
Fiber Type :
G652D G657A1 G657A2
Fiber Mode :
Singlmode
Structure :
1*2/1*4/1*8/1*16/1*32/1*64
Type :
19'' Rack mounted
Description

1x16 PLC Fiber Optic Splitter for Rack Mounted Fiber Terminal Box

Description:

PLC Fiber optic splitter is a micro-optical element using photolithographic techniques to form optical waveguide at medium or semiconductor substrate for realizing branch distribution function.

Fiber splitters are available with 1x2, 1x3, 1x4, 1x5, 1x6, 1x8, 1x12, 1x16, 1x18, 1x32 and 1x64 configurations with single mode or multimode fiber and we offer all type connectors of pre-connectorized like SC, FC, ST, LC etc.

Feature:

Low insertion loss

Low polarization dependent loss

High Return Loss

Optional Split Ratio 20/80, 40/60...(50/50 as default.)

Compact for small application areas like in closure or splice trays

Wide Operating Temperature and Wavelength

Excellent Environmental & Mechanical Stability

Qualified Under Telcordia GR-1221 and GR-1209

Application:

FTTX (FTTP, FTTH, FTTN, FTTC)

Passive Optical Networks (PON)

Amplifying, Monitoring System

Test Equipments

Order Information

Local Area Networks (LAN)

CATV Systems

Specification:

Parameters 1x2 2x2 1x4 2x4 1x8 2x8 1x16 2x16 1x32 2x32 1x64 2x64
Wavelength (nm) 1260~1650nm
IL(dB) (P/S Grade) 3.8/4.0 4.1/4.3 7.1/7.3 7.4/7.6 10.2/10.5 10.8/11.0 13.5/13.7 14.3/14.5 16.5/16.9 17.3/17.5 20.5/21.0 20.7/21.5
Loss Uniformity (dB) 0.6 0.8 0.6 0.8 0.8 1.5 1.2 2.0 1.5 2.5 2.5 2.5
RL(dB) (P/S Grade) 55/50
Polarization Dependent Loss (dB) 0.15 0.2 0.15 0.2 0.25 0.3 0.3 0.4 0.3 0.4 0.3 0.4
Directivity (dB) 55
Standard Output Color Blue, Orange, Green, Brown, Grey, White, Red, Black (TIA/EIA 598-B)
Max. Optical Power (mw) 300
Operating Temperature (℃) -40~85
Storage Temperature (℃) -40~85
Mini-Module Dimension (LxWxH) mm 50x4x4 60x7x4 60x12x4 80x20x6 100x40x6

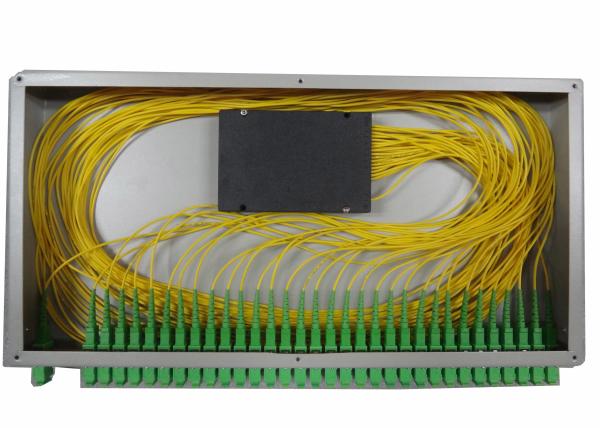

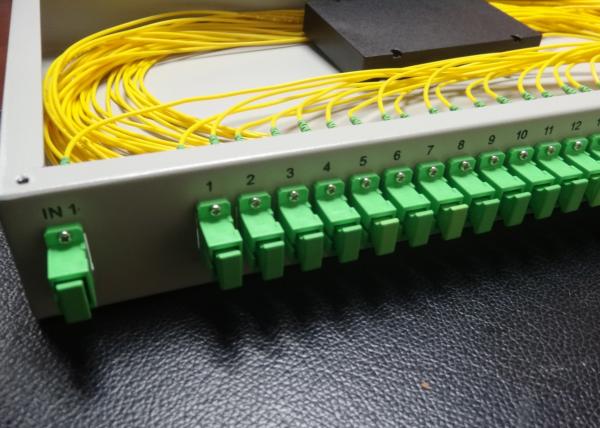

Product Picture:

1x16 PLC Optical Fiber Splitter For Rack Mounted Fiber Terminal Box

Product tags

fiber optic splitter box

,

fiber optic plc splitter

,

optical fiber 1x4 plc splitter
