SC 50um / 62.5um FTTH Network Fiber Fast Connector High Return Loss
SC 50um / 62.5um FTTH Network Fiber Fast Connector High Return Loss
SC 50um / 62.5um FTTH Network Fiber Fast Connector High Return Loss
SC 50um / 62.5um FTTH Network Fiber Fast Connector High Return Loss
SC 50um / 62.5um FTTH Network Fiber Fast Connector High Return Loss
SC 50um / 62.5um FTTH Network Fiber Fast Connector High Return Loss
Specifications
Brand Name :
TTI
Model Number :
FSC-002
Certification :
ISO, SGS, ROHS
Place of Origin :
China
MOQ :
10 pcs
Price :
Negotiation
Payment Terms :
T/T, , PayPal
Supply Ability :
8000 pcs/day
Delivery Time :
2-3 days
Packaging Details :
PE bag
Connector Type :
SC
Ferrule End-face :
UPC,APC
Fiber Type :
Multimode
Cable Type :
Simplex
Cable OD :
0.9/2.0/3.0mm
Housing Color :
Blue, Green, Beige
Insertion Loss :
<0.3dB
Return Loss :
>50dB
Description

FTTH Network SC 50um / 62.5um Fiber Fast Connector High Return Loss

Description:

The fast connector is designed for high quality and high efficiency for installation.

The structure of crimping position is a unique design, and need not gluing, polishing neither any consumables.

Could be reused, and convenient for field installation.

Adopted fiber pre-installed structure.

Features:

Accurate mechanical dimension

Low insertion loss

High return loss

Match to IEC61754-4

All material match to ROHS

Application:

Use for open FTTH Optical terminal to end.

Connection in closure, cabinet, terminal box etc.

Recovery and maintenance in the accident like fiber cut situation.

LAN, WAN, data and video transmission.

Construction and maintenance in the FTTX of terminal user

Fiber to mobile base station.

Life Time: Our fiber optic fast connector have at least 15 years lifetime, because we introduce advanced production technolege and100% NEW raw materials, well control fiber optic fast connector's quality.

Specification:

Item

Parameter

Cable

3.1x2.0mm drop cable or 3.0/2.0/0.9mm cable

Coating Diameter

250μm

Mode

SM, MM

Insertion Loss

≤ 0.3dB

Return Loss

SM: ≥45dB; MM: ≥35dB

Reusable Times

>10 times

Tensile Strength

>50 N

Temperature

-40~+85°C


FTTH Fast Connector Package:

The package will be packed according to standard export requirements, customer satisfication is our target.

Label printed: Customer logo or None brand are available

Inner packing: 10pcs/PE box

Outer packing: the carton will be packed with sack, well protect carton from dust and wet.

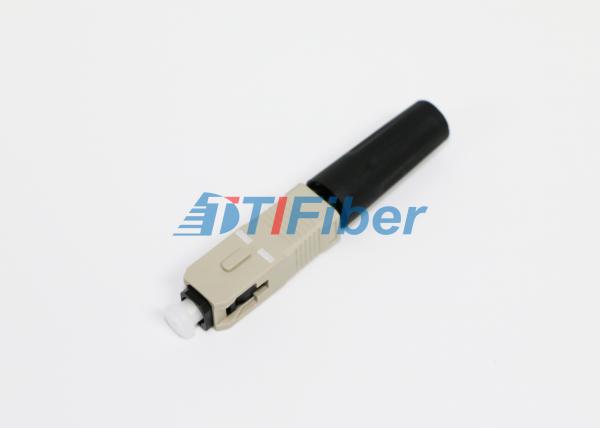

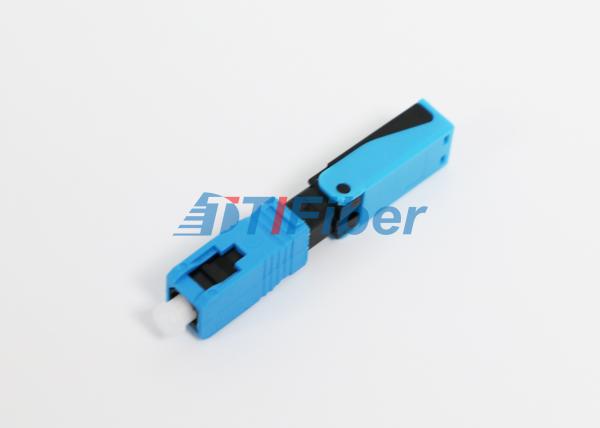

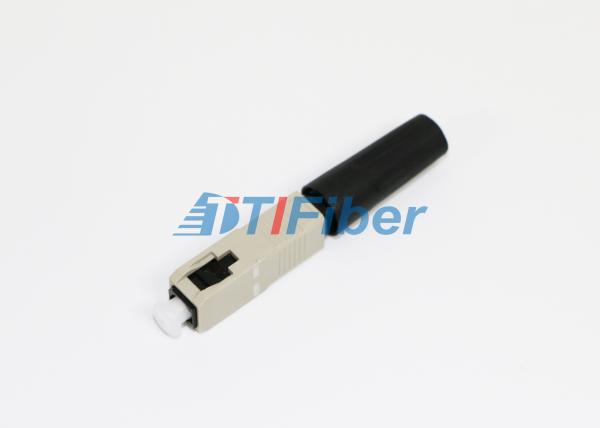

Product Picture:

SC 50um / 62.5um FTTH Network Fiber Fast Connector High Return Loss
