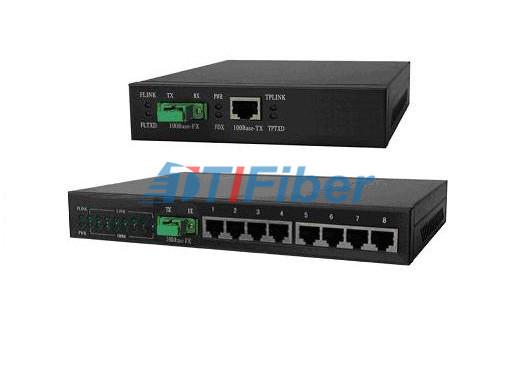

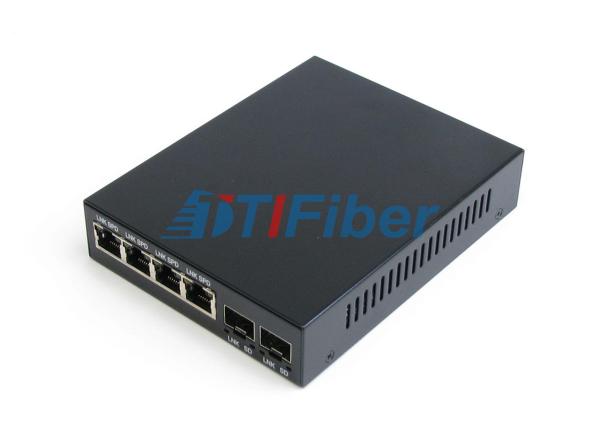

10/100/1000M 2KM Optical Fiber Media Converter for FC Connector

Description:

Fiber media converter is the network communication device that realizing smooth network upgrade without any additional cost.

It is high-performance, cost effective and flexible solutions for a wide range of applications in the field of LAN campus network.

It completely conforms to 10Base-T, 100Base-TX, 100Base-FX and IEEE 802.3x standards, and can connect with Person Computer, SERVER, HUB and SWITCH.

Features:

Card-type or Stand-alone type for your choice; suitable for concentration management in 2U Racks

Broadcasting filtration function, automatic recognizing and modifying address with Store-and-transmission

Broadcasting filtration function, automatic recognizing and modifying address with Store-and-transmission operational mechanism

Cache size for 512KB, address table size is 4KB

Ethernet 10base-t or 100Base - TX 100Base - FX fiber media transition

Supporting IEEE802.3, IEEE802.3U, IEEE802.3X, IEEE 802.3z/AB, IEEE802.1d

Supporting full duplex flow control or half duplex backpressure flow control, with auto negotiation function

Electricity support 100Mbps,10Mbps, both ends can use different speed (full-duplex work bandwidth for line-speed 2XMbps)

Provide a link loss diagnosis, electric link and light links diagnosis, dynamic data transmission,full-duplex/half-duplex, speed indicator

Provide double RJ - 45 electrical automatic cross connection, connect switchboard, concentrator

Optical fiber interface properties is good, good compatibility and high reliability

Provide complete after-sales service and five years for maintenance services

Application:

Converts Ethernet to fiber, fiber to copper/Ethernet, ensuring optimum network scalability for connecting two or more Ethernet network nodes (e.g. connecting two buildings on the same campus)

Designed to provide high-speed bandwidth for demanding large scale work groups that require expansion of Gigabit Ethernet Network

Extend your Ethernet connection up to 0~120km away using fiber optics

Creates an economical Ethernet-fiber/copper-fiber link for connecting remote sub-networks to larger fiber optic networks/backbones

Specification:
