6 ports Fiber Optic Splice Closure for Telecommunication Network
6 ports Fiber Optic Splice Closure for Telecommunication Network
6 ports Fiber Optic Splice Closure for Telecommunication Network
6 ports Fiber Optic Splice Closure for Telecommunication Network
6 ports Fiber Optic Splice Closure for Telecommunication Network
6 ports Fiber Optic Splice Closure for Telecommunication Network
Specifications
Brand Name :
TTI
Model Number :
FOSC-D001
Certification :
ISO, SGS, ROHS
Place of Origin :
China
MOQ :
10 pcs
Price :
Negotiation
Payment Terms :
T/T, , PayPal
Supply Ability :
40000 pcs/Month
Delivery Time :
3-5 days
Packaging Details :
Box
Structure :
Dome Type
Max Capacity :
96 core
Material :
PC, ABS, MP
Color :
Black, White, Grey
Port :
2 in, 2 out
Size :
Φ190*310mm
Description

6 ports Fiber Optic Splice Closure for Telecommunication Network

Description:

TTI Fiber supplies two types of fiber splice closures which are the horizontal (inline) type and the vertical (dome) type. Both are made of excellent engineering plastics to be waterproof and dust proof. And with various ports types, they can fit different fiber optic core numbers.

TTI's Fiber Splice Closure is suitable for protecting optical fiber splices in straight through and branching applications, and can be used in aerial, duct and direct buried fiber optic cable projects.

Feature:

Elastic integrated seal fitting

Protection grade is IP 65.

Advanced internal structure design

Easy to re-enter, it never requires re-entry kits

Slide-in-lock design ,over 90º opening angle tray

Earthling deriving device can be installed on the house of FOSC

Application:

Be suitable for Aerial and Duct

CATV environment

Telecommunications

Customer premises environments

Carrier Networks and fiber optic networks

Aerial –hanger, Wall-mounting, Directly buried

Data communications networks

Local area networks

Technical Paremeter:

Working temperature: -5℃ to +40℃

Relative humidity: ≤85% (at +30℃)

Atmospheric pressure: 70Kpa~106Kpa

Specification:

Type FOSC-D001 FOSC-D002 FOSC-D003 FOSC-D004 FOSC-D005 FOSC-D006
Size(mm) Φ190*310 Φ190*410 Φ190*435 Φ210*540 Φ230*435 Φ230*550
Cable diameter(mm) Φ 8 – Φ 20 Φ 7 – Φ 22 Φ 7 – Φ 22 Φ 7 – Φ 22 Φ 10 – Φ 22 Φ 7 – Φ 22
Max splice tray(pcs) 4 4 4 4 6 6
Max capacity(core) 48 96 96 96 144 144
Cable port 2 in, 2 out 2 in, 2 out 2 in, 2 out 3 in, 3 out 3 in, 3 out 4 in, 4 out
Sealing structure Heat shrinkable Screw thread mechanical Heat shrinkable Heat shrinkable Screw thread mechanical Heat shrinkable
Weight(kg) 1.9 2.5 2.4 3.5 3.2 2.7

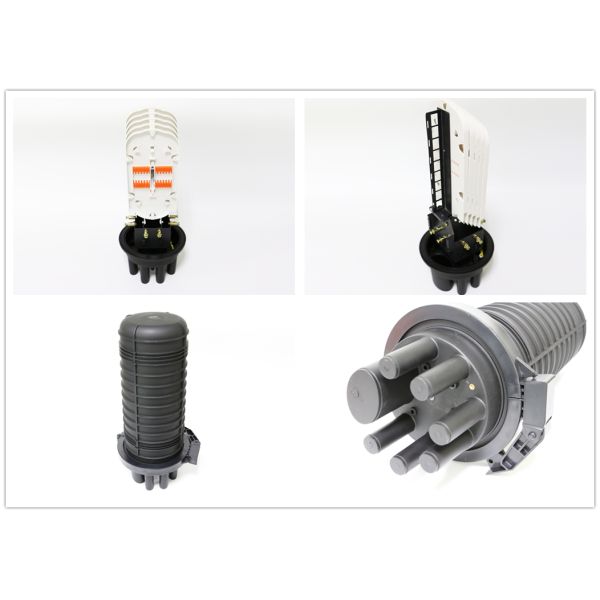

Picture:

6 ports Fiber Optic Splice Closure for Telecommunication Network
