MU Simplex Duplex Fiber Optic Connector for OM3 OM4 Fiber Optic Cable
MU Simplex Duplex Fiber Optic Connector for OM3 OM4 Fiber Optic Cable
MU Simplex Duplex Fiber Optic Connector for OM3 OM4 Fiber Optic Cable
MU Simplex Duplex Fiber Optic Connector for OM3 OM4 Fiber Optic Cable
Specifications
Brand Name :
TTI
Model Number :
FOC-MU
Certification :
ISO, SGS, ROHS
Place of Origin :
China
MOQ :
10 pcs
Price :
Negotiation
Payment Terms :
T/T, , PayPal
Supply Ability :
8000 pcs/day
Delivery Time :
2-3 days
Packaging Details :
PE bag
Connector Type :
MU
Ferrule End-face :
PC, UPC,APC
Fiber Type :
Singlemode, Multimode
Cable Type :
Simplex, Duplex
Cable OD :
0.9/2.0/3.0mm
Housing Material :
Plastic
Insertion Loss :
<0.3dB
Return Loss :
>50dB(SM), >35dB(MM)
Description

MU Simplex Duplex Fiber Optic Connector for OM3 OM4 Fiber Optic Cable

Description:

MU looks a miniature SC with a 1.25 mm ferrule.

Features:

Easy installation

Good durability

Good temperature performance

Precision mechanical dimension

Boots in a variety of colors

Application:

Fiber optic data transmission

Optical access network

Fibre to the Subscriber (FTTx) applications

Fiber optic equipment

Specification:

Item SM(Single Mode) MM(Multimode)
Fiber Cable Type G652/G655/G657 OM1 OM2/OM3/OM4
Fiber Diameter (um) 9/125 62.5/125 50/125
Cable OD (mm) 0.9/1.6/1.8/2.0/2.4/3.0
Endface Type PC UPC APC UPC UPC
Typical Insertion Loss (dB) <0.2 <0.15 <0.2 <0.1 <0.1
Return Loss (dB) >45 >50 >60 /
Insert-pull Test (dB) <0.2 <0.3 <0.15
Interchangeability (dB) <0.1 <0.15 <0.1
Anti-tensile Force (N) >70
Temperature Range (℃) -40~+80
Order Information:

Connector type: FC, SC, LC, ST.
Ferrule End-face: PC, UPC, APC.
Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um).
Cable Quantity: Simplex, Duplex.
Cable Diameter: φ3.0mm,φ2.0mm, φ0.9mm.

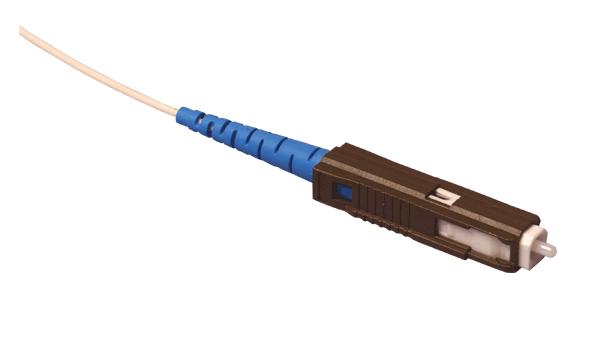

Product Picture:

MU Simplex Duplex Fiber Optic Connector for OM3 OM4 Fiber Optic Cable
