SMA 905 Fiber Optic Connector with Ceramic / Metal Fiber Ferrule
SMA 905 Fiber Optic Connector with Ceramic / Metal Fiber Ferrule
SMA 905 Fiber Optic Connector with Ceramic / Metal Fiber Ferrule
SMA 905 Fiber Optic Connector with Ceramic / Metal Fiber Ferrule
SMA 905 Fiber Optic Connector with Ceramic / Metal Fiber Ferrule
SMA 905 Fiber Optic Connector with Ceramic / Metal Fiber Ferrule
Specifications
Brand Name :
TTI
Model Number :
FOC-SMA
Certification :
ISO, SGS, ROHS
Place of Origin :
China
MOQ :
10 pcs
Price :
Negotiation
Payment Terms :
T/T, , PayPal
Supply Ability :
8000 pcs/day
Delivery Time :
2-3 days
Packaging Details :
PE bag
Connector Type :
SMA
Ferrule End-face :
PC, UPC
Fiber Type :
Singlemode, Multimode
Cable Type :
Simplex
Cable OD :
0.9/2.0/3.0mm
Housing material :
Metal
Insertion Loss :
<0.3dB
Return Loss :
>50dB
Description

SMA 905 Fiber Optic Connector with Ceramic / Metal Fiber Ferrule

Description:

Amphenol developed the SMA fiber connector from the "Subminiature A" hence SMA, microwave connector.

The model 905 had a machined ferrule exactly 1/8 inch in diameter that mated in a machined adapter.

When the adapters were not precise enough for better fibers, a necked-down ferrule that mated with a Delrin adapter for better insertion loss performance.

These connectors are still in use on some military and industrial systems.

Features:

Low insertion loss

High back reflection loss
Stable capability and high reliability

Precision mechanical dimension

Application:

Telecom network

Wide area networks
Optical test equipment

Local area networks

Specification:

Paramter Singlemode(PC) Singlemode(APC) Multimode (PC)
Insertion loss ≤0.2 dB ≤0.2dB ≤0.2dB
Return Loss ≥50 dB ≥65 dB ≥35 dB
Operating Temperature -40°C to +80°C -40°C to +80°C -40°C to +80°C
Order Information:
Item Connector Description Item Connector Description
PC/UPC/APC PC/UPC/APC
Connector Singlemode 9/125 ST Connector Multimode (50/125 or 62.5/125) ST
SC SC
FC FC
LC LC
MU MU
MTRJ(female) MTRJ(female)
MTRJ(male) MTRJ(male)
DIN

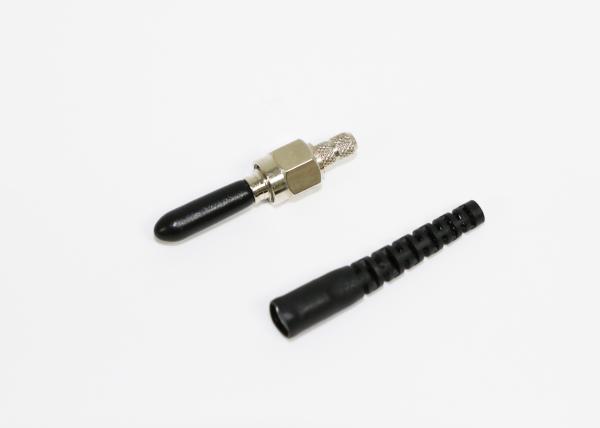

Product Picture:

SMA 905 Fiber Optic Connector with Ceramic / Metal Fiber Ferrule
