SC OM1 OM2 Fiber Optic Cable Connector Telecome Class For 0.9mm Cable
SC OM1 OM2 Fiber Optic Cable Connector Telecome Class For 0.9mm Cable
SC OM1 OM2 Fiber Optic Cable Connector Telecome Class For 0.9mm Cable
SC OM1 OM2 Fiber Optic Cable Connector Telecome Class For 0.9mm Cable
SC OM1 OM2 Fiber Optic Cable Connector Telecome Class For 0.9mm Cable
SC OM1 OM2 Fiber Optic Cable Connector Telecome Class For 0.9mm Cable
Specifications
Brand Name :
TTI
Model Number :
FOC-SC
Certification :
ISO, SGS, ROHS
Place of Origin :
China
MOQ :
10 pcs
Price :
Negotiation
Payment Terms :
T/T, , PayPal
Supply Ability :
8000 pcs/day
Delivery Time :
2-3 days
Packaging Details :
PE bag
Connector Type :
SC
Ferrule End-face :
PC, UPC,APC
Fiber Type :
Singlemode, Multimode
Cable Type :
Simplex, Duplex
Cable OD :
0.9/2.0/3.0mm
Housing Color :
Blue, Green, Beige
Insertion Loss :
<0.3dB
Return Loss :
>50dB
Description

SC OM1 OM2 Fiber Optic Connector Telecome Class for 0.9mm Cable

Description:

SC fiber connector is a snap-in connector also with a 2.5 mm ferrule that is widely used for it's excellent performance. It was the connector standardized in TIA-568-A.

Features:

Good durability

Good temperature performance

Easy installation

Competitive price

Precision mechanical dimension

Boots in a variety of colors

Application:

Fiber Optic Telecommunications

FTTH (Fiber To The Home)

CATV & CCTV

Data Processing Networks

Telecom Equipment

Local Area Networks

Specification:

Item Single Mode Multi Mode
Insertion Loss ≦0.2dB ≦0.3bB
Insert-Pull Test 1000 times
Operating Temperature -40°C ~ +85°C
Ceramic Ferrule Specification 125.5um concentricity deviations:≦1um 127um concentricity deviations:≦3um
Suitable Fiber 9/125um 50/125um,62.5/125um
Order Information:
Item Connector Description Item Connector Description
PC/UPC/APC PC/UPC/APC
Connector Singlemode 9/125 ST Connector Multimode (50/125 or 62.5/125) ST
SC SC
FC FC
LC LC
MU MU
MTRJ(female) MTRJ(female)
MTRJ(male) MTRJ(male)
DIN

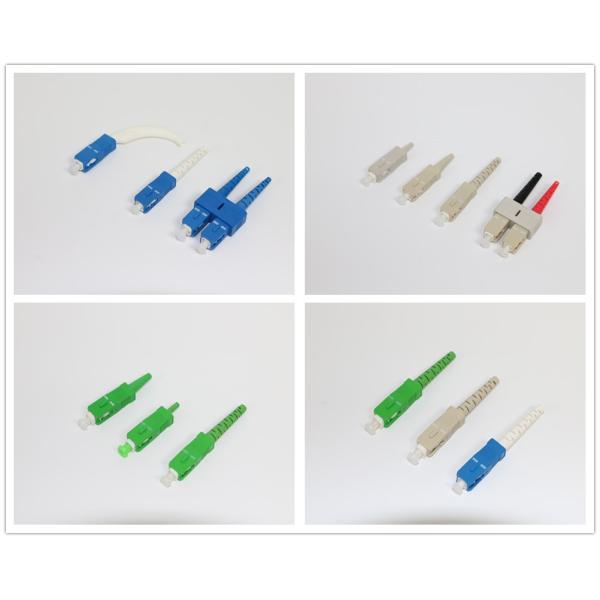

Product Picture:

SC OM1 OM2 Fiber Optic Cable Connector Telecome Class For 0.9mm Cable
