FC LC ST Multimode Fiber Connectors / Fiber Optic Sc Connector
FC LC ST Multimode Fiber Connectors / Fiber Optic Sc Connector
FC LC ST Multimode Fiber Connectors / Fiber Optic Sc Connector
FC LC ST Multimode Fiber Connectors / Fiber Optic Sc Connector
FC LC ST Multimode Fiber Connectors / Fiber Optic Sc Connector
FC LC ST Multimode Fiber Connectors / Fiber Optic Sc Connector
Specifications
Brand Name :
TTI
Model Number :
FSC-002
Certification :
ISO, SGS, ROHS
Place of Origin :
China
MOQ :
10 pcs
Price :
Negotiation
Payment Terms :
T/T, , PayPal
Supply Ability :
8000 pcs/day
Delivery Time :
2-3 days
Packaging Details :
PE bag
Connector Type :
SC,FC,LC,ST
Ferrule End-face :
UPC,APC
Fiber Type :
SM,MM,OM3,OM4
Cable Type :
Simplex
Cable OD :
0.9/2.0/3.0mm
Housing Color :
Blue, Green
Insertion Loss :
<0.3dB
Return Loss :
>50dB
Description


SC Multimode Field Fast Connector with Excellent Mechanical Capability

Features:

Low insertion loss and high return loss

Using high precision ceramic ferrule

Stable capability and high reliability

Excellent mechanical capability

Boots in a variety of colors

Application:

Local Area Network

Data communication network

Active device termination

Optical access network(OAN)

Fiber optics data transmission(FODT)

Life Time: Our fiber optic fast connector have at least 15 years lifetime, because we introduce advanced production technolege and100% NEW raw materials, well control fiber optic fast connector's quality.

Specification:

Item

Parameter

Cable

3.1x2.0mm drop cable or 3.0/2.0/0.9mm cable

Coating Diameter

250μm

Mode

SM, MM

Insertion Loss

≤ 0.3dB

Return Loss

SM: ≥45dB; MM: ≥35dB

Reusable Times

>10 times

Tensile Strength

>50 N

Temperature

-40~+85°C


FTTH Fast Connector Package:

The package will be packed according to standard export requirements, customer satisfication is our target.

Label printed: Customer logo or None brand are available

Inner packing: 10pcs/PE box

Outer packing: the carton will be packed with sack, well protect carton from dust and wet.

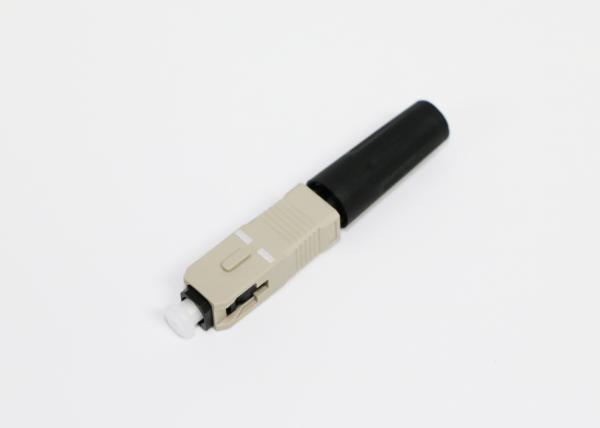

Product Picture:

FC LC ST Multimode Fiber Connectors / Fiber Optic Sc Connector
