Single mode Armoured Indoor Fiber Optic Cable with LSZH / Steel Tube
Features:
Good mechanical and environmentai characteristics;
Soft, flexible, solid, easy to splice ,It’s especially applied to optical long-distance, field, building wiring, trunking connectors;
Flame retardant characteristics and the meet the requirements of relevant standards;
Meet various requirements market and clients.
Applications:
Used in all kinds of general optical
Use in pigtails and patch cords
Used in connectors in optical communication equipment rooms and optical distribution frames
Used as optical apparatus connectors
Cable Parameter:
The corresponding dimension of the whole fiber optic cable (table 1)
Cable type | Cable Diameter mm | Stainless steel tube diameter mm | Tight-buffered fiber diameter mm |
2.0GJSJV | Φ2.0±0.1 | Φ0.9±0.05 | Φ0.5 |
3.0GJSJV | Φ3.0±0.1 | Φ1.41±0.05 | Φ0.9 |
The corresponding dimension of the whole fiber optic cable (table 2)
Cable type | Cable Diameter (mm) | Cable weight KG/KM | Tensile N | Bend radius (mm)* | Crush N/100mm | ||
Short time | Long time | dynamic | static | ||||
2.0GJSJV | Φ2.0±0.1 | 6.5 | 200 | 100 | 20 | 10 | 4500 |
3.0GJSJV | Φ3.0±0.1 | 10.5 | 200 | 100 | 30 | 15 | 4500 |
All the values in the table 2 , which are for reference only
Using fiber of G657 series , the bending radius will be less than 15mm

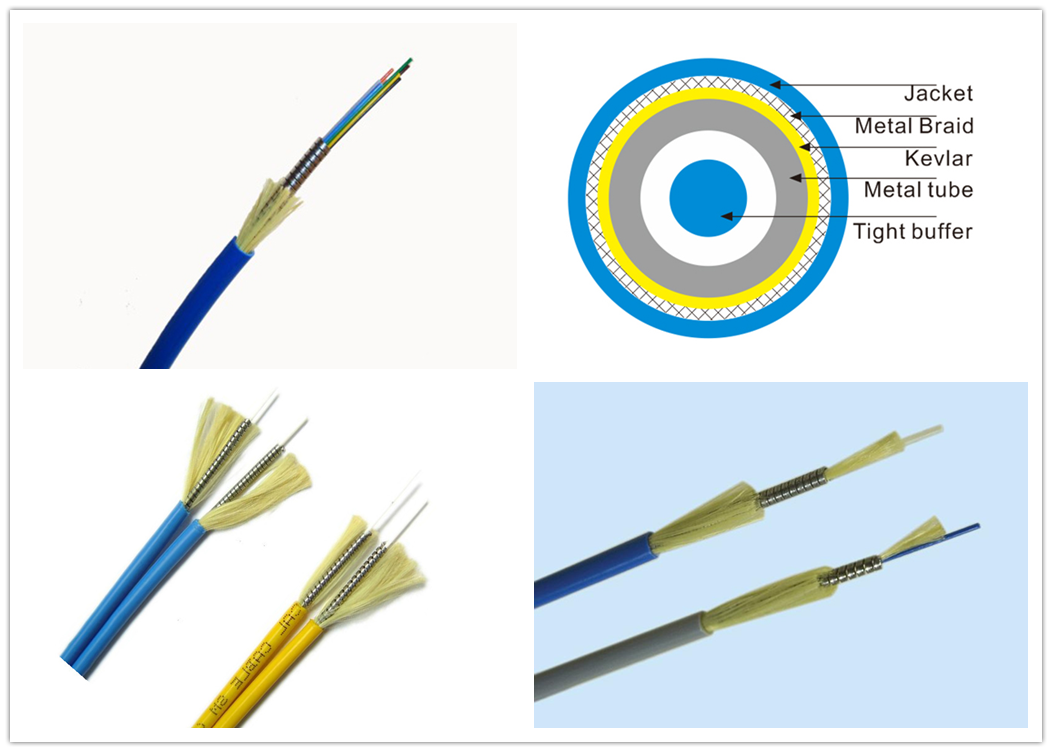

Product Picture:
