LC-SC Multimode Fiber Patch Cable Optical Fiber Jumper 2mm Orange Duplex Jacket 3M
LC-SC Multimode Fiber Patch Cable Optical Fiber Jumper 2mm Orange Duplex Jacket 3M
LC-SC Multimode Fiber Patch Cable Optical Fiber Jumper 2mm Orange Duplex Jacket 3M
LC-SC Multimode Fiber Patch Cable Optical Fiber Jumper 2mm Orange Duplex Jacket 3M
LC-SC Multimode Fiber Patch Cable Optical Fiber Jumper 2mm Orange Duplex Jacket 3M
LC-SC Multimode Fiber Patch Cable Optical Fiber Jumper 2mm Orange Duplex Jacket 3M
Specifications
Brand Name :
TTI
Model Number :
LC-SC-MM-DX
Certification :
ISO, SGS, ROHS
Place of Origin :
China
MOQ :
20 pcs
Price :
Negotiation
Payment Terms :
T/T, , PayPal
Supply Ability :
8000 pcs/day
Delivery Time :
2-3 days
Packaging Details :
PE bag/Cartons
Connector Type :
LC-SC
Ferrule End-face :
UPC
Fiber Type :
MM(50/125)
Cable Type :
Duplex
Cable OD :
2.0mm
Cable Jacket :
PVC/LSZH/OFNR outer jacket
Cable Length :
1M, 2M, 3M or customized
Cable Color :
Customized
Description

Multimode 50/125 Fiber Optic Jumper 2mm Orange Duplex Jacket 3M


Description:

Fiber optic patch cords have 3 types of ferrule end-face: PC, UPC and APC.

Fiber Optic Jumper is a length of optical fiber with two ends adding connectors to connect beam path.


Features:

FTTH , CATV, LAN, MAN, WAN, Test &Measuremen
Video transmission , Data transmission
Active Device Termination
Premise Installations
Telecommunication and Data processing Networks
Industrial, medical & military
Systems Integration for Long Haul, Metro and Access Network
FC, SC, ST, LC, MU, MTRJ, DIN, D4, SMA, etc. connectors optional


Application:

Simplex and Duplex assemblies available
Singlemode and multimode available
PC, UPC and APC polishing available
Hybrid patch cords are available upon request
Fan-out available (Ribbon type / bundle type)
Pigtail available
Loopback available
Customized lengths upon request
100% tested before shipment


Specification:

Specification

Unit

FC, SC, LC/Armored Cable

ST, MU

MT-RJ, MPO

SM

MM

SM

MM

SM

MM

PC

UPC

APC

PC

PC

UPC

PC

PC

UPC

PC

Insertion loss

dB

≤0.3

≤0.2

≤0.3

≤0.2

≤0.3

≤0.2

≤0.2

≤0.3

≤0.2

≤0.2

Return loss

dB

≥45

≥50

≥60

≥30

≥45

≥50

≥30

≥45

≥50

≥35

Wavelength

nm

850,1310

850,1310

850,1310

Interchangeability

dB

≤0.2

≤0.2

≤0.2

Vibration

dB

≤0.2

≤0.2

≤0.2

Operating temperature

°C

-40~75

-40~75

-40~75

Storage temperature

°C

-45~85

-45~85

-45~85

Cable diameter

mm

φ3.0,φ2.0,φ0.9

φ3.0,φ2.0,φ0.9

φ3.0,φ2.0,φ0.9

Order Information:

LC/UPC-SC/UPC-MM(50/125)-DX-2.0mm-5M

LC

/

UPC

—

SC

/

UPC

/

MM

—

DX

/

2.0

—

5M

1

2

3

2

4

5

6

7

1

Connector#1: LC, SC, FC, ST, DIN, D4, MU, MTRJ, etc.

2

Lapping Way: UPC&APC (For MTRJ, F=Female, M=Male)

3

Connector#2: LC,SC,FC,ST,DIN,D4,MU,MTRJ,Pigtail,etc.

4

Cable Type: SM(9/125μm) ,MM(50/125μm & 62.5/125μm), OM3, OM4

5

Fiber Number: SX(Simplex) or DX(Duplex), 2/4/6/8 core...

6

Cable Diameter: 2.0=Ø2.0mm, 3.0=Ø3.0mm, 0.9=Ø0.9mm, etc.

7

Cable Length: 1m, 2M...(Length in meter)

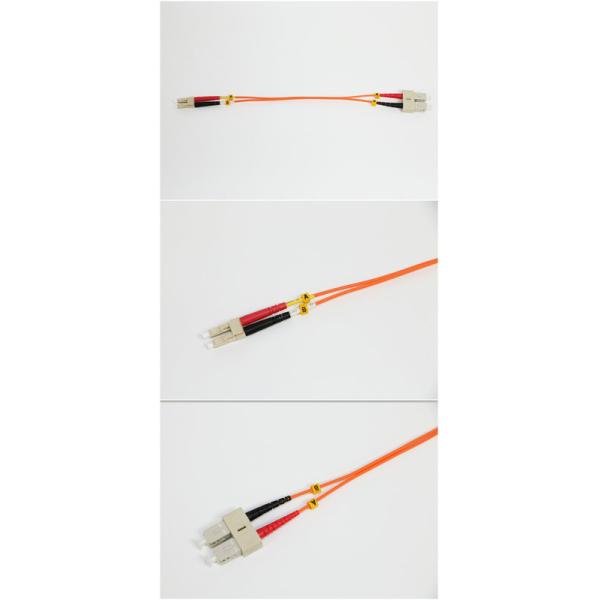

Product Picture:

LC-SC Multimode Fiber Patch Cable Optical Fiber Jumper 2mm Orange Duplex Jacket 3M
