ST UPC Fiber Optic Patch Cord OM2 62.5 With ROHS Optical Cable Fiber Optic Jumper
ST UPC Fiber Optic Patch Cord OM2 62.5 With ROHS Optical Cable Fiber Optic Jumper
ST UPC Fiber Optic Patch Cord OM2 62.5 With ROHS Optical Cable Fiber Optic Jumper
ST UPC Fiber Optic Patch Cord OM2 62.5 With ROHS Optical Cable Fiber Optic Jumper
ST UPC Fiber Optic Patch Cord OM2 62.5 With ROHS Optical Cable Fiber Optic Jumper
ST UPC Fiber Optic Patch Cord OM2 62.5 With ROHS Optical Cable Fiber Optic Jumper
Specifications
Brand Name :
TTI
Model Number :
ST/LC/SC
Certification :
ISO, SGS, ROHS
Place of Origin :
China
MOQ :
20 pcs
Price :
Negotiation
Payment Terms :
T/T, , PayPal
Supply Ability :
8000 pcs/day
Delivery Time :
2-3 days
Packaging Details :
PE bag
Connector Type :
SC LC ST
Ferrule End-face :
UPC
Fiber Type :
OM1/OM2/OM3/OM4
Cable Type :
Simplex/Duplex
Cable OD :
0.9/2.0/3.0mm
Cable Jacket :
PVC/LSZH/OFNR/OFNP outer jacket
Cable Length :
1M, 2M, 3M or customized
Cable Color :
Orange, Yellow, Aqua, Purple, Violet or customized
Description


ST UPC Fiber Optic Patch Cord OM2 62.5 with ROHS Optical Cable


Description:

Fiber Patch Cords are a length of optical fiber with two ends adding connectors to connect beam path. Fiber Pigtail is a length of fiber permanently attached connector only at one end.

Features:


High return loss
Low insertion loss
OFNR, OFNP, LZSH or PVC jacket
CCTC A Type optical fiber Ferrule
Fan-out available (Ribbon type / bundle type)
Hybrid patch cords are available upon request

Customized Lengths Upon Request

Application:

CATV

Optical fiber communication systems

Optical fiber data transmission

Building network access

Cabling system, ODF

FTTX applications


Specification:

Item Single mode Multi mode
Splicing Type UPC APC PC
Insertion Loss <=0.3dB <=0.2dB <=0.3dB
Reture Loss >=45dB >=55dB >=35dB
Repeatability <=0.1dB <=0.1dB <=0.1dB
Temperature -40/+80°C

ITEM CABLE OD.
mm(a)		 CABLE
WEIGHT
(kg)		 MAXIMUM TENSILE BEND RADIUS L.P.
N/100mm
S.T. L.T. Dyn. Sta
2.0MM Φ2.0±0.1 13 200 100 50 30 4500
2.8MM Φ2.8±0.1 21 500 250 60 30 3500
3.0MM Φ3.0±0.1 22 600 300 60 30 3500


Competitive Advantage:

Zero-Defects QA Program
High Quality Materials
Advanced Equipment & Tooling
In-house Engineering
Expert Technical Support
100% Product Testing
100% Product Guarantee
Fast Turn Around
Same-Day Manufacturing Available

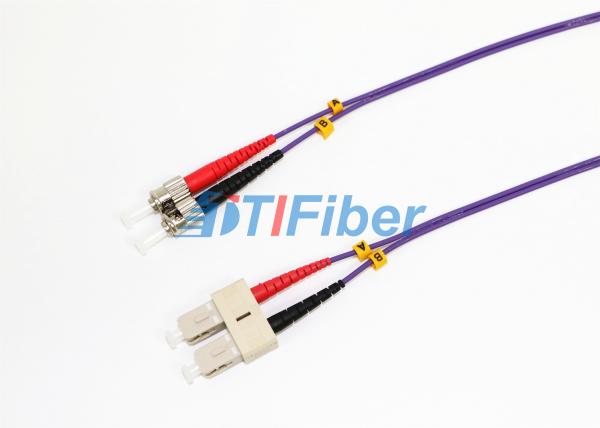

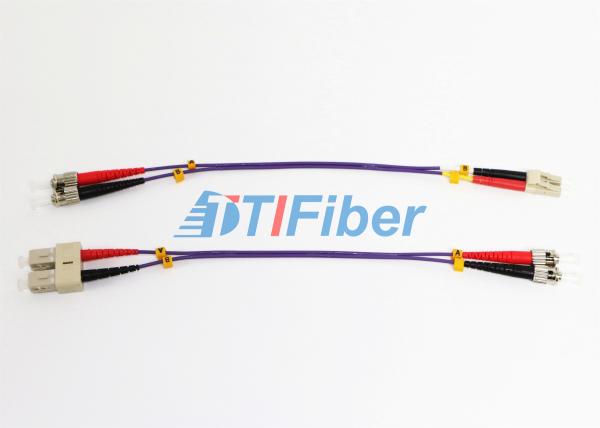

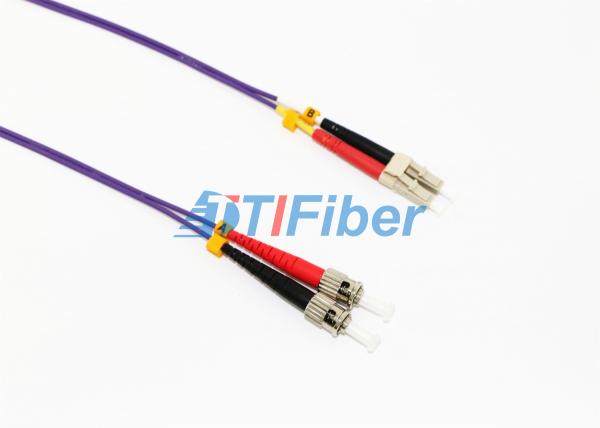

Product Picture:

ST UPC Fiber Optic Patch Cord OM2 62.5 With ROHS Optical Cable Fiber Optic JumperST UPC Fiber Optic Patch Cord OM2 62.5 With ROHS Optical Cable Fiber Optic Jumper
