LC OM3 50/125um Duplex Fiber Optic Patch Cord Aqua Color Lc Sc Fiber Patch Cable
LC OM3 50/125um Duplex Fiber Optic Patch Cord Aqua Color Lc Sc Fiber Patch Cable
LC OM3 50/125um Duplex Fiber Optic Patch Cord Aqua Color Lc Sc Fiber Patch Cable
LC OM3 50/125um Duplex Fiber Optic Patch Cord Aqua Color Lc Sc Fiber Patch Cable
LC OM3 50/125um Duplex Fiber Optic Patch Cord Aqua Color Lc Sc Fiber Patch Cable
LC OM3 50/125um Duplex Fiber Optic Patch Cord Aqua Color Lc Sc Fiber Patch Cable
Specifications
Brand Name :
TTI
Model Number :
LC-SC-OM3
Certification :
ISO, SGS, ROHS
Place of Origin :
China
MOQ :
20 pcs
Price :
Negotiation
Payment Terms :
T/T, , PayPal
Supply Ability :
8000 pcs/day
Delivery Time :
2-3 days
Packaging Details :
PE bag
Connector Type :
LC SC
Ferrule End-face :
UPC
Fiber Type :
OM3 50/125um
Cable Type :
Duplex
Cable OD :
3.0mm
Cable Jacket :
PVC/LSZH outer jacket
Cable Length :
1M, 2M or customized
Cable Color :
Aqua color or customized
Description

LC OM3 50/125um Duplex Fiber Optic Patch Cord , Aqua color cable


Description:

Optical patch cord is a length of optical fiber with two ends adding connectors to connect beam path.

TTI patch cords assembled with various types of connectors (such as FC, SC, ST, LC, MU, MTRJ,MPO etc.)

There are three kinds of polishing ferrule end-face: PC, UPC and APC .We employ advanced technique and equipment to manufacture so as to ensure the high quality of mass production.

Features:

Low Insertion Loss
High Return Loss
Good Repeatability
Good Exchangeability
High Temperature Stability

Application:

Optical Fiber Communication Systems
Optic-fiber Data Communications
Optic-fiber Data Communications
Optic-fiber Access Networks
LAN Optic-fiber Sensors

Specification:

Multimode fiber optic patch cord

Fiber type

OM1(62.5/125μm) ; OM2(50/125μm) ;

OM3(50/125μm-150; 50/125μm-300)

Operating Wavelength

850 nm

Jacket material

PVC/LSZH/OFNP

Diameter of fiber

0.9/2.0/3.0mm

Contector

SC LC or customized

polishing method

PC

UPC

APC

Insertion loss (IL)

≤0.2dB

≤0.2

≤0.3

Return loss (RL)

≥45dB

≥50dB

≥60dB

Repetitiveness

≤0.1dB

Exchangeability

≤0.2

Durability

>1000 times

Operating Temperature(ºC)

-40~85

Storage Temperature(ºC)

-40~85

length

customized


Order Information:

Fiber Optic Patch Cord

Connector Type

Ceramic Ferrule
End Face

Cable Diameter

Simplex/Duplex

Single mode
/Multi-mode

Length

FCPC/UPC/APCΦ0.9, Φ2,Φ3Simplex/DuplexSM/MMCustomized
SCPC/UPC/APCΦ0.9, Φ2,Φ3Simplex/DuplexSM/MMCustomized

ST

PC/UPC

Φ0.9, Φ2,Φ3

Simplex/Duplex

SM/MM

Customized

LC

PC/UPC

Φ0.9, Φ2

Simplex/Duplex

SM/MM

Customized

MU

PC/UPC

Φ0.9, Φ2

Simplex/Duplex

SM/MM

Customized

MTRJ

PC/UPC

Φ0.9, Φ2

Duplex

SM/MM

Customized

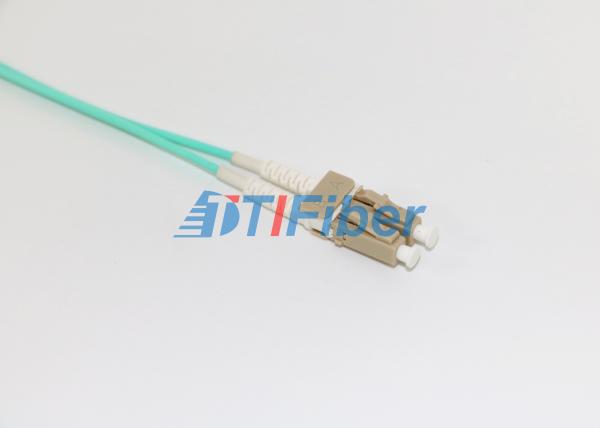

Product Picture:
LC OM3 50/125um Duplex Fiber Optic Patch Cord Aqua Color Lc Sc Fiber Patch CableLC OM3 50/125um Duplex Fiber Optic Patch Cord Aqua Color Lc Sc Fiber Patch Cable
