LC Single Mode Pigtail Optical Fiber With 12 Core Ribbon Fiber Cable
LC Single Mode Pigtail Optical Fiber With 12 Core Ribbon Fiber Cable
LC Single Mode Pigtail Optical Fiber With 12 Core Ribbon Fiber Cable
LC Single Mode Pigtail Optical Fiber With 12 Core Ribbon Fiber Cable
LC Single Mode Pigtail Optical Fiber With 12 Core Ribbon Fiber Cable
LC Single Mode Pigtail Optical Fiber With 12 Core Ribbon Fiber Cable
Specifications
Brand Name :
TTI/OEM/ODM
Model Number :
LC-SM
Certification :
ISO, SGS, ROHS
Place of Origin :
China
MOQ :
20 pcs
Price :
Negotiation
Payment Terms :
T/T, , PayPal
Supply Ability :
8000 pcs/day
Delivery Time :
2-3 days
Packaging Details :
PE bag
Connector Type :
LC
Ferrule End-face :
UPC/PC
Fiber Type :
OM1 OM2
Cable Type :
12 CORES
Cable OD :
0.9/2.0/3.0mm
Cable Jacket :
PVC/LSZH/OFNR/OFNP outer jacket
Cable Length :
1M, 2M, 3M or customized
Cable Color :
Orange, Yellow, Aqua, Purple, Violet or customized
Description



Single mode LC Fiber Optic Pigtail with 12 core Ribbon Fiber Cable

Features:

Price-Competitive

Low Insertion Loss & PDL

Factory-terminated and Tested

Fiber Options: G.652 /G.657/OM1/OM2/OM3 and PM Panda Fiber

Connector Options: FC/SC/LC/ST/MU/MT-RJ/MPO/MTP

Polishing Options: PC/UPC/APC

Feature Connector with Ceramic Ferrules


Application:

Local Area Networks (LANs)

Data processing networks

Test equipment

Premise installations

Wide Area Networks (WANs)

Telecommunication networks

Active device termination


Specification:

Style

LC,SC,ST,FC.MU,MPO, SC/APC,FC/APC,LC/APC.MU/APC Duplex MTRJ/Female, MTRJ/Male

Fiber Type

9/125 SMF-28 or equivalent (Singlemode) OS1 50/125, 62.5/125 (Multimode) OM2&OM1 50/125,

10G (Multimode) OM3

Cable Type

Simplex, Duplex (Zipcord) Φ3.0mm, Φ2.0mm, Φ1.8mm Φ1.6mm PVC or LSZH Φ0.9mm, Φ0.6mm buffered fiber

PVC or LSZH

Polishing Manner

UPC,SPC,APC (8°& 6°)

Insertion Loss

≤ 0.1dB (For Singlemode Master) ≤ 0.25dB (For Singlemode Standard) ≤ 0.25dB (For Multimode) Tested by JDS RM 3750

Return Loss (For Singlemode)

UPC ≥ 50dB SPC ≥ 55dB APC ≥ 60dB (typ.65dB)

Tested by JDS RM3750

Repeatability

±0.1dB

Operating Temperature

-40C to 85C

Geometry Requirement (For Singlemode)

Ferrule Endface Radius 7mm ≤ R ≤ 12mm (For APC) 10mm ≤ R ≤ 25mm (For Standard) Apex Offset ≤ 30 μm (For Master) Apex Offset ≤ 50 μm (For Standard) Undercut -50nm ≤ U ≤ 50nm Tested by DORC ZX-1


Order Information:

Boot (cable)

Size

Boot

Color

Fiber Type

Cable number

Application

Length

0.9mm

Black

9/125μm (SM)

Simplex

PC

Customized

2.0mm

Green

50/125μm (MM)

Duplex

APC

3.0mm

Red

62.5/125μm (MM)

Fan-out (4f)

Fan-out (6f)

Fan-out (8f)

Fan-out (12f)

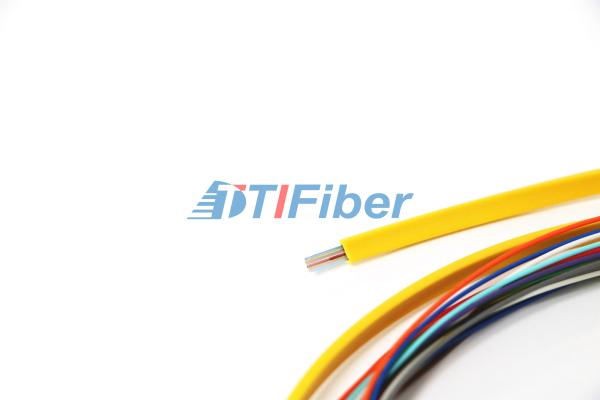

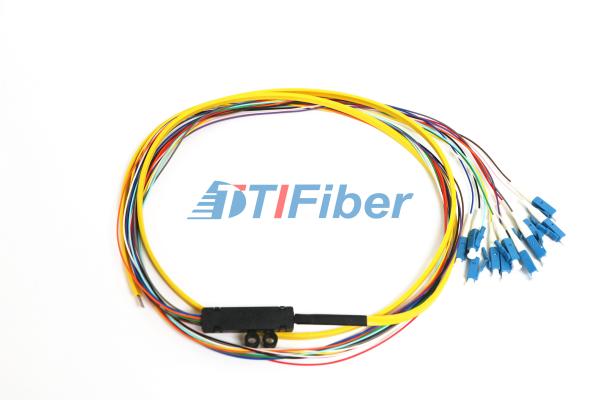

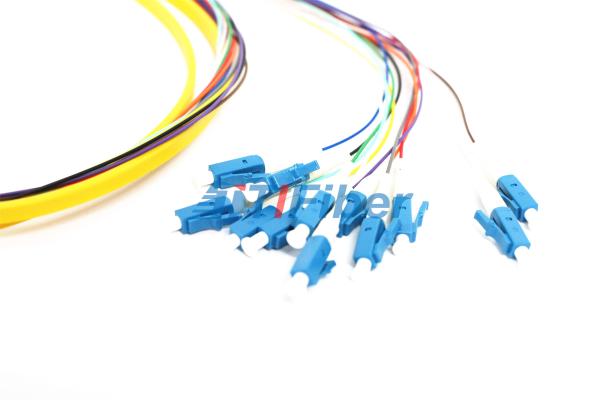

Product Picture:

LC Single Mode Pigtail Optical Fiber With 12 Core Ribbon Fiber Cable
