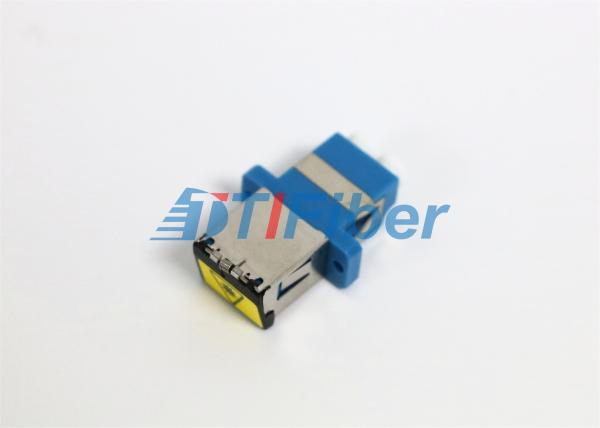

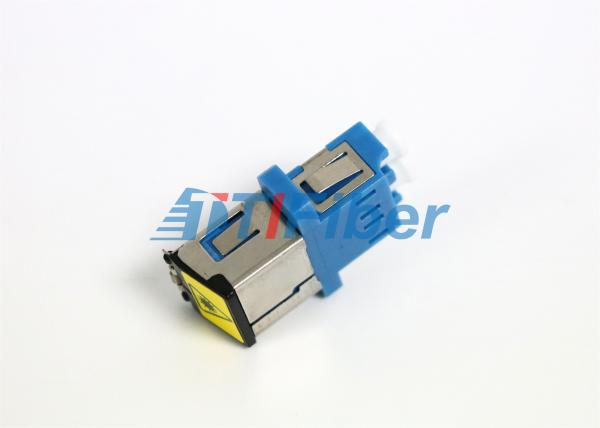

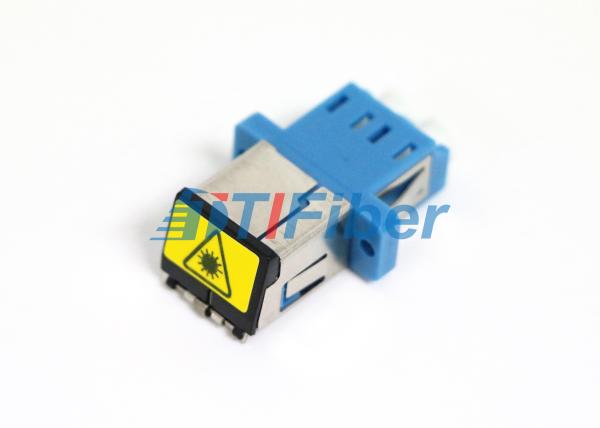

Flangeless Fiber Optic Adapter with Shutter for Optical Passive Device
Flangeless Fiber Optic Adapter with Shutter for Optical Passive Device
Flangeless Fiber Optic Adapter with Shutter for Optical Passive Device
Flangeless Fiber Optic Adapter with Shutter for Optical Passive Device
Flangeless Fiber Optic Adapter with Shutter for Optical Passive Device
Flangeless Fiber Optic Adapter with Shutter for Optical Passive Device
Specifications
Brand Name :
TTI/OEM/ODM
Model Number :
MPO
Certification :
ISO, SGS, ROHS
Place of Origin :
China
MOQ :
25pcs
Price :
Negotiation
Payment Terms :
T/T, L/C, , PayPal
Supply Ability :
500000pcs/month
Delivery Time :
2~3 days
Packaging Details :
Plastic bag
Connector Type :
LC
Mode :
Singlemode, Multimode
Type :
Duplex
Sleeve :
Zirconia/Ceramic, Copper
Housing :
Metal, Plastic
Color :
Red, White, Black, Yellow color
End-face :
PC, UPC, APC
Structure :
Female to Female
Description

Flangeless Fiber Optic Adapter with Shutter for Optical Passive Device

Description

Fiber Optic Adapter is specially designed to incorporate the Small Form Factor.

The compact design of LC fiber Adapter enables network operators to reduce cost via space-savings.

Feature:

Excellent Repeatability

Excellent Interchangeability

Low Insertion Loss

Good Temperature Characteristic

LC-SC Adaptor Material: Plastic and metal available

Simplex or duplex LC-LC female-male fiber optic adapter optional

Application:

Telecom, Access Network

Optical Fiber CATV

Terminal of the Devices and Multimedia

Testing and Medical Devices

Optical Fiber LAN and Access Network

Specification:

Parameter

Unit

SC-LC, SC-ST, FC-ST, FC-SC, FC-LC, FC-MU

Single-mode

Multi-mode

PC

UPC

APC

PC

Insertion Loss

dB

≤0.3

≤ 0.2

≤ 0.3

≤ 0.2

Return Loss

dB

≥ 45

≥ 50

≥ 60

≥ 30

Exchangeability

dB

≤ 0.2

Repeatability

dB

≤ 0.2

Durability

Time

> 1000

Order Information:

LC/PC-ST/PC-SM-Duplex-Plastic
1. Connector Type: FC, SC, LC, ST, MPO, MTRJ, MU, D4, DIN, SMA
2. Ferrule End-face: PC, UPC, APC
3. Core Type : SM, MM(OM1 OM2 OM3 OM4)
4. Structure: Simpled, Duplex, Quad
5. With flange, without flange
6. Sleeve: copper alloy,Zinc alloy
7. Material: ABS, PC, PBT, metal

Flangeless Fiber Optic Adapter with Shutter for Optical Passive Device
