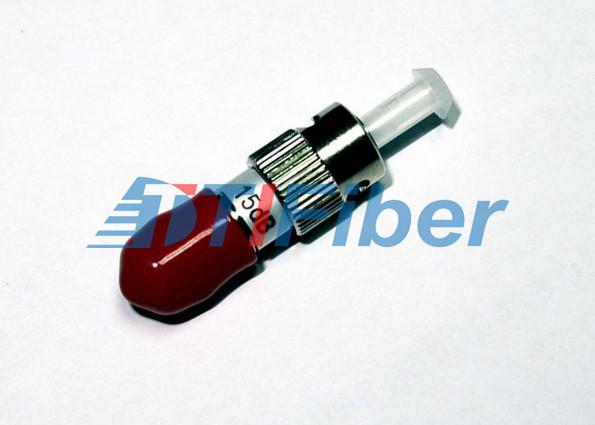

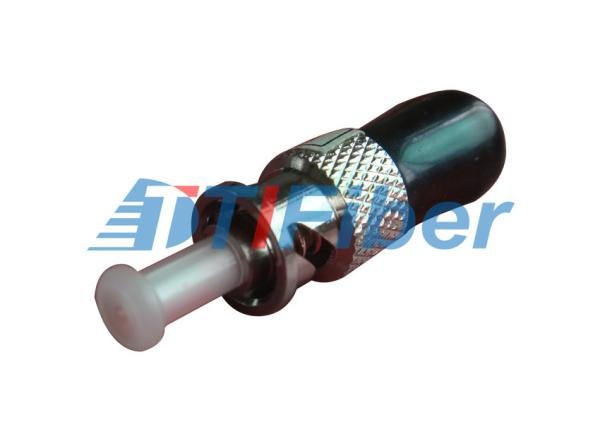

ST Female To Male And Fixed Fiber Optic Attenuator Single Mode Multimode
ST Female To Male And Fixed Fiber Optic Attenuator Single Mode Multimode
ST Female To Male And Fixed Fiber Optic Attenuator Single Mode Multimode
ST Female To Male And Fixed Fiber Optic Attenuator Single Mode Multimode
ST Female To Male And Fixed Fiber Optic Attenuator Single Mode Multimode
ST Female To Male And Fixed Fiber Optic Attenuator Single Mode Multimode
Specifications
Brand Name :
TTI/OEM/ODM
Model Number :
ST-ST
Certification :
ISO, SGS, ROHS
Place of Origin :
China
MOQ :
25pcs
Price :
Negotiation
Payment Terms :
T/T, L/C, , PayPal
Supply Ability :
500000pcs/month
Delivery Time :
2~3 days
Packaging Details :
Plastic bag
Connector Type :
FC
Mode :
Singlemode, Multimode
Type :
Simplex, Duplex
Ferrule :
Zirconia/Ceramic, Metal
Housing :
Metal, Plastic
Color :
Red, White, Black, Yellow color
End-face :
PC, UPC, APC
Structure :
Variable
Description

ST Female to Male and Fixed Fiber Optic Attenuator Singlemode / Multimode

Description:

Fiber Optic Attenuator is a component installed in a fiber optic transmission system that reduces the power in the optical signal. It is often used to limit the optical power received by the photo detector to within the limits of the optical receiver.


Feature:

Low back reflection and Low PDL
High precision attenuation value
Precision control of attenuation range
Wide attenuation range
Precision ceramic ferrule
FC, SC, ST, LC … optional
Plastic or metal housing material

Application:

Testing equipment

Fiber optical CATV

Fiber optical sensor

Fiber optical telecommunication system

Specification:

Parameters

FC,SC, LC, ST, MU, DIN, MTRJ, Hybrid

Attenuation Range

0dB ~ 30dB

Operation Wavelength

SM: 1260-600nm, or 1310nm/1550nm

MM:850nm, 1310nm

Return Loss

≤50dB (PC)

≤55dB (UPC)

≤65dB (APC)

Attenuation Accuracy

±0.5dB (1 ~ 10 dB)

±10% of Attenuation Value (11~30 dB)

Polarization Dependent Loss (PDL)

≤0.2dB

Exchangeability

≤0.2dB

Repeatability

≤0.2dB

Durability

≤0.2dB Typical 1000 matings

Maximum Optical Input Power

200mW

Operating Temperature

-20 ~ +75°C

Storage Temperature

-40 ~ +85°C

Order Information:

SC/UPC-SM-5dB-Female&Male

Step 1: Connector type: FC, SC, LC, ST, MU
Step 2: Ferrule End-face: PC, UPC, APC
Step 3: Type: Single-mode, Multimode
Step 4: Attenuation: 1-10dB(1dB step), 15, 20, 25, 30dB
Step 5: Mode: Fixed, Female&Male, In-line, Variable
Step 6: Wavelength: 1310nm, 1550nm, 850nm, 1300nm
