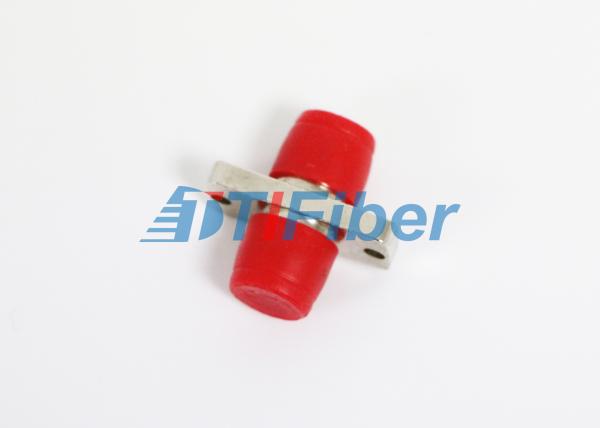

Metal Housing FC Fiber Optic Adapter For CATV Network , Male Female Adapter
Metal Housing FC Fiber Optic Adapter For CATV Network , Male Female Adapter
Metal Housing FC Fiber Optic Adapter For CATV Network , Male Female Adapter
Metal Housing FC Fiber Optic Adapter For CATV Network , Male Female Adapter
Metal Housing FC Fiber Optic Adapter For CATV Network , Male Female Adapter
Metal Housing FC Fiber Optic Adapter For CATV Network , Male Female Adapter
Specifications
Brand Name :
TTI/OEM/ODM
Model Number :
SC-SC
Certification :
ISO, SGS, ROHS
Place of Origin :
China
MOQ :
25pcs
Price :
Negotiation
Payment Terms :
T/T, L/C, , PayPal
Supply Ability :
500000pcs/month
Delivery Time :
2~3 days
Packaging Details :
Plastic bag
Connector Type :
FC-FC
Mode :
Singlemode, Multimode
Type :
Simplex, Duplex
Sleeve :
Zirconia/Ceramic, Copper
Housing :
ABS, PBT, PC
Color :
Blue, Beige, Green, Customized
End-face :
PC, UPC, APC
Structure :
Female to Female
Description

FC Fiber Optic Adapter with Whole body Metal Housing For CATV Network


Optical Fiber adapter is used to provide a cable to cable or cable to equipment fiber optic connection.

We supply a wide range of mating sleeves and hybrid adapters, including special male to female hybrid fiber optic adaptor.

Features:

High precision alignment

Compact design

Various housing materials and sleeve materials

Nickel plated brass body

Telcordia, ANSI, TIA/EIA, NTT and JIS compliance

Insertion loss: Less than 0.2dB

Return loss: 45dB/PC, 55dB/UPC, 65dB/APC

Retentivity:200-600g

Repeatability (1,000 times): Less than 0.2dB

Application:

Local area networks (LANs)

Data processing networks

CATV

Telecommunication networks

Test equipment

Patch panel, optical fiber optic distribution frame

Specification:

Item

SM(UPC)

SM(APC)

MM(PC)

Insertion loss(dB)

≤0.3

≤0.3

≤0.3

Repetitiveness(dB)

≤0.1

≤0.1

≤0.1

Interchangeability(dB)

≤ 0.2

Plug time(times)

500-1000

Operating Temperature(°C)

-25~85

Humidity

95%

Sleeve Material

Zirconia

Zirconia

Phosphor

Bronze

Environment and Mechanical:

Properties

Test condition

Conformance

Test result

Vibration

10-55Hz, 1.5mm, 60min

IEC61300-2-1

≤0.2dB

Mating Durability

1000 Mating, clean every 25 mating.

IEC61300-2-2

≤0.2dB

Impact

1.5m, 8 drops

IEC61300-2-6

≤0.2dB

Strength of Coupling Mechanism

40N, 10Min, L=22-28cm

IEC61300-2-12

≤0.2dB

Temperature Cycling

40ºC to +75ºC, 40 cycles

IEC61300-2-22

≤0.2dB

Temperature humidty cycling

40ºC, 95%, 96Hr

IEC61300-2-21

≤0.2dB

Operating Temperature

-40ºC to +85ºC

≤0.2dB

Storage Temperature

-40ºC to +85ºC

≤0.2dB


Order Information:

LC/APC-LC/APC-SM-DX-ABS
1. Connector Type: FC, SC, LC, ST, MPO, MTRJ, MU, D4, DIN, SMA
2. Ferrule End-face: PC, UPC, APC
3. Core Type : SM, MM(OM1 OM2 OM3 OM4)
4. Structure: Simpled, Duplex, Quad
5. With flange, without flange
6. Sleeve: copper alloy,Zinc alloy
7. Material: ABS, PC, PBT

Metal Housing FC Fiber Optic Adapter For CATV Network , Male Female Adapter
