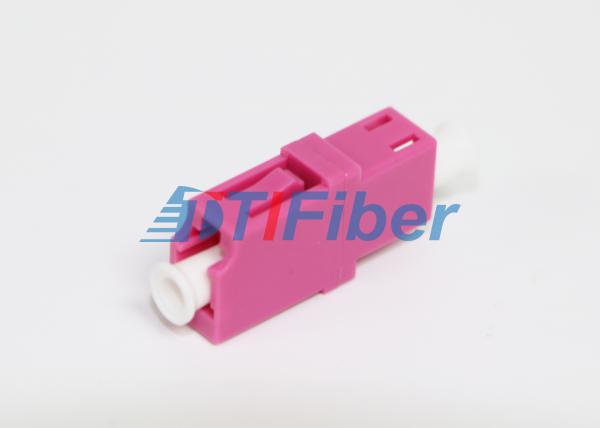

LAN Network OM4 Purple Color Fiber Optic Adapter with PBT Housing
LAN Network OM4 Purple Color Fiber Optic Adapter with PBT Housing
LAN Network OM4 Purple Color Fiber Optic Adapter with PBT Housing
LAN Network OM4 Purple Color Fiber Optic Adapter with PBT Housing
LAN Network OM4 Purple Color Fiber Optic Adapter with PBT Housing
LAN Network OM4 Purple Color Fiber Optic Adapter with PBT Housing
Specifications
Brand Name :
TTI/OEM/ODM
Model Number :
LC-LC-SX
Certification :
ISO, SGS, ROHS
Place of Origin :
China
MOQ :
25pcs
Price :
Negotiation
Payment Terms :
T/T, L/C, , PayPal
Supply Ability :
500000pcs/month
Delivery Time :
2~3 days
Packaging Details :
Plastic bag
Connector Type :
LC
Mode :
OM4
Type :
Simplex
Sleeve :
Zirconia/Ceramic, Copper
Housing :
PBT
Color :
Purple Housing or Customized
Description

Optical Fiber Adapter OM4 Purple Color with PBT Housing for LAN Network

Fiber Adapter is widely used in optical distribution frame (ODF), fiber-optic communications equipment, instrumentation, the feature is stable and reliable.

Fiber Optic Adapter is a fiber optic connector for connection components, the product is very variety, including FC, SC, ST, LC, MTRJ, as well as carry out the transfer between each other such as: ST-SC, FC-ST.

Feature:

Low insertion loss and back reflection loss

Compact design

Choice of housing material and sleeve material

Telcordia, ANSI, TIA/EIA, NTT and JIS compliance

Application:

Gigabit Ethernet

Local Area Networks(LANs)

Data processing networks

Telecommunication networks

Active device/Transceiver

Specification:

Type SC/FC/ST/LC/MU/MTRJ/MPO/DIN/SMA
Insertion Loss(dB) SM≤0.2dB, MM≤0.3dB
Repeatability(dB) ≤0.1dB
Mechanism Durability(500 cycles, dB) ≤0.2dB
Temperature Range -40°C-+85°C
Material of sleeve Zirconia or Bronze

Reliability testing:

Item Test Name Additional Insertion Loss Additional Return Loss
1 Mechanical durability <0.2dB <5dB
2 Repeatability <0.2dB <5dB
3 Lock strength <0.2dB <5dB
4 Low strength <0.2dB <5dB
5 High temperature <0.2dB <5dB
6 Steaming <0.2dB <5dB
7 Temperature cycle <0.2dB <5dB
8 Vibration <0.2dB <5dB
9 Drop <0.2dB <5dB

Order Information:

LC/UPC-LC/UPC-OM4-Simplex-Plastic


1. Connector Type: FC, SC, LC, ST, MPO, MTRJ, MU, D4, DIN, SMA
2. Ferrule End-face: PC, UPC, APC
3. Core Type : SM, MM(OM1 OM2 OM3 OM4)
4. Structure: Simpled, Duplex, Quad
5. With flange, without flange
6. Sleeve: copper alloy,Zinc alloy

7. Material: ABS, PC, PBT

LAN Network OM4 Purple Color Fiber Optic Adapter with PBT Housing
