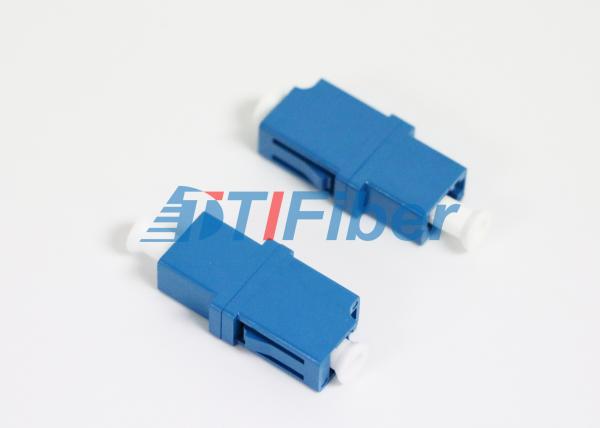

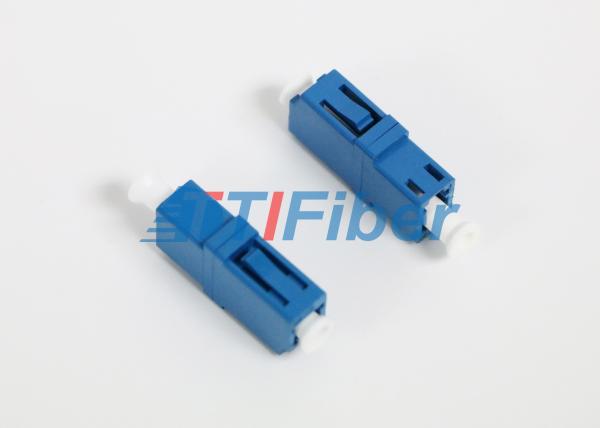

UPC Single mode Fiber Adapter Ceramic Sleeve , Blue color Housing
UPC Single mode Fiber Adapter Ceramic Sleeve , Blue color Housing
UPC Single mode Fiber Adapter Ceramic Sleeve , Blue color Housing
UPC Single mode Fiber Adapter Ceramic Sleeve , Blue color Housing
UPC Single mode Fiber Adapter Ceramic Sleeve , Blue color Housing
UPC Single mode Fiber Adapter Ceramic Sleeve , Blue color Housing
Specifications
Brand Name :
TTI/OEM/ODM
Model Number :
LC-LC-SX
Certification :
ISO, SGS, ROHS
Place of Origin :
China
MOQ :
25pcs
Price :
Negotiation
Payment Terms :
T/T, L/C, , PayPal
Supply Ability :
500000pcs/month
Delivery Time :
2~3 days
Packaging Details :
Plastic bag
Connector Type :
LC
Mode :
Singlemode, Multimode
Type :
Simplex
Sleeve :
Zirconia/Ceramic, Copper
Housing :
ABS, PBT, PC
Color :
Blue, Beige, Green,
Description

Single mode UPC Fiber Optic Adapter Ceramic Sleeve , Blue color Housing

Fiber optic adapter is used for the connection and coupling between fiber active connectors.

It is widely used in optical distribution frame (ODF), fiber-optic communications equipment, instrumentation, the feature is stable and reliable.

​

Feature:

Low insertion loss, high return loss

Good compatibility

High precision of mechanical dimensions

High reliability & stability

Ceramic or Bronze Sleeve

PC,APC,UPC optional

Application:

Local Area Network

CATV System

Telecommunication Networks

Equipment Test

Specification:

Sleeve Material: Ceramic or beryllium bronze;

Housing Material: Synthetic resin or alloy, with high precisemechanical dimensions, good compatibility;

Working Wavelength: 1200~1600nm;

Working Condition: -40°C to +75°C;

Durability: less than 500 times repeated insert and pull out , insertion loss change≤0.20dB;

Repeatability: No more than 0.2dB ;

The adapters comply with the standard of NTT/Telcordia/IEC/TIA/EIA.

Mode: SM/APC Green SM/PC Blue MM/PC Beige MM/PC Light Green

Order Information:

LC/UPC-LC/UPC-Singlemode-Simplex-Plastic, with flange


1. Connector Type:FC,SC,LC,ST,MPO,MTRJ,MU,D4,DIN,SMA
2. Ferrule End-face:PC,UPC,APC
3. Core Type : Single-mode(SM:9/125μm), Multimode(MM:50/125μm or 62.5/125μm)
4. Structure: Simpled, Duplex, Quad
5. With flange, without flange
6. Sleeve: copper alloy,Zinc alloy

7. Material: ABS, PC, PBT

UPC Single mode Fiber Adapter Ceramic Sleeve , Blue color Housing
