MTRJ MU Lc To Fc Adapter Black Plastic Housing For FTTH Newwork
MTRJ MU Lc To Fc Adapter Black Plastic Housing For FTTH Newwork
MTRJ MU Lc To Fc Adapter Black Plastic Housing For FTTH Newwork
MTRJ MU Lc To Fc Adapter Black Plastic Housing For FTTH Newwork
MTRJ MU Lc To Fc Adapter Black Plastic Housing For FTTH Newwork
MTRJ MU Lc To Fc Adapter Black Plastic Housing For FTTH Newwork
MTRJ MU Lc To Fc Adapter Black Plastic Housing For FTTH Newwork
MTRJ MU Lc To Fc Adapter Black Plastic Housing For FTTH Newwork
Specifications
Brand Name :
TTI/OEM/ODM
Model Number :
MTRJ
Certification :
ISO, SGS, ROHS
Place of Origin :
China
MOQ :
50pcs
Price :
Negotiation
Payment Terms :
T/T, L/C, , PayPal
Supply Ability :
500000pcs/month
Delivery Time :
2~3 days
Packaging Details :
Plastic bag
Connector Type :
SC/FC/LC/ST/MTRJ/MU ect.
Mode :
Singlemode, Multimode
Type :
Simplex
Sleeve :
Zirconia/Ceramic, Copper
Housing :
Metal, Plastic
Boot :
Red, White, Black, Yellow color
End-face :
PC, UPC, APC
Structure :
Female to Female
Description

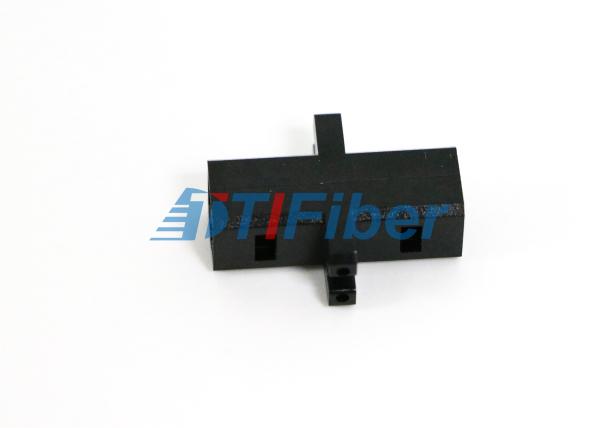

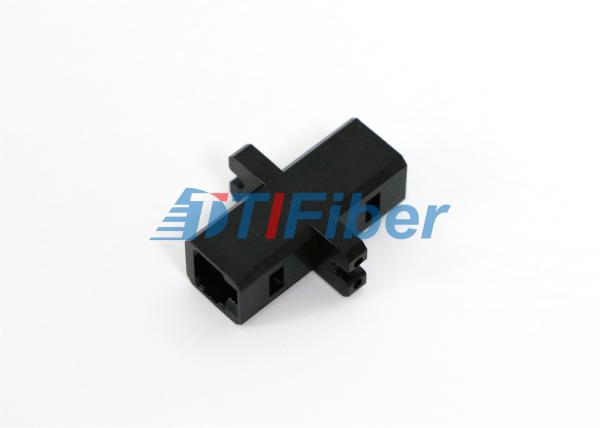

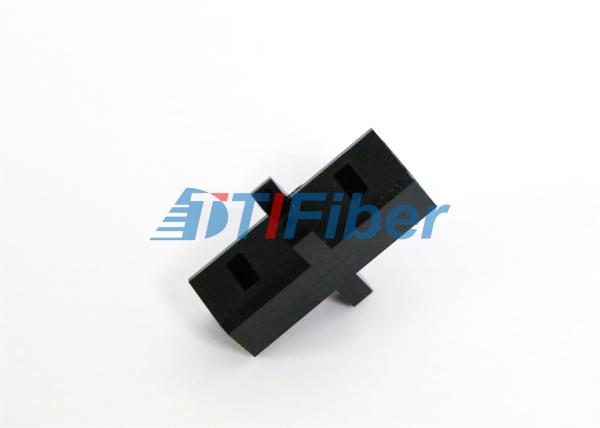

MTRJ MU Fiber Optic Adapter Black Plastic Housing for FTTH Newwork


Fiber Adapters are precisely made and manufactured to demanded specification.

Fiber Adaptor is comprised of a polymer/metal outer body and their inner assembly fitted with a precision alignment mechanism.

The combination of a ceramic/phosphor bronze alignment sleeves and a precision molded polymer housing provides consistent long-term mechanical and optical performance.

Features:

Ceramic (Zirconia)or low -cost Phosphor Bronze alignment sleeves

Customer designed specification

Compact packing

All standard and hybird types are offered in both multimode and single mode construction

High performance interconnections offer very low insertion loss.

Parameter:

Insertion Loss:<0.2dB

Durability :0.2dB Max Increase

Withdrawal Force(g/f):100-300

Operating Temperature:-40 to +80degree Celsius

Compliant with Bellcore GR-326

Compliant with Respective IEC standard

Compliant with ROSH

Application:

LAN (Local Area Network)

FTTH (Fiber To The Home)

CATV&CCTV System

High speed transmission systems

Fiber optic sensing

Industtial, Mechanical and Military

Fiber Optic Telecommunications

Specification:

Item

Parameter

Material

ABS, PBT, PC

Color

Blue,Green,Grey,Aqua,Purple etc.

Scope

PC&APC

Insertion Loss

<0.2dB

Operation Time

500 times without distortion and crack, Variety Insertion Loss<0.1dB

Insertion Loss

-40 ~ +85°C

Mechanical Durability

50N, connection with two connectors, connection time of 30min

Temperature

40N, connection with two connectors, connection time of 30min

Axial Tension Force

>8 N

Side Shear Force

-40~+75°C


Environment and Mechanical:

Properties

Test condition

Conformance

Test result

Vibration

10-55Hz, 1.5mm, 60min

IEC61300-2-1

≤0.2dB

Mating Durability

1000 Mating, clean every 25 mating.

IEC61300-2-2

≤0.2dB

Impact

1.5m, 8 drops

IEC61300-2-6

≤0.2dB

Strength of Coupling Mechanism

40N, 10Min, L=22-28cm

IEC61300-2-12

≤0.2dB

Temperature Cycling

40ºC to +75ºC, 40 cycles

IEC61300-2-22

≤0.2dB

Temperature humidty cycling

40ºC, 95%, 96Hr

IEC61300-2-21

≤0.2dB

Operating Temperature

-40ºC to +85ºC

≤0.2dB

Storage Temperature

-40ºC to +85ºC

≤0.2dB


Order Information:

FC/APC-FC/APC-SM-SX-Metal
1. Connector Type: FC, SC, LC, ST, MPO, MTRJ, MU, D4, DIN, SMA
2. Ferrule End-face: PC, UPC, APC
3. Core Type : SM, MM(OM1 OM2 OM3 OM4)
4. Structure: Simpled, Duplex, Quad
5. With flange, without flange
6. Sleeve: copper alloy,Zinc alloy
7. Material: ABS, PC, PBT, metal

MTRJ MU Lc To Fc Adapter Black Plastic Housing For FTTH Newwork
