Specifications
Brand Name :
TTI/OEM/ODM
Model Number :
FC-FC
Certification :
ISO, SGS, ROHS
Place of Origin :
China
MOQ :
50pcs
Price :
Negotiation
Payment Terms :
T/T, L/C, , PayPal
Supply Ability :
500000pcs/month
Delivery Time :
2~3 days
Packaging Details :
Plastic bag
Connector Type :
SC/FC/LC/ST/MTRJ/MU ect.
Mode :
Singlemode, Multimode
Type :
Simplex
Sleeve :
Zirconia/Ceramic, Copper
Housing :
Metal
Boot :
Red, White, Black, Yellow color
End-face :
PC, UPC, APC
Structure :
Female to Female
Description

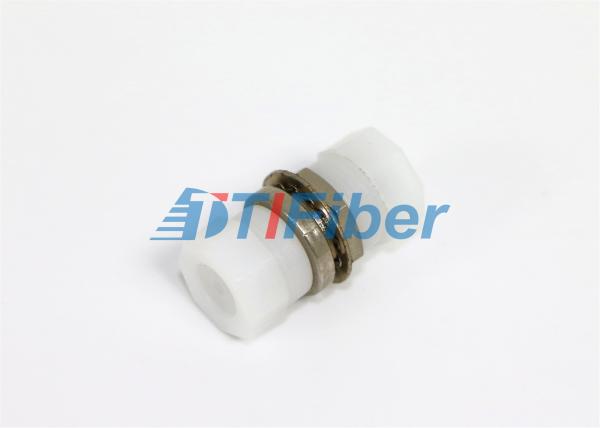

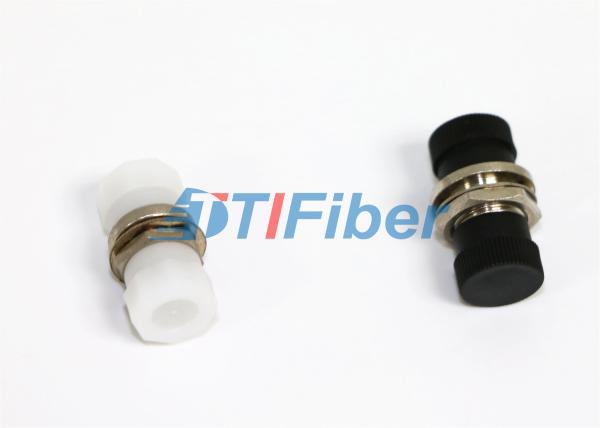

Big D and Small d FC Fiber Optic Adaptor with Low Insertion Loss


Fiber Adaptor is used to provide a cable to cable or cable to equipment fiber optic connection.
We supply a wide range of mating sleeves and hybrid adapters, including special male to female hybrid fiber optic adaptor.

Features:

Low insertion loss and back reflection loss

Ferrule end surface pre-domed

RoHS compliant

Precision anti-rotation key and corrosion resistant body

Telcordia style boots

Free-floating ceramic ferrule

Zirconia sleeves or Phosphor bronze sleeves

Application:

High speed transmission systems

Fiber optic sensing

Industtial, Mechanical and Military

Fiber Optic Telecommunications

LAN (Local Area Network)

FTTH (Fiber To The Home)

CATV&CCTV System

Specification:

Item

Parameter

Material

ABS, PBT, PC

Color

Blue,Green,Grey,Aqua,Purple etc.

Scope

PC&APC

Insertion Loss

<0.2dB

Operation Time

500 times without distortion and crack, Variety Insertion Loss<0.1dB

Insertion Loss

-40 ~ +85°C

Mechanical Durability

50N, connection with two connectors, connection time of 30min

Temperature

40N, connection with two connectors, connection time of 30min

Axial Tension Force

>8 N

Side Shear Force

-40~+75°C


Environment and Mechanical:

Properties

Test condition

Conformance

Test result

Vibration

10-55Hz, 1.5mm, 60min

IEC61300-2-1

≤0.2dB

Mating Durability

1000 Mating, clean every 25 mating.

IEC61300-2-2

≤0.2dB

Impact

1.5m, 8 drops

IEC61300-2-6

≤0.2dB

Strength of Coupling Mechanism

40N, 10Min, L=22-28cm

IEC61300-2-12

≤0.2dB

Temperature Cycling

40ºC to +75ºC, 40 cycles

IEC61300-2-22

≤0.2dB

Temperature humidty cycling

40ºC, 95%, 96Hr

IEC61300-2-21

≤0.2dB

Operating Temperature

-40ºC to +85ºC

≤0.2dB

Storage Temperature

-40ºC to +85ºC

≤0.2dB


Order Information:

FC/APC-FC/APC-SM-SX-Metal
1. Connector Type: FC, SC, LC, ST, MPO, MTRJ, MU, D4, DIN, SMA
2. Ferrule End-face: PC, UPC, APC
3. Core Type : SM, MM(OM1 OM2 OM3 OM4)
4. Structure: Simpled, Duplex, Quad
5. With flange, without flange
6. Sleeve: copper alloy,Zinc alloy
7. Material: ABS, PC, PBT, metal
