Specifications
Brand Name :
TTIFIBER/OEM/ODM
Model Number :
ADSS
Certification :
ISO9001 / ISO14001 / ROHS
Place of Origin :
China
MOQ :
1000M
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, Paypal
Supply Ability :
100000 PCS/Month
Delivery Time :
5-17 Days
Packaging Details :
Wood Drum
Jacket :
PVC LSZH LSOH PE HDPE
Fiber count :
2 - 144 Cores
Application :
Aerial
Color :
Black or OEM
Packing :
3km / roll
Insulation :
PE
Fiber Type :
SM / OM1 / OM2 / OM3 / OM4
Brand :
TTI / OEM / Customized
Description
Customizable factory direct sales PE HDPE ADSS single-mode outdoor fibre optic cable

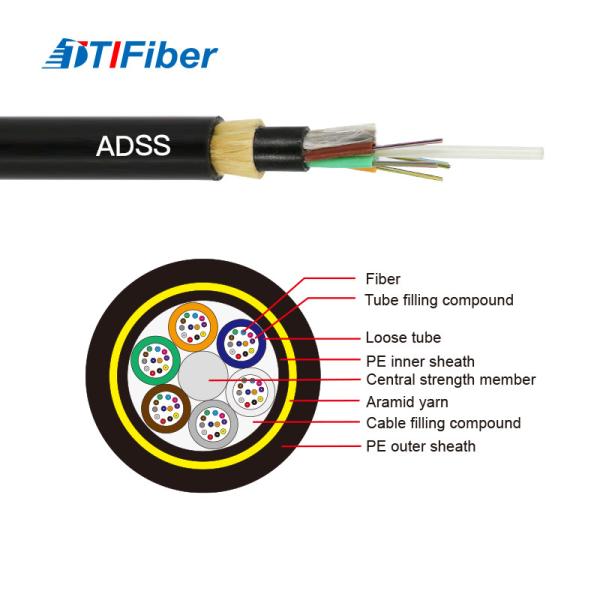

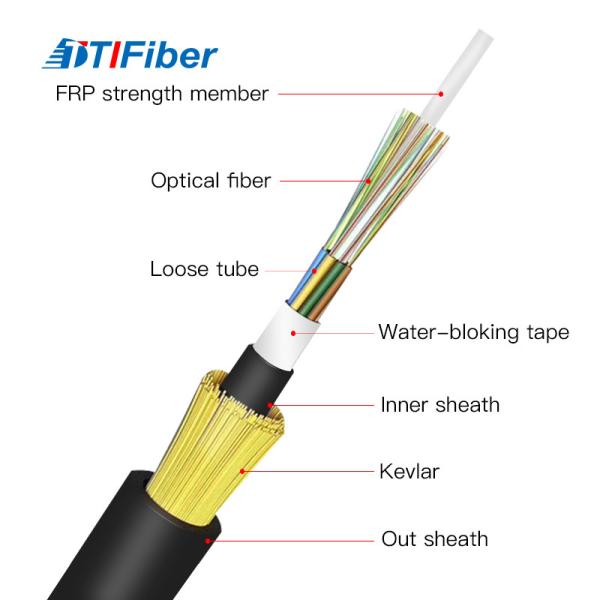

ADSS cable is loose tube stranded.The fibers, 125μm,are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tubes and fillers are stranded around a FRP as a non-metallic strength member into a compact and circular cable core,and the cable core is wrapped with a layer of Kevlar. Between the Kevlar yarn and the loose tube, water-blocking material is applied to keep the cable compact and watertight. Final the cable is completed with a polyethylene (PE) or AT outer sheath.
ADSS Fibre Optic Cable PE HDPE Single Mode Outdoor CustomizableADSS Fibre Optic Cable PE HDPE Single Mode Outdoor Customizable
Characteristics:
1. Small cable diameter(adapt for bad climate), light weight, 100m span, low attached load on tower.

2. Non-metal structure, good insulation, anti-thunder.

3. Fine production technology, even force for aramid yarn, with superior stress flexibility.
Item
Contents
Value
Fiber Count
24
48
72
96
144
Loose Tube
No. of tubes*fiber pre tube
4*6
4*12
6*12
8*12
12*12
Outer Diamater(mm)
2.1
2.5
Central Strength Member
Material
FRP
Diameter(mm)
2.25
2.5
2.6
2.8
3.7
Coated CSM Diameter(mm)
4.2
7.4
Water Blocking Material
Material
Cable Filling Compound
Inner Sheath
Thickness(mm)
Nominal:0.8
Peripheral Strength Member
Material
Aramid Yarm
Outer Sheath
Thickness(mm)
Nominal:1.8
Cable Diameter
12.6
13.2
14
15.3
18
Cable Weight
125
135
150
180
260
Operation Temperature Range
-40-70
Climate Condition
Max. wind speed: 25m/s, no ice
Max Span(m)
750
670
650
600
500
Crush Resistance Short/Long Term(N/100mm)
2200/700
