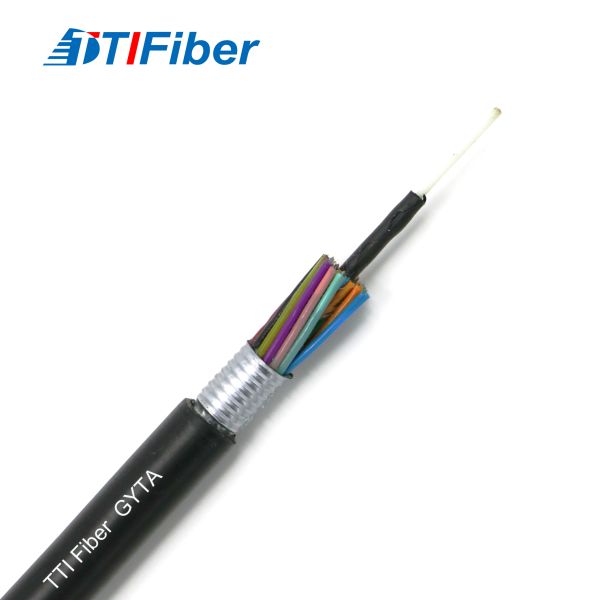

Stranded Loose Tube Aluminum Tape Cable GYTA
Stranded Loose Tube Aluminum Tape Cable GYTA
Stranded Loose Tube Aluminum Tape Cable GYTA
Stranded Loose Tube Aluminum Tape Cable GYTA
Stranded Loose Tube Aluminum Tape Cable GYTA
Stranded Loose Tube Aluminum Tape Cable GYTA
Specifications
Brand Name :
TTI OR OEM
Model Number :
GYTA
Certification :
ISO9001/CE/ROHS
Place of Origin :
China
MOQ :
1000M
Payment Terms :
L/C, D/A, D/P, T/T, ,
Supply Ability :
100000 PCS/Month
Delivery Time :
5-17 Days
Packaging Details :
wood Drum
Product Name :
Stranded Loose Tube Aluminum Tape Cable GYTA
Application :
OUTDOOR
Color :
Black or OEM
Cable Diameter :
100M,OEM
Strength Member :
OEM
Material :
Top
Package :
Standard
Way :
Portable
Price :
0.13
Description

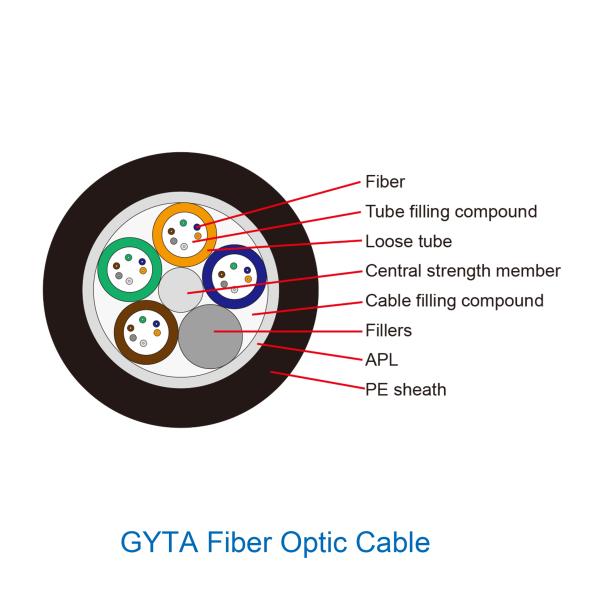

Stranded Loose Tube Aluminum Tape Cable GYTA

The fibers, 125μm,are positioned in a loose tube made of a high modulus plastic.

The tubes are filled with a water-resistant filling compound.

A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member.

Tubes (and fillers) are stranded around the strength member into a compact and circular cable core.

An Aluminum Polyethylene Laminate (APL) is applied around the cable core, which is filled with the filling compound to protect it from water ingress. Then, the cable is completed with a PE sheath.

Feature

♦ Excellent mechanical and temperature performance
♦ Special tube filling compound ensure a critical protection of fiber and resist the water.
♦ Single steel wire as the central strength member to withstand axial loads.
♦ PE sheath protects cable from ultraviolet radiation.
♦ 100% core filling water prevent cable jelly to ensure the cable watertight.
♦ AL tape longitudinal cover cable core as moisture barrier.

Specification

Cable Type Fiber Count Tubes Fillers Cable Diamete
rmm		 Cable Weight kg/km Tensile strength
Long/Short term
(N)		 Crush resistance
Long/Short term
(N/100mm)		 Bending radius
Static/Dynamic
(mm)
GYTA-2~6 2~6 1 4 9.0 80 600/1500 300/1000 10D/20D
GYTA-8~12 8~12 2 3 9.0 80 600/1500 300/1000 10D/20D
GYTA-14~18 14~18 3 2 9.0 80 600/1500 300/1000 10D/20D
GYTA-20~24 20~24 4 1 9.0 80 600/1500 300/1000 10D/20D
GYTA-26~30 26~30 5 0 9.0 80 600/1500 300/1000 10D/20D
GYTA-32~36 32~36 6 0 9.0 80 1000/3000 300/1000 10D/20D
GYTA-38~48 38~48 4 1 9.0 80 1000/3000 300/1000 10D/20D
GYTA-50~60 50~60 5 0 9.0 80 1000/3000 300/1000 10D/20D
GYTA-62~72 62~72 6 0 9.0 80 1000/3000 300/1000 10D/20D
GYTA-86~96 86~96 8 0 13.2 153 1000/3000 300/1000 10D/20D
GYTA-134~144 122~132 12 0 16.5 221 1000/3000 300/1000 10D/20D
GYTA-204~216 204~216 18 0 16.5 230 1000/3000 300/1000 10D/20D

Stranded Loose Tube Aluminum Tape Cable GYTAStranded Loose Tube Aluminum Tape Cable GYTA
