Specifications
Brand Name :
TTI
Model Number :
SC-SC-SM-SX
Certification :
ISO, SGS, ROHS
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T, L/C, PayPal
Supply Ability :
8000 pcs/day
Delivery Time :
2-3 days
Packaging Details :
PE bag
Connector Type :
SC and SC
Fiber Type :
Singlemode
Cable Type :
Simplex
Cable OD :
3.0mm
Cable Jacket :
PVC outer jacket
Cable Color :
Yellow or customized
Durability :
> 1000 times
Operating Temperature :
-40°C ~ +85°C
Description

Upc Pc Apc Sc Fc To Lc Fiber Patch Cord Sm Mm Optical Fiber Jumper

Description:

The LC fiber connectors used in fiber optic patch cords are designed to LC standards with high quality zirconia ferrules and non-optical disconnect performance.

They are fully compatible with existing LC hardware.In addition to basic testing, some mechanical and environmental tests per IEC or Telcordia are also performed periodically to guarantee the best quality.

Features:


Push-pull latching mechanism
Non-optical disconnect performance
High quality zirconia ferrules
Materials meet RoHS requirements
Riser, Plenum, PVC, LSZH fiber cables available

Specification:

Fiber Connector Performance Specification:

Connector Type FC, SC, LC, ST, MU, MTRJ
Fiber Type SM(G.652D/G.657A) MM(OM1/OM2/OM3/OM4)
Ferrule End-face PC UPC APC UPC
Insertion Loss ≤0.2dB ≤0.2dB ≤0.3dB ≤0.3bB
Return Loss ≥50dB ≥55dB ≥60dB ≥35dB
Exchangeability ≤0.2dB
Repeatability ≤ 0.1dB(1000 times)
Durability > 1000 times
Operating Temperature -40°C ~ +85°C

Fiber Cable Performance Specification:

Fiber type Min. Bandwidth Distance Attenuation
62.5/125 850/1300nm
200/500 MHz/Km		 @100Mbps 2km @1Gig 220m 850/1300nm
3.0/1.0dB/km
50/125 850/1300nm
500/500 MHz/Km		 @100Mbps 2km @1Gig 500m 850/1300nm
3.0/1.0dB/km
50/125
10Gig Optimized		 850/1300nm
2000/500 MHz/Km		 @100Gig Varies by VCSEL typical 300m 2850nm 850/1300nm
3.0/1.0dB/km
9/125 1310/1550nm
Approx 100 Terahertz		 Up to 100km Varies by transceiver 1310/1550nm
0.4/0.3dB/km


Upc Pc Apc Sc Fc To Lc Fiber Patch Cord Sm Mm Optical Fiber Jumper

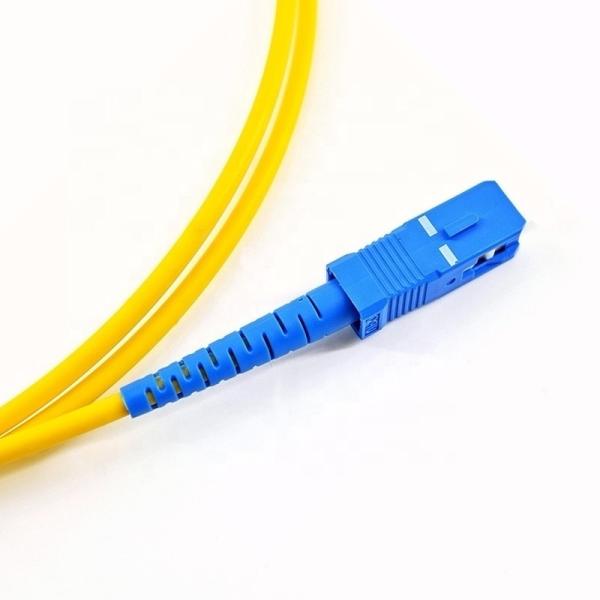

Product Picture:


Upc Pc Apc Sc Fc To Lc Fiber Patch Cord Sm Mm Optical Fiber Jumper

Upc Pc Apc Sc Fc To Lc Fiber Patch Cord Sm Mm Optical Fiber Jumper

Upc Pc Apc Sc Fc To Lc Fiber Patch Cord Sm Mm Optical Fiber Jumper

Upc Pc Apc Sc Fc To Lc Fiber Patch Cord Sm Mm Optical Fiber Jumper

Upc Pc Apc Sc Fc To Lc Fiber Patch Cord Sm Mm Optical Fiber Jumper
