24core Singlemode ADSS Aerial Optical Cable With Single Sheath Span 100M
24core Singlemode ADSS Aerial Optical Cable With Single Sheath Span 100M
24core Singlemode ADSS Aerial Optical Cable With Single Sheath Span 100M
24core Singlemode ADSS Aerial Optical Cable With Single Sheath Span 100M
Specifications
Brand Name :
TTI OR OEM
Model Number :
ADSS
Certification :
ISO9001/CE/ROHS
Place of Origin :
China
MOQ :
1000M
Payment Terms :
L/C, D/A, D/P, T/T, , PayPal,
Supply Ability :
100000 PCS/Month
Delivery Time :
5-9 Days
Packaging Details :
wood Drum
Product Name :
ADSS Aerial Fiber Cable
Application :
Outdoor, Aerial
Color :
Black or OEM
Fiber model :
SM MM
Strength Member :
FRP
Material :
PE Outer Jacket
Package :
2km/roll
Price :
0.13
Description

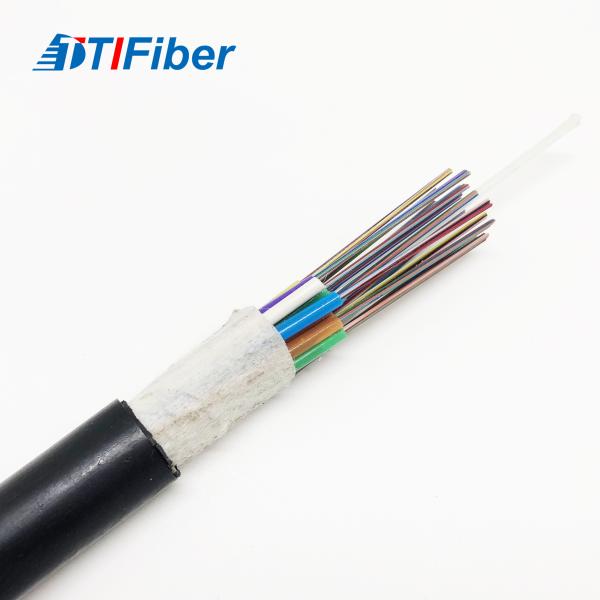

24core Singlemode ADSS Aerial Optical Cable with Single Sheath Span 100M

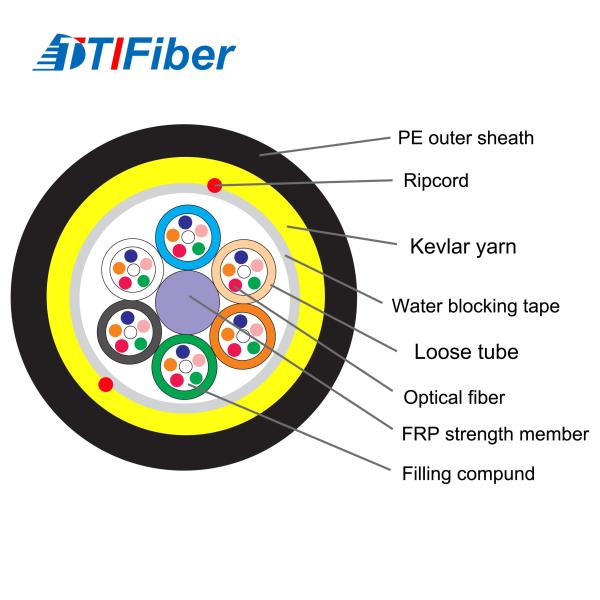

The fibers, 125μm, are positioned in a loose tube made of a high modulus plastic.

The tubes are filled with a water-resistant filling compound.

A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member.

The tubes (and fillers) are stranded around the strength member into a compact and circular core.

After the cable core is filled with the filling compound to protect it from water ingress, the cable is completed with a PE sheath.

Feature:

Excellent mechanical and temperature performance

PE sheath protects cable from ultraviolet radiation.

100% core filling water prevent cable jelly to ensure the cable watertight.

Special tube filling compound ensure a critical protection of fiber and resist the water.

Single FRP as the central strength member to withstand axial loads.

Optical Characteristics:

Item G.652 G.655 50/125um 62.5/125um
Attenuation @850nm 　 　 ≤3.0dB/km ≤3.2dB/km
@1300nm 　 　 ≤1.0dB/km ≤1.2dB/km
@1310nm ≤0.36dB/km ≤0.40dB/km 　 　
@1550nm ≤0.22dB/km ≤0.23dB/km 　 　

Bandwidth

(Class A)

 @850nm 　 　 ≥500MHZ.km ≥200MHZ.km
@1300nm 　 　 ≥1000MHZ.km ≥600MHZ.km
Numerical aperture 　 　 0.200±0.015NA 0.275±0.015NA
Cable cut-off wavelength ≤1260mm ≤1450mm 　 　


24core Singlemode ADSS Aerial Optical Cable With Single Sheath Span 100M24core Singlemode ADSS Aerial Optical Cable With Single Sheath Span 100M
