ST Female To Male 5db 10db Fiber Optic Attenuator Fixed Plug Type
ST Female To Male 5db 10db Fiber Optic Attenuator Fixed Plug Type
Specifications
Brand Name :
TTI
Model Number :
ST Fiber Optic Attenuator
Certification :
Standard Certification
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
Accept all online payments
Supply Ability :
10000 pieces
Delivery Time :
3-5 Work Days
Packaging Details :
Standard Package(Surport OEM/ODM)
Product Name :
ST Fiber Optic Attenuator
Connector :
ST
Cable Diameter :
0.9mm/2.0mm/3.0mm
Application :
Telecommunication
Insertion Loss :
SM<0.20db, MM<0.35db
Fiber Type :
SM/MM
Wavelength :
1310nm or 1550nm
Use :
FTTH/FTTA/FTTX
Description

Fixed Plug Type ST Female to Male 5db 10db Fiber Optic Attenuator

Singlemode Simplex ST Female to Male Fiber Optic Attenuator

1. Description:

Fiber Optic Attenuator is one kind of optical passive device which is used to debug the performance of the optical power in the optical communication system,debugging fiber optic instrument calibration correction, optical signal attenuation.And used for the attenuation of the input optical power, avoid optical receiver distortion due to input optical power powerful. The fixed fiber optic attenuator can achieve the dual function of adapter and attenuators.

2. Specification:

Product Name
ST Male to Female Type Optical Attenuator
Operating Wavelength
1260~1620nm
Return Loss
≥ 60 dB
Maximum optical Input power
200mW
Insertion times
>1000
Attenuation Tolerance
≤ 0.2db
Working Temperature
-40°C~+ 75°C

3. Feature:

1) Low back reflection and Low PDL
2) High precision attenuation value
3) Precision control of attenuation range
4) Wide attenuation range
5) Precision ceramic ferrule
6) FC, SC, ST, LC … optional
7) Plastic or metal housing material

4. Technique Parameters:

Item
Specification
PC
UPC
APC
Operating Wavelength (nm):
1310/1550
Return Loss (dB):
≥50
≥55

≥60
Attenuator Value:
According to custom request make 1—30dB
Maximum Optical Input Power:
200mW
Bellcore Compliant:
Wavelength Independent (DWDM)
Operating Temperature:
-40--+85°C
Attenuation Accuracy:
+/-0.5 (1-10) +/-1.0 (11-30)
Durability (well over 100mw):
Simple and Reliable Structure
Storage Temperature:
-40--+85°C

5. Application:

* Optics lab use
* Subscriber loop
* Fiber optical sensor
* Testing equipment

* Fiber communication on system test

* Optical passive component test
* Optical add-drop multiplexer in the optical power regulator

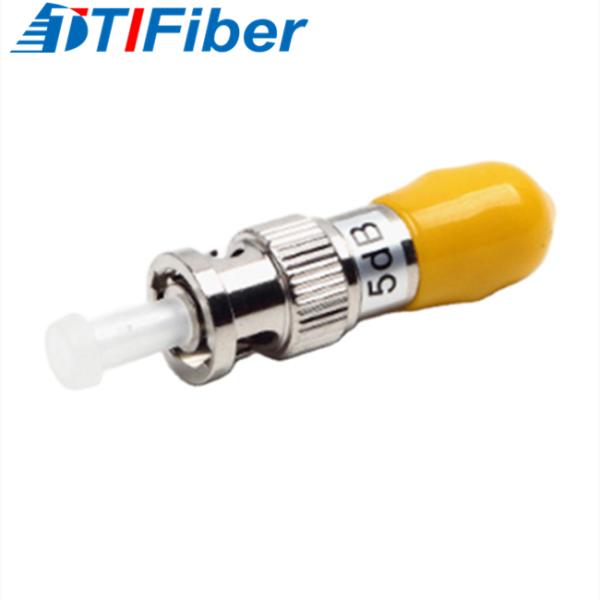

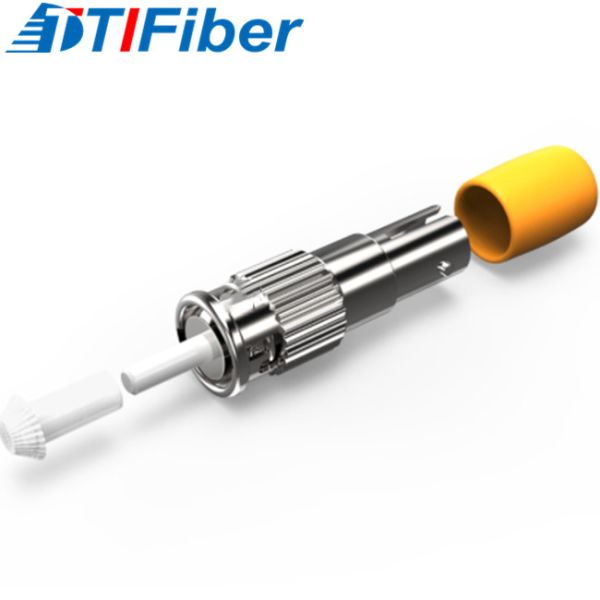

6. Product Picture:

ST Female To Male 5db 10db Fiber Optic Attenuator Fixed Plug Type

ST Female To Male 5db 10db Fiber Optic Attenuator Fixed Plug Type

ST Female To Male 5db 10db Fiber Optic Attenuator Fixed Plug Type

ST Female To Male 5db 10db Fiber Optic Attenuator Fixed Plug Type

7. FAQ:

1. Why choose TTI FIBER ?
(1) Professional manufacturer: Low MOQ, free samples are available.
(2) Quality assurance:Stable high quality.
(3) Customers solutions:Quick.
(4) Win-Win Price:Save much costs, bring more benefits for customers.


2. Do you accept OEM,ODM?
Yes, we accept them .


3. Can you print our LOGO?
Sure, Your LOGO can be printed on the boxes , or products.


4. What's the method of shipment?
We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.


5. What's the Payment?
We accept all online payments.
