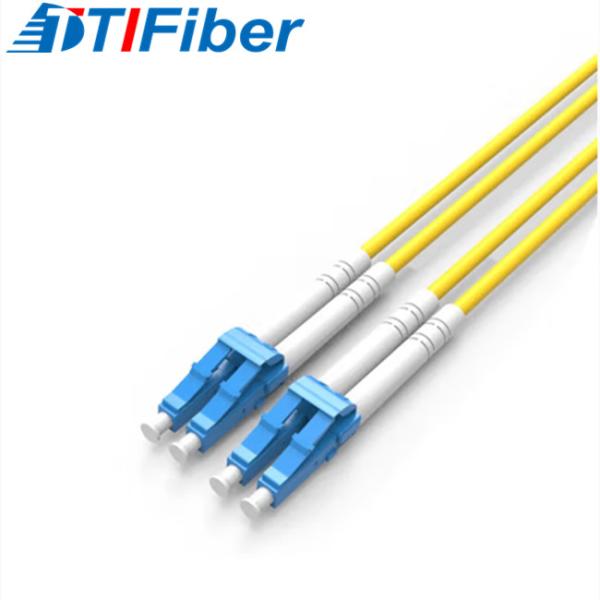

2.0mm 3.0mm Fiber Optic Patch Cord LC/UPC-LC/UPC Duplex Single Mode Fiber Cable
2.0mm 3.0mm Fiber Optic Patch Cord LC/UPC-LC/UPC Duplex Single Mode Fiber Cable
2.0mm 3.0mm Fiber Optic Patch Cord LC/UPC-LC/UPC Duplex Single Mode Fiber Cable
2.0mm 3.0mm Fiber Optic Patch Cord LC/UPC-LC/UPC Duplex Single Mode Fiber Cable
Specifications
Brand Name :
TTI
Model Number :
LC/UPC-LC/UPC Duplex patch cord
Certification :
Standard Certification
Place of Origin :
China
MOQ :
Negociated
Price :
Negociated
Payment Terms :
L/C, D/A, D/P, T/T, ,
Supply Ability :
10000 pieces
Delivery Time :
1-3 Work Days
Packaging Details :
Standard Package(Surport OEM/ODM)
Fiber type :
G652D,G657A,G655
Application :
FTTH FTTB FTTX Network
Connector type :
LC/SC/FC/ST
Material :
PVC/LSZH
Product namee :
Fiber Optic Patch Cord
Color :
Yellow
Wavelength :
1310nm or 1550nm
Fiber count :
Simplex or Duplex
Polish :
PC/UPC/APC
Type :
Single mode/Multi-mode
Quality control :
100% test before shipping
Length :
1m 2m 3m or Customized
Description

2.0mm 3.0mm Fiber Optic Patch Cord LC/UPC-LC/UPC Duplex Single Mode Fiber Cable

- Fiber Optical Patch Cord is a length of optical fiber with two ends adding connectors to connect beam path.

-Pigtail is a length of fiber permanently attached connector only at one end.

-The patch cords assembled with various types of connectors (such as FC, SC, ST, LC,MU,MTRJ etc.)

-There are three kinds of polished fiber end-face: PC, UPC and we employ advanced technique and equipment to manufacture so as to ensure the high quality of mass production.

2.0mm 3.0mm Fiber Optic Patch Cord LC/UPC-LC/UPC Duplex Single Mode Fiber Cable

Specification:

TypeStandard,Master
StyleLC,SC,ST,FC.MU,DIN,D4,MPO, SC/APC,FC/APC,LC/APC.MU/APC
Fiber

Singlemode/Multimode
50/125, 62.5/125 (Multimode) OM2&OM1
50/125, 10G (Multimode) OM3

Cable

Simplex, Duplex
Φ3.0mm, Φ2.0mm, Φ0.9mm
PVC or LSZH

Polishing MannerUPC,SPC,APC (8°& 6°)
Insertion Loss

≤ 0.1dB (For Singlemode Master)
≤ 0.25dB (For Singlemode Standard)
≤ 0.25dB (For Multimode)
Tested by JDS RM 3750

Return Loss
(Singlemode)

UPC ≥ 50dB
SPC ≥ 55dB
APC ≥ 60dB (typ.65dB)
Tested by JDS RM3750

Repeatability±0.1dB
Operating temperature-400C to 850C

Geometry Requirement
( Singlemode)

Ferrule Endface Radius
7mm ≤ R ≤ 12mm (For APC)
10mm ≤ R ≤ 25mm (For Standard)
Apex Offset ≤ 30 μm (For Master)
Apex Offset ≤ 50 μm (For Standard)
Undercut -50nm ≤ U ≤ 50nm
Tested by DORC ZX-1


Feature:
1. Low insertion loss
2. High return loss
3. Excellent Repeatability, exchangeability, wearability and stability.

4. Environmentally Stable

Application:

1. FTTH, LAN, PON & Optical CATV, Local ring net
2. Optical fiber communication system
3. Optical fiber test equipment
4. Optical fiber sensor

5. Industry and military application

Product Picture:

2.0mm 3.0mm Fiber Optic Patch Cord LC/UPC-LC/UPC Duplex Single Mode Fiber Cable

2.0mm 3.0mm Fiber Optic Patch Cord LC/UPC-LC/UPC Duplex Single Mode Fiber Cable

2.0mm 3.0mm Fiber Optic Patch Cord LC/UPC-LC/UPC Duplex Single Mode Fiber Cable

2.0mm 3.0mm Fiber Optic Patch Cord LC/UPC-LC/UPC Duplex Single Mode Fiber Cable

FAQ:

1. Why choose TTI FIBER ?
(1) Professional manufacturer: Low MOQ, free samples are available.
(2) Quality assurance:Stable high quality.
(3) Customers solutions:Quick.
(4) Win-Win Price:Save much costs, bring more benefits for customers.
2. Do you accept OEM,ODM?
Yes, we accept them .
3.Can you print our LOGO?
Sure, Your LOGO can be printed on the boxes , or products.
4. What's the method of shipment?
We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.
5. What's the Payment?
We accept all online payments.
