Single Mode Armoured GYXTW Fiber Optic Cable 2 / 4 / 6 / 8 / 12 / 16 / 24 Core
Single Mode Armoured GYXTW Fiber Optic Cable 2 / 4 / 6 / 8 / 12 / 16 / 24 Core
Single Mode Armoured GYXTW Fiber Optic Cable 2 / 4 / 6 / 8 / 12 / 16 / 24 Core
Single Mode Armoured GYXTW Fiber Optic Cable 2 / 4 / 6 / 8 / 12 / 16 / 24 Core
Single Mode Armoured GYXTW Fiber Optic Cable 2 / 4 / 6 / 8 / 12 / 16 / 24 Core
Single Mode Armoured GYXTW Fiber Optic Cable 2 / 4 / 6 / 8 / 12 / 16 / 24 Core
Single Mode Armoured GYXTW Fiber Optic Cable 2 / 4 / 6 / 8 / 12 / 16 / 24 Core
Single Mode Armoured GYXTW Fiber Optic Cable 2 / 4 / 6 / 8 / 12 / 16 / 24 Core
Single Mode Armoured GYXTW Fiber Optic Cable 2 / 4 / 6 / 8 / 12 / 16 / 24 Core
Single Mode Armoured GYXTW Fiber Optic Cable 2 / 4 / 6 / 8 / 12 / 16 / 24 Core
Single Mode Armoured GYXTW Fiber Optic Cable 2 / 4 / 6 / 8 / 12 / 16 / 24 Core
Single Mode Armoured GYXTW Fiber Optic Cable 2 / 4 / 6 / 8 / 12 / 16 / 24 Core
Specifications
Brand Name :
TTI OR OEM
Model Number :
GYXTW
Certification :
ISO9001 / ISO14001 / ROHS
Place of Origin :
China
MOQ :
1000M
Price :
0.13
Payment Terms :
T/T
Supply Ability :
100000 PCS/Month
Delivery Time :
5-17 Days
Packaging Details :

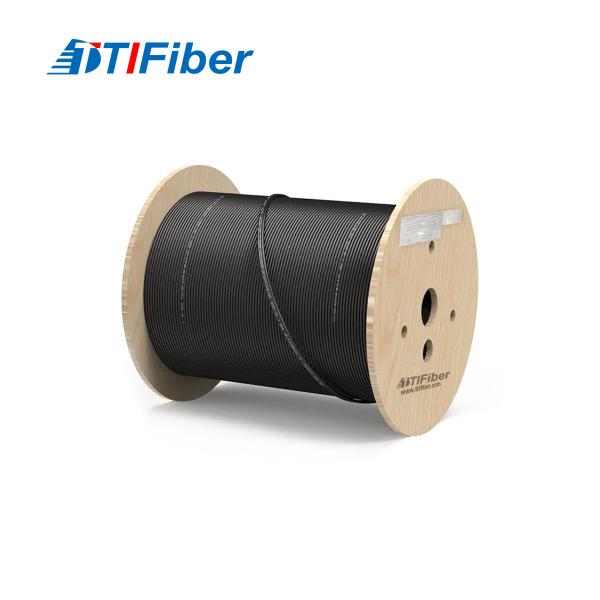

wood Drum
Product Name :
Unitube Light-armored Cable GYXTW
Application :
OUTDOOR
Cable Diameter :
100M,OEM
Strength Member :
OEM
Material :
Top
Package :
Standard
Way :
Portable
Description
2 / 4 / 6 / 8 / 12 / 16 / 24 Core Single Mode Outdoor Armoured GYXTW Fiber Optic Cable Price Per Meter
2 / 4 / 6 / 8 / 12 / 16 / 24 Core Single Mode Outdoor Armoured GYXTW Fiber Optic Cable
Product Description

Specification


Description

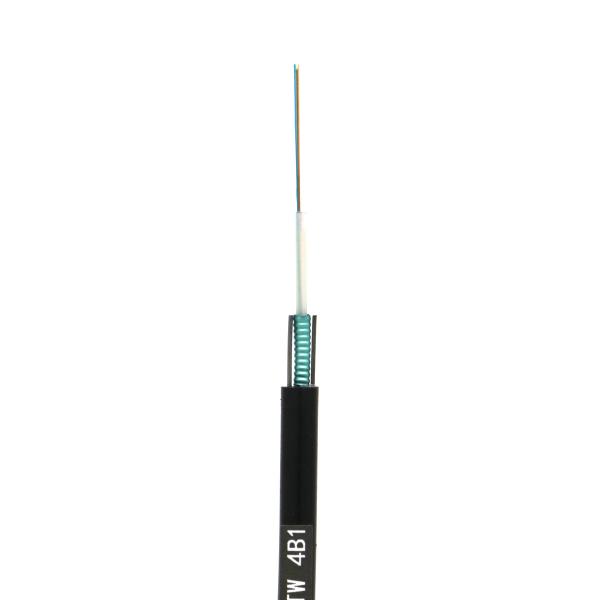

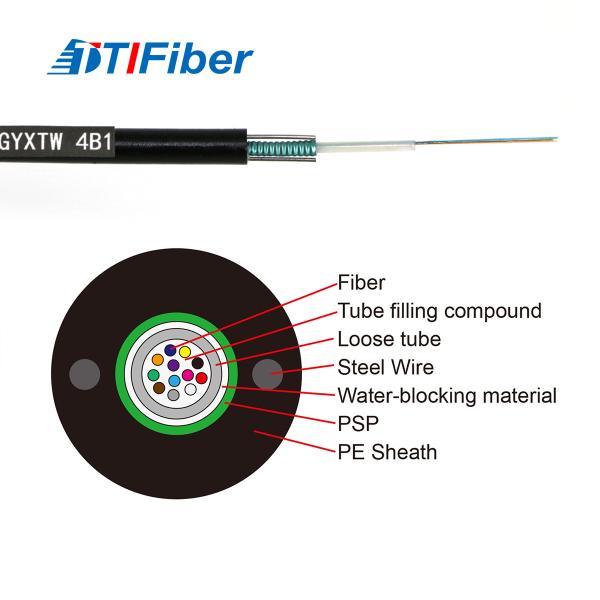

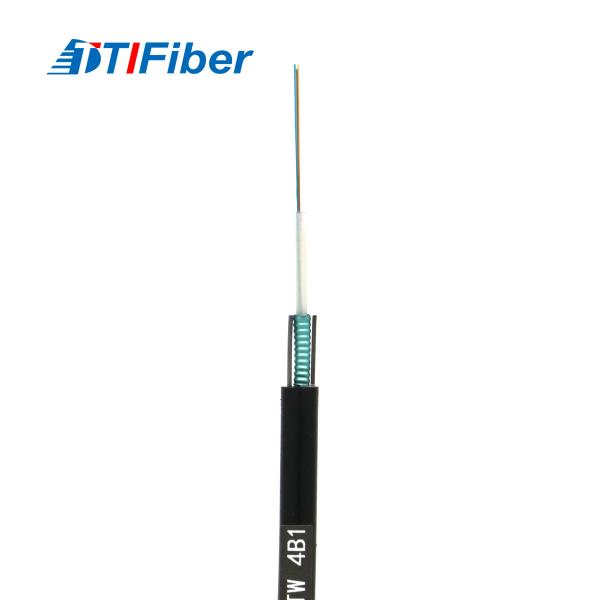

The 250μm fiber is positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The parallel steel wires are placed at the two sides tape. The cable is completed with a polyethylene (PE) sheath.

Features
1). Good mechanical and temperature performance
2). High strength loose tube that is hydrolysis resistant
3). Special tube filling compound ensure a critical protection of fiber
4). Crush resistance and flexibility
5). PSP enhancing moisture-proof
6). Two parallel steel wires ensure tensile strength
7). Small diameter, light weight and friendly installation
8). Storage / Operating Temperature: -40℃~+70℃

Application
Usable in Duct / Aerial

Parameter:

No.
Items
Unit
Specification
G.652D
1
Mode Field Diameter
1310nm
μm
9.2±0.4
1550nm
μm
10.4±0.5
2
Cladding Diameter
μm
124.8±0.7
3
Cladding Non-Circularity
%
≤0.7
4
Core-Cladding Concentricity Error
μm
≤0.5
5
Coating Diameter
μm
245±5
6
Coating Non-Circularity
%
≤6.0
7
Cladding-Coating Concentricity Error
μm
≤12.0
8
Cable Cutoff Wavelength
nm
λcc≤1260
9
Attenuation (max.)
1310nm
dB/km
≤0.36
1550nm
dB/km
≤0.24
Cable Parameters
Items
Specifications
Fiber Count
2~24
Colored Coating Fiber
Dimension
250µm±15µm
Color
Blue, Orange, Green, Brown, Gray, White
Loose Tube
Dimension
2.10mm±0.05mm
Material
PBT
Color
Natural
Strength Member
Diameter
1.0mm
Material
Steel
Outer Jacket
Dimension
8.0mm±0.1mm
Material
PE
Color
Black
Mechanical and Environmental Characteristics
Name
Outdoor Fiber Optic Cable GYTA53
With
PE, LSZH
From
TTI Fiber Factory
Certification
ISO9001
