White FTTH Fiber Optic Patchcord With OTO Terminal Box
White FTTH Fiber Optic Patchcord With OTO Terminal Box
White FTTH Fiber Optic Patchcord With OTO Terminal Box
White FTTH Fiber Optic Patchcord With OTO Terminal Box
Specifications
Brand Name :
TTI
Model Number :
OTO Terminal Box
Certification :
Standard Certification
Place of Origin :
China
MOQ :
Negociated
Price :
Negociated
Payment Terms :
L/C, D/A, D/P, T/T, ,
Supply Ability :
10000 pieces
Delivery Time :
1-3 Work Days
Packaging Details :
Standard Package(Surport OEM/ODM)
Product namee :
OTO Terminal Box
Application :
FTTH FTTB FTTX Network
Connector type :
APC/UPC
Material :
PVC/LSZH
Fiber Type :
G657A1 G656A2 G652D
Color :
Customized
Wavelength :
1310nm or 1550nm
Installation :
Wall-Mounted or Rack-Mounted
Polish :
PC/UPC/APC
Number of port :
1/2/4
Quality control :
100% test before shipping
Length :
1m 2m 3m or Customized
Description

Fiber Optic Oto Box FTTH Fiber Optic White Patchcord With OTO Terminal Box

FTTH Fiber Optic White patchcord With OTO Terminal Box

fiber optic patchcord, is a length of fiber cable fitted with LC, SC, FC,MTRJ or ST fiber connectors at each end.Fiber patchcord also come in hybrid varieties with one type of connector on one end and another type of connector on the other like this one. Jumpers are used to connect end devices or network hardware to the structured cabling system.

1. Specification:

Fiber Type
SM
MM
Normal Fiber OD
125±0.2um
125±0.2um
Connector Type
SC,FC,ST, E-2000, LC, MU, DIN
MTRJ
SC,FC,ST, E-2000, LC, MU
MTRJ
Insertion loss(Typical)
0.2dB
0.4dB
0.2dB
0.4dB
Insertion loss(Max)
0.3dB
0.5dB
0.3dB
0.5dB
Return Loss(Typical)
PC
50dB
35
UPC
55dB
APC
65dB
Mating Durability(500 C)
0.2dB
0.Temperature Stability
0.3dB
Operation Temperature
-40°C~+85°C
Storage Temperature
-40°C~+85°C

2. Feature:

1. All kinds of optical fiber patch cord, optical cable, fiber patch cord, SM & MM available.
2. Standard & custom configurations.
3. Meets Telecordia-GR-326-CORE specifications.
4. Low insertion loss.
5. Ultra low back reflection.
6. For 3.0mm, 2.4mm, 2.0mm jacket or 900μ M buffer.

3. Application:

1. FTTH, LAN, PON & Optical CATV, Local ring net
2. Optical fiber communication system
3. Optical fiber test equipment
4. Optical fiber sensor

5. Industry and military application

White FTTH Fiber Optic Patchcord With OTO Terminal Box

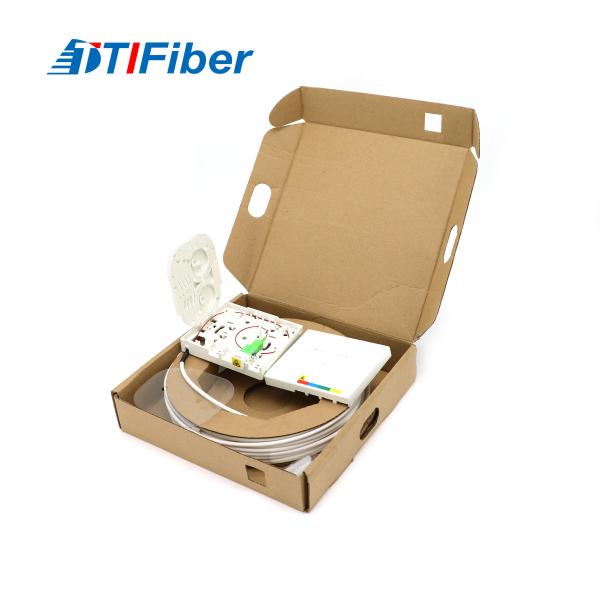

4. Product Picture:

White FTTH Fiber Optic Patchcord With OTO Terminal Box

White FTTH Fiber Optic Patchcord With OTO Terminal Box

White FTTH Fiber Optic Patchcord With OTO Terminal Box

5. FAQ:

1. Why choose TTI FIBER ?
(1) Professional manufacturer: Low MOQ, free samples are available.
(2) Quality assurance:Stable high quality.
(3) Customers solutions:Quick.
(4) Win-Win Price:Save much costs, bring more benefits for customers.
2. Do you accept OEM,ODM?
Yes, we accept them .
3. Can you print our LOGO?
Sure, Your LOGO can be printed on the boxes , or products.
4. What's the method of shipment?
We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.
5. What's the Payment?
We accept all payments , such as LC,TT,DP,DA,Paypal.
