SM Simplex G657A2 1.6mm LSZH Fiber Optic Patchcord SC/APC - SC/APC 1.5m 3.5m
SM Simplex G657A2 1.6mm LSZH Fiber Optic Patchcord SC/APC - SC/APC 1.5m 3.5m
Specifications
Brand Name :
TTI
Model Number :
SC/APC-SC/APC Fiber Optical Patch Cord
Certification :
Standard Certification
Place of Origin :
China
MOQ :
Negociated
Price :
Negociated
Payment Terms :
L/C, D/A, D/P, T/T, ,
Supply Ability :
10000 pieces
Delivery Time :
1-3 Work Days
Packaging Details :
Standard Package(Surport OEM/ODM)
Fiber type :
G652D G657A1 G657A2
Application :
FTTH FTTB FTTX Network
Connector type :
APC/UPC
Material :
PVC/LSZH
Product namee :
Fiber Optic Patch Cord
Color :
Customized
Wavelength :
1310nm or 1550nm
Fiber count :
Simplex or Duplex
Polish :
PC/UPC/APC
Type :
Single mode/Multi-mode
Quality control :
100% test before shipping
Length :
1m 2m 3m or Customized
Description

SC/APC - SC/APC 1.5m 3.5m SM Simplex G657A2 1.6mm Aqua LSZH Fiber Optic Patchcord

Fiber Optic Patch Cable is also known as fiber optic jumper or fiber optic patch cord. It is composed of a fiber optic cable terminated with different connectors on the ends. Fiber optic patch cables are used in two major application areas: computer work station to outlet and patch panels or optical cross connect distribution center. TTI fiber provides various types of fiber optic patch cables including single-mode, multimode, multi-core, armored patch cables, as well as fiber optic pigtails and other special patch cables. For most of the patch cables, the SC, ST, FC, LC, MU, MTRJ connectors (APC/UPC polish) are all available. In addition, we also have MTP/MPO cables in stock.

1. Specification:

Type

Standard,Master

Style

LC,SC,ST,FC.MU,DIN,D4,MPO, SC/APC,FC/APC,LC/APC.MU/APC

Fiber

Singlemode/Multimode
50/125, 62.5/125 (Multimode) OM2&OM1
50/125, 10G (Multimode) OM3

Cable

Simplex, Duplex
Φ3.0mm, Φ2.0mm, Φ0.9mm
PVC or LSZH

Polishing Manner

UPC,SPC,APC (8°& 6°)

Insertion Loss

≤ 0.1dB (For Singlemode Master)
≤ 0.25dB (For Singlemode Standard)
≤ 0.25dB (For Multimode)
Tested by JDS RM 3750

Return Loss
(Singlemode)

UPC ≥ 50dB
SPC ≥ 55dB
APC ≥ 60dB (typ.65dB)
Tested by JDS RM3750

Repeatability

±0.1dB

Operating temperature

-400C to 850C

Geometry Requirement
( Singlemode)

Ferrule Endface Radius
7mm ≤ R ≤ 12mm (For APC)
10mm ≤ R ≤ 25mm (For Standard)
Apex Offset ≤ 30 μm (For Master)
Apex Offset ≤ 50 μm (For Standard)
Undercut -50nm ≤ U ≤ 50nm
Tested by DORC ZX-1

2. Feature:


1. Low insertion loss
2. High return loss
3. Excellent Repeatability, exchangeability, wearability and stability.

4. Environmentally Stable

3. Application:

1. FTTH, LAN, PON & Optical CATV, Local ring net
2. Optical fiber communication system
3. Optical fiber test equipment
4. Optical fiber sensor

5. Industry and military application

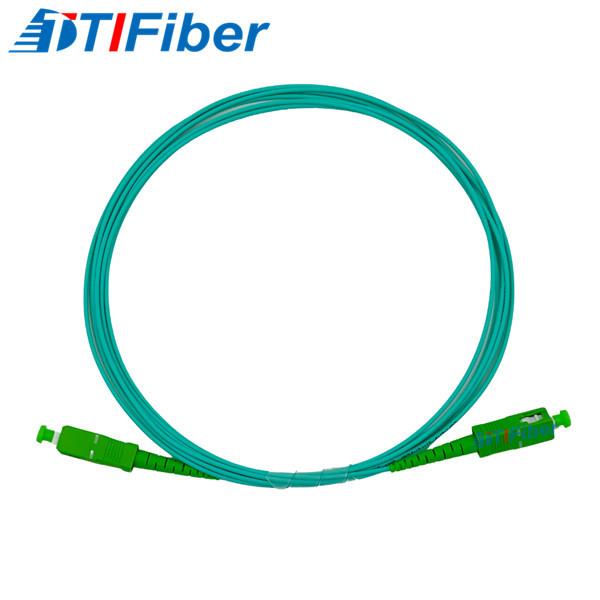

4. Product Picture:

SM Simplex G657A2 1.6mm LSZH Fiber Optic Patchcord SC/APC - SC/APC 1.5m 3.5m

SM Simplex G657A2 1.6mm LSZH Fiber Optic Patchcord SC/APC - SC/APC 1.5m 3.5m

5. FAQ:

1. Why choose TTI FIBER ?
(1) Professional manufacturer: Low MOQ, free samples are available.
(2) Quality assurance:Stable high quality.
(3) Customers solutions:Quick.
(4) Win-Win Price:Save much costs, bring more benefits for customers.
2. Do you accept OEM,ODM?
Yes, we accept them .
3. Can you print our LOGO?
Sure, Your LOGO can be printed on the boxes , or products.
4. What's the method of shipment?
We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.
5. What's the Payment?
We accept all payments , such as LC,TT,DP,DA,Paypal,,Money Gram.
