1 2 4 Core GJYXFCH G657A Aerial Self Supporting FTTH Flat Drop Cable
1 2 4 Core GJYXFCH G657A Aerial Self Supporting FTTH Flat Drop Cable
1 2 4 Core GJYXFCH G657A Aerial Self Supporting FTTH Flat Drop Cable
1 2 4 Core GJYXFCH G657A Aerial Self Supporting FTTH Flat Drop Cable
Specifications
Brand Name :
TTI OR OEM
Model Number :
GJYXFCH Fiber Optic Drop Cable
Certification :
ISO9001 / ISO14001 / ROHS / CE
Place of Origin :
China
MOQ :
1000M
Price :
Negociated
Payment Terms :
L/C, D/A, D/P, T/T, ,
Supply Ability :
10000 km
Delivery Time :
Negociated
Packaging Details :
wood Drum
Product name :
GJYXFCH Fiber Optic Drop Cable
Fiber Type :
SM,MM
Color :
Black
Material :
PE/LSZH
Wavelength :
1310nm or 1550nm
Use :
FTTX
Length :
Customizted
Quality control :
100% test before shipping
Operating temperature :
-40°C to + 70°C
Package :
Wooden Drum
MOQ :
1km
Description

GJYXFCH G657A 1/2/4 Core Aerial Self Supporting FTTH Flat Drop Cable Indoor Outdoor Fiber Optic Cable

1. Specification:

FTTH outdoor drop cable(GJYXFCH/GJYXCH) is also called self-supporting butterfly drop optical cable with a indoor butterfly cable and an additional strength member. It is for outdoor communication applications. LSZH sheath is extruded outside for application of fiber to the home.

Fiber Type Attenuation Overfilled launch Bandwidth Effective Modal Bandwidth 10GB/S Ethernet link length Min Bending Radius
Conditions 1310/1550nm 850/1300nm 850/1300nm 850nm 850nm
Unit dB/km dB/km MHZ.km MHZ.km m mm
G652D 0.36/0.22 16
G657A1 0.36/0.22 10
G657A2 0.36/0.22 7.5
50/125 3.0/1.0 ≥500/500 30
62.2/125 3.0/1.0 ≥200/500 30
OM3 3.0/1.0 ≥1500/500 ≥2000 ≥300 30
OM4 3.0/1.0 ≥3500/500 ≥4700 ≥550 30
B1-OM3 3.0/1.0 ≥1500/500 ≥2000 ≥300 7.5
B1-OM4 3.0/1.0 ≥3500/500 ≥4700 ≥550 7.5

2. Feature:

1. Special low-bend -sensitivity fiber provides high bandwidth and excellent communication transmission property
2. Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber
3. Single steel wire or massagers as the additional strength member ensures good performance of tensile strength .
4. Simple structure , light weight and high practicability
5. special flute desigh , easily strip and splice , simplify the installation and maintenance
6. Low smoke , zero halogen and flame retardant sheath

3. Application:

(1) Used in access network oras access cable from outdoorto indoor
(2) in customer premises network.
(3) Used as access building cable in premises distribution system,especially used in indooror outdooraerial access cabling.

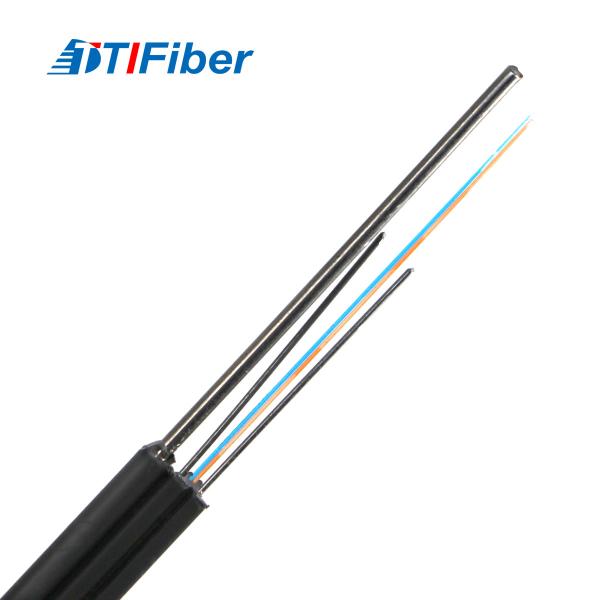

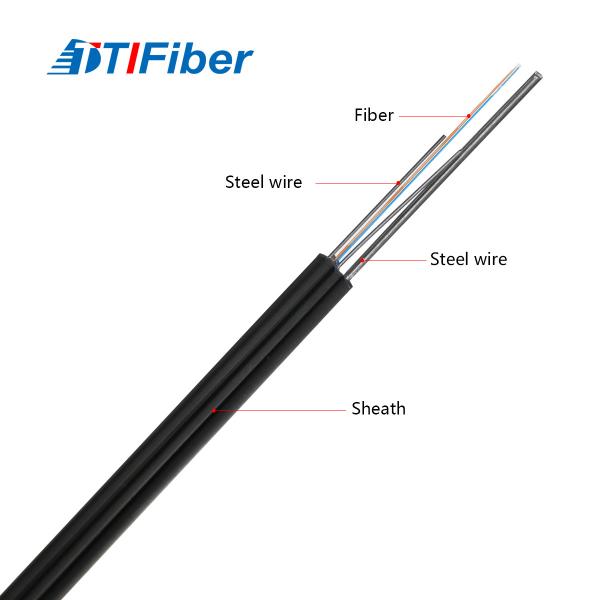

4. Product Picture:

1 2 4 Core GJYXFCH G657A Aerial Self Supporting FTTH Flat Drop Cable

1 2 4 Core GJYXFCH G657A Aerial Self Supporting FTTH Flat Drop Cable

5. FAQ:

1. Why choose TTI FIBER ?
(1)Professional manufacturer: Low MOQ, free samples are available.
(2)Quality assurance:Stable high quality.
(3)Customers solutions:Quick.
(4)Win-Win Price:Save much costs, bring more benefits for customers.


2. Do you accept OEM,ODM?
Yes, we accept them .


3. Can you print our LOGO?
Sure, Your LOGO can be printed on the boxes , or products.


4. What's the method of shipment?
We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.


5. What's the Payment?
We accept all payments , such as LC,TT,DP,DA,Paypal.
