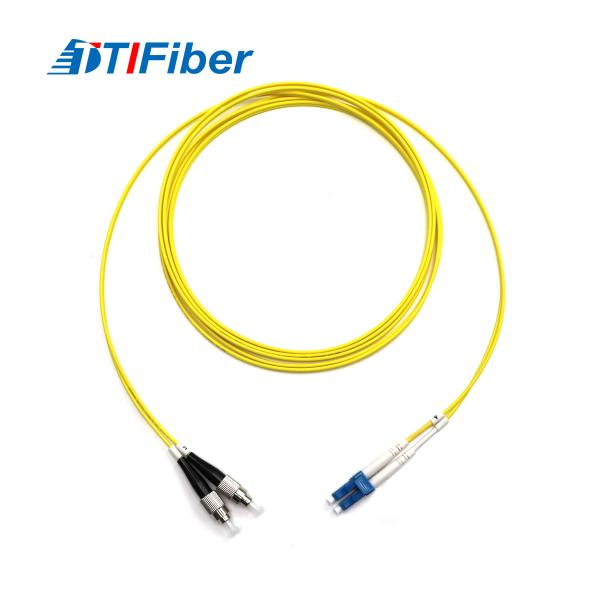

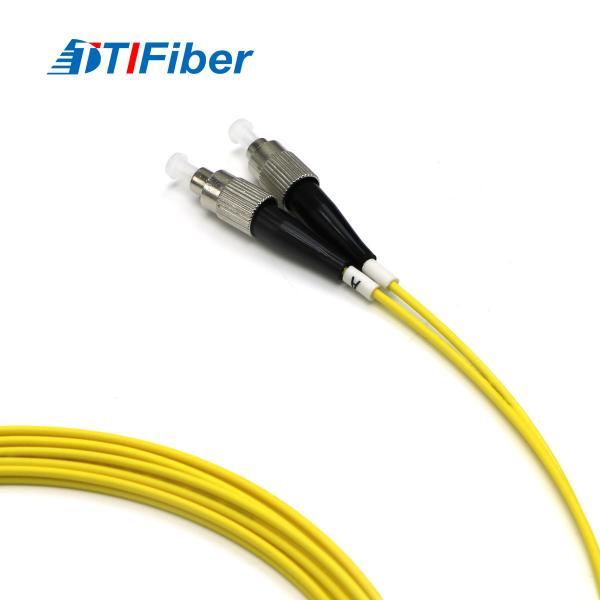

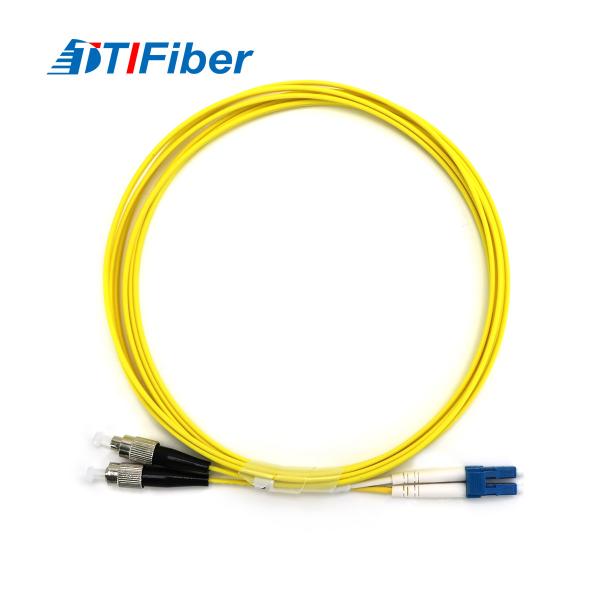

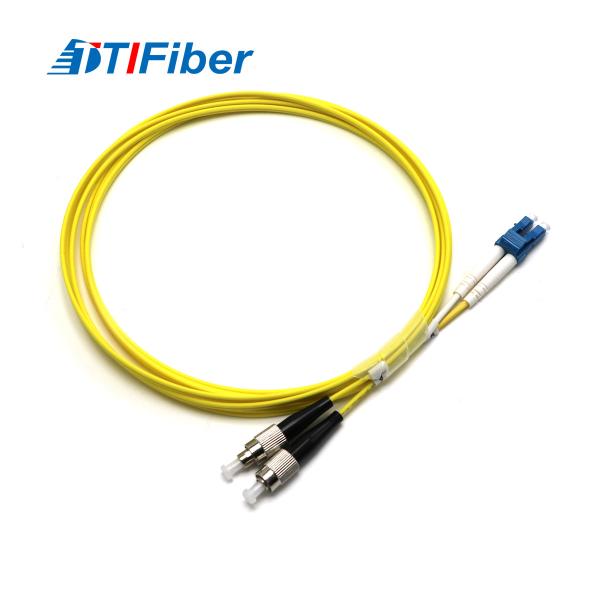

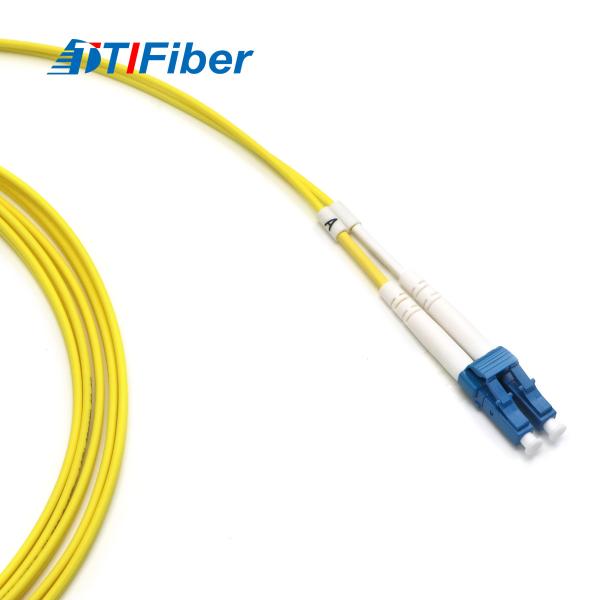

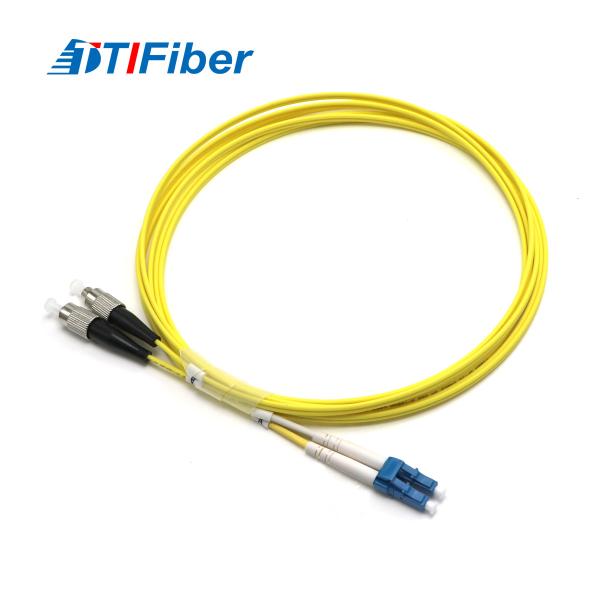

Single Mode Duplex FC-LC SM DX Fiber Optic Patch Cord PVC Jacket
Single Mode Duplex FC-LC SM DX Fiber Optic Patch Cord PVC Jacket
Single Mode Duplex FC-LC SM DX Fiber Optic Patch Cord PVC Jacket
Single Mode Duplex FC-LC SM DX Fiber Optic Patch Cord PVC Jacket
Single Mode Duplex FC-LC SM DX Fiber Optic Patch Cord PVC Jacket
Single Mode Duplex FC-LC SM DX Fiber Optic Patch Cord PVC Jacket
Single Mode Duplex FC-LC SM DX Fiber Optic Patch Cord PVC Jacket
Single Mode Duplex FC-LC SM DX Fiber Optic Patch Cord PVC Jacket
Single Mode Duplex FC-LC SM DX Fiber Optic Patch Cord PVC Jacket
Single Mode Duplex FC-LC SM DX Fiber Optic Patch Cord PVC Jacket
Single Mode Duplex FC-LC SM DX Fiber Optic Patch Cord PVC Jacket
Single Mode Duplex FC-LC SM DX Fiber Optic Patch Cord PVC Jacket
Single Mode Duplex FC-LC SM DX Fiber Optic Patch Cord PVC Jacket
Single Mode Duplex FC-LC SM DX Fiber Optic Patch Cord PVC Jacket
Single Mode Duplex FC-LC SM DX Fiber Optic Patch Cord PVC Jacket
Single Mode Duplex FC-LC SM DX Fiber Optic Patch Cord PVC Jacket
Single Mode Duplex FC-LC SM DX Fiber Optic Patch Cord PVC Jacket
Single Mode Duplex FC-LC SM DX Fiber Optic Patch Cord PVC Jacket
Specifications
Brand Name :
TTI/OEM/ODM
Model Number :
Fiber Patch Cord
Certification :
ISO, SGS, ROHS
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, L/C, PayPal, Western Union
Supply Ability :
8000 pcs/day
Delivery Time :
Depend on qty, 3-20 working Days after received the payment
Packaging Details :
PE Bag inside, then outside carton box to package
Connector Type :
FC and LC
Fiber Type :
Singlemode
Cable Type :
Duplex
Cable Jacket :
PVC outer jacket
Cable Color :
Yellow or customized
Durability :
> 1000 times
Operating Temperature :
-40°C ~ +70°C
Application :
FTTH FTTB FTTX Network, FTTA FTTH BBU RRU RRH LTE & Base station, For ODF internal link, For room equipment internal link, FTTH/Test equipments/TV/LAN/Telecommunication equipments
Length :
Any length is customizable
Polish :
PC/UPC/APC
Real factory :
Yes
Description

Superior Quality Single Mode Duplex FC-LC SM DX Fiber Optic Patch Cord Optical Fibre Cable

Fiber Connector Performance Specification:

Connector Type FC, SC, LC, ST, MU, MTRJ
Fiber Type SM(G.652D/G.657A) MM(OM1/OM2/OM3/OM4)
Ferrule End-face PC UPC APC UPC
Insertion Loss ≤0.2dB ≤0.2dB ≤0.3dB ≤0.3bB
Return Loss ≥50dB ≥55dB ≥60dB ≥35dB
Exchangeability ≤0.2dB
Repeatability ≤ 0.1dB(1000 times)
Durability > 1000 times
Operating Temperature -40°C ~ +85°C

Fiber Cable Performance Specification:

Fiber type Min. Bandwidth Distance Attenuation
62.5/125 850/1300nm
200/500 MHz/Km		 @100Mbps 2km @1Gig 220m 850/1300nm
3.0/1.0dB/km
50/125 850/1300nm
500/500 MHz/Km		 @100Mbps 2km @1Gig 500m 850/1300nm
3.0/1.0dB/km
50/125
10Gig Optimized		 850/1300nm
2000/500 MHz/Km		 @100Gig Varies by VCSEL typical 300m 2850nm 850/1300nm
3.0/1.0dB/km
9/125 1310/1550nm
Approx 100 Terahertz		 Up to 100km Varies by transceiver 1310/1550nm
0.4/0.3dB/km

Description:


Fiber optic patch cord is suitable for equipment jumper cable, cross connects, and work area connections. All fiber optic patch cords
are manufactured with telecom class and polished A, and 100% factory tested to ensure performance to standards.
Optical fiber jumper / pigtail can be divided into common single-mode and multi-mode jumpers according to different transmission
media; according to the connector structure, it can be divided into FC jumper, SC jumper, St jumper, LC jumper, MTRJ jumper, MPO
jumper, Mu jumper, SMA jumper, FDDI jumper, din4 jumper, D4 jumper and other forms.

Product Display:

Single Mode Duplex FC-LC SM DX Fiber Optic Patch Cord PVC Jacket

Single Mode Duplex FC-LC SM DX Fiber Optic Patch Cord PVC Jacket

Single Mode Duplex FC-LC SM DX Fiber Optic Patch Cord PVC Jacket

Single Mode Duplex FC-LC SM DX Fiber Optic Patch Cord PVC Jacket

Single Mode Duplex FC-LC SM DX Fiber Optic Patch Cord PVC Jacket

Single Mode Duplex FC-LC SM DX Fiber Optic Patch Cord PVC Jacket


Product Features:

1). Low insertion loss
2). Low back reflection loss
3). Custom defined specifications
4). Easy installation
5). Environmentally stable


Product Application:


1). Telecommunications
2). Local area network
3). Fiber to the home
4). Video transmission
5). Fiber optic sensing
6). Testing instruments
7). CATV

Company Certificate:

Single Mode Duplex FC-LC SM DX Fiber Optic Patch Cord PVC Jacket

About our company:

Shenzhen TTI Fiber Communication Tech. Co., Ltd. Is a high-tech enterprise specialized in fiber optic cable assemblies and optical fiber communication devices production, development and sales.

Our company established a set of strict quality assurance system and obtained ISO9001, ISO4001 international quality system certificate.

Our main products are Fiber optic cable, Fiber optic patch cord, fiber optic pigtail, fiber optic adapter, fiber optic attenuator, PLC splitter, fiber optic patch panel and much more FTTH products.

We not only offer OEM service but also help many partners from all over the world to win in the market with professional technical support, excellent product solution, competitive prices, fast delivery and good service.

Through our quality assurance program we give you outstanding quality of fiber optic cable assemblies. Quality has always made TTI Fiber stand out and it is essential to the company success.

Our key objective is to solve our customers and technical challenges by working in partnership to design and manufacture outstanding products. We strive for 100% customer satisfaction.

TTI Fiber provides qualified technical solutions and immediate service response when you need it the most.We not only sell products. We are offering good service and professional support.

Choose TTI, to make your Internet Expedite!

FAQ:

1. Why choose TTI FIBER ?
(1) Professional manufacturer: Low MOQ, free samples are available.
(2) Quality assurance: Stable high quality.
(3) Customers solutions: Quick.
(4) Win-Win Price: Save much costs, bring more benefits for customers.

2. Do you accept OEM,ODM?
Yes, we accept them .

3. Can you print our LOGO?
Sure, Your LOGO can be printed on the boxes, or products.

4. What's the method of shipment?
We accept all shipment, such as Delievery, ocean transport, land transport, airport transport.
